06B109108E Toothed Belt Guard
- 06B109108ANot stocked
Nov 2002 - 06B109108CNot stocked
May 2005 - 06B109108EThis pageNot stocked
Nov 2006 - 06B109108FDiscontinued
Mar 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

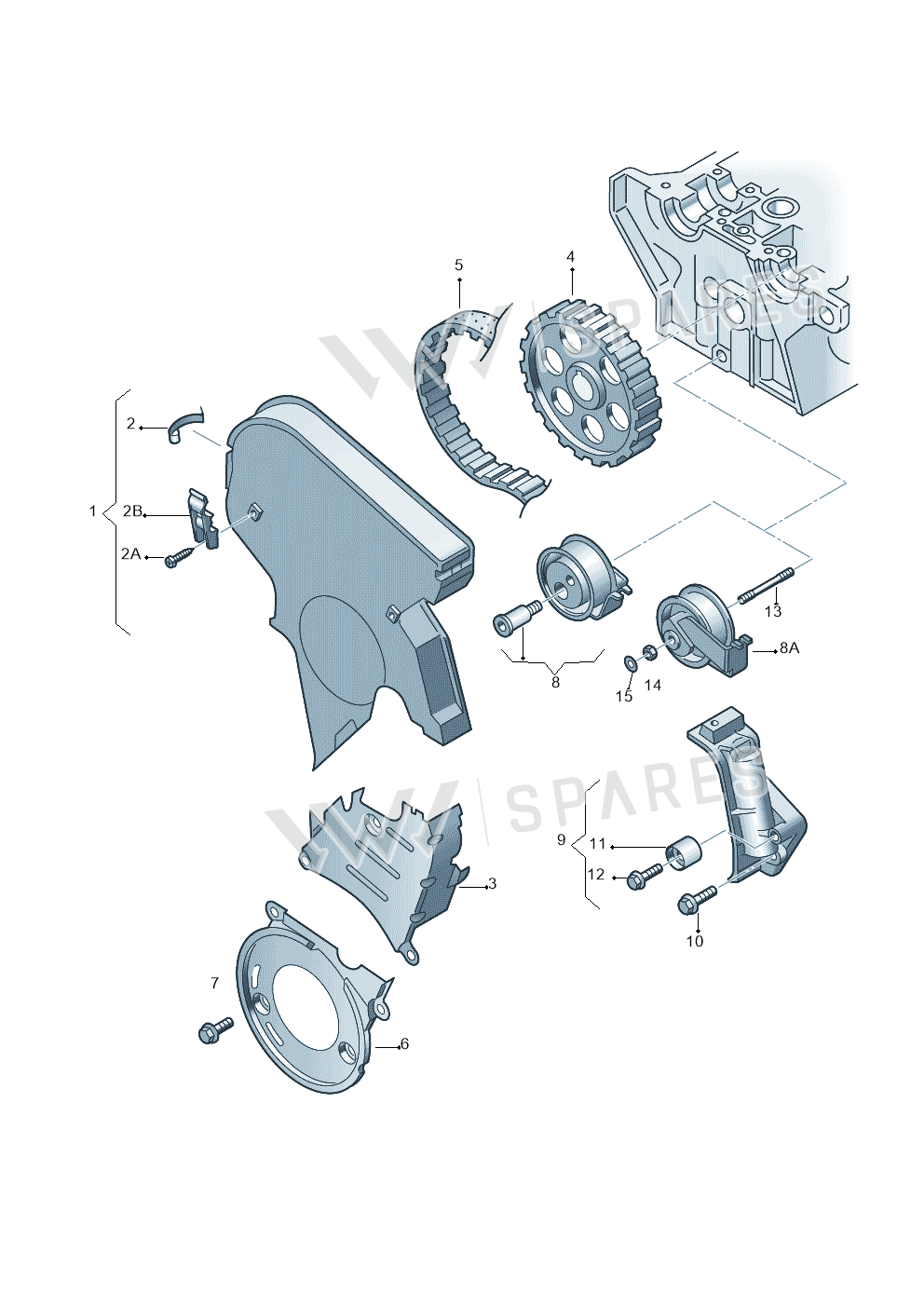

4 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Protection 06A109108K
- 2Clip 048109150
- 2AScrew N0139655
- 2BClip 058109179B
- 3Protection 06A109147F
- 5Tooth Belt 06B109119F
- 6Protection 06A109175B
- 7Bolt N10051504
- 8Tens Roll 06B109243D
- 8ATens Roll 06A109243A
- 9Holder 06A109181
- 9B Tensionr 06B109477
- 10Bolt N90945002
- 11Roller 06B109244
- 13Bolt 06B109166
- 14Washer N0152782
- 15Hexagon Nut N01100830
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| SUPERB 02> | 2001- | 1 | 1 | |
| Passat/4Motion/W8 | 2000-2002 | 1 | 1 | T6V |
| Audi A4/Avant | 1999-2001 | 1 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: SUPERB 02> 2001-; Passat/4Motion/W8 2000-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001.
