06B121065AC Coolant Pipe
- 06B121065DNot stocked
Jun 2002 - 06B121065ACThis pageDiscontinued
Mar 2021
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 355 g
- Shipping size (L × W × H)
- 34.5 × 18.5 × 11.5 cm
- Country of origin
- Czechia
- Customs (HS) code
- 87089199

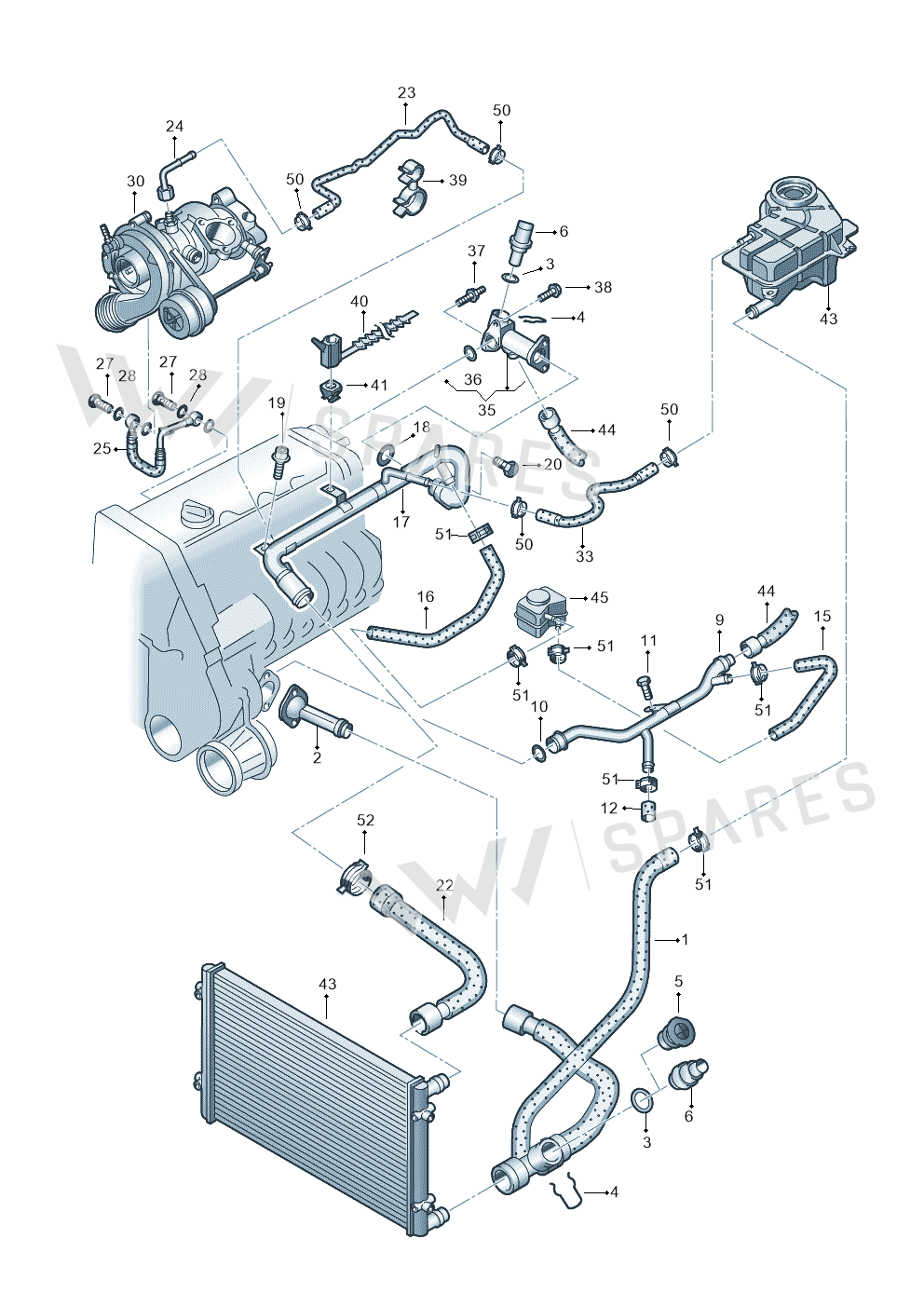

Parts diagram & fitment
16 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Hose 4B0121055J
- 3Seal Ring N90316801
- 4Spring 032121142
- 5Bungs 357121140
- 10Seal Ring N90365302
- 11Bolt N01023911
- 12Part 078133335A
- 15Hose 06B121058
- 16Hose 06B121058S
- 17Water Pipe 06B121071L
- 18Seal Ring 058121687
- 19Screw N10248003
- 20Bolt N90529301
- 22Hose 8D0121101K
- 23Hose 058121471B
- 25Hose 06B121497F
- 27Screw 06A145541J
- 28Seal Ring N0138495
- 35Flange 058121132C
- 36Seal Ring 037121687
- 37Bolt N91148001
- 38Bolt N0902619
- 40Cable Tie N90643701
- 41Clip N90847501
- 50Clamp N90655301
- 51Clamp N90655501
- 52Clamp N90687201
Vehicle fitment table16
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 9 | 1 | MW8,MW9 | |
| SUPERB 02> | 2001- | 9 | 1 | ||
| Audi A6/Wagon/quattro | 2001-2004 | 9 | 1 | T6V | |
| PASSAT 00> | 2000- | 9 | 1 | G0C,G0F,MW8 | |
| Passat/4Motion/W8 | 2000-2002 | 9 | 1 | MW8,MW9 | |
| Audi A4/Avant | 1999-2001 | 2, 9 | 1 | ||
| Audi A4/Av.qu. | 1999-2001 | 9 | 1 | AWT,AWM | |
| Audi A6/Avant | 1997-2001 | 9 | 1 | AJP,AQE,ARH | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 9 | 1 | AWT | |
| Passat | 1997-2000 | 2 | 1 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 2 | 1 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 2 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 9 | 1 | BGC | G0C,G0F,MW8 |
| AUDI A6L CHINA | 1999-2005 | 9 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 9 | 1 | |||
| 3B0 platform | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Audi A6/Wagon/quattro 2001-2004; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; PASSAT LINGYU "CN."06> 2005-; AUDI A6L CHINA 1999-2005; 3B0 platform.
