06B133356G Air Guide
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

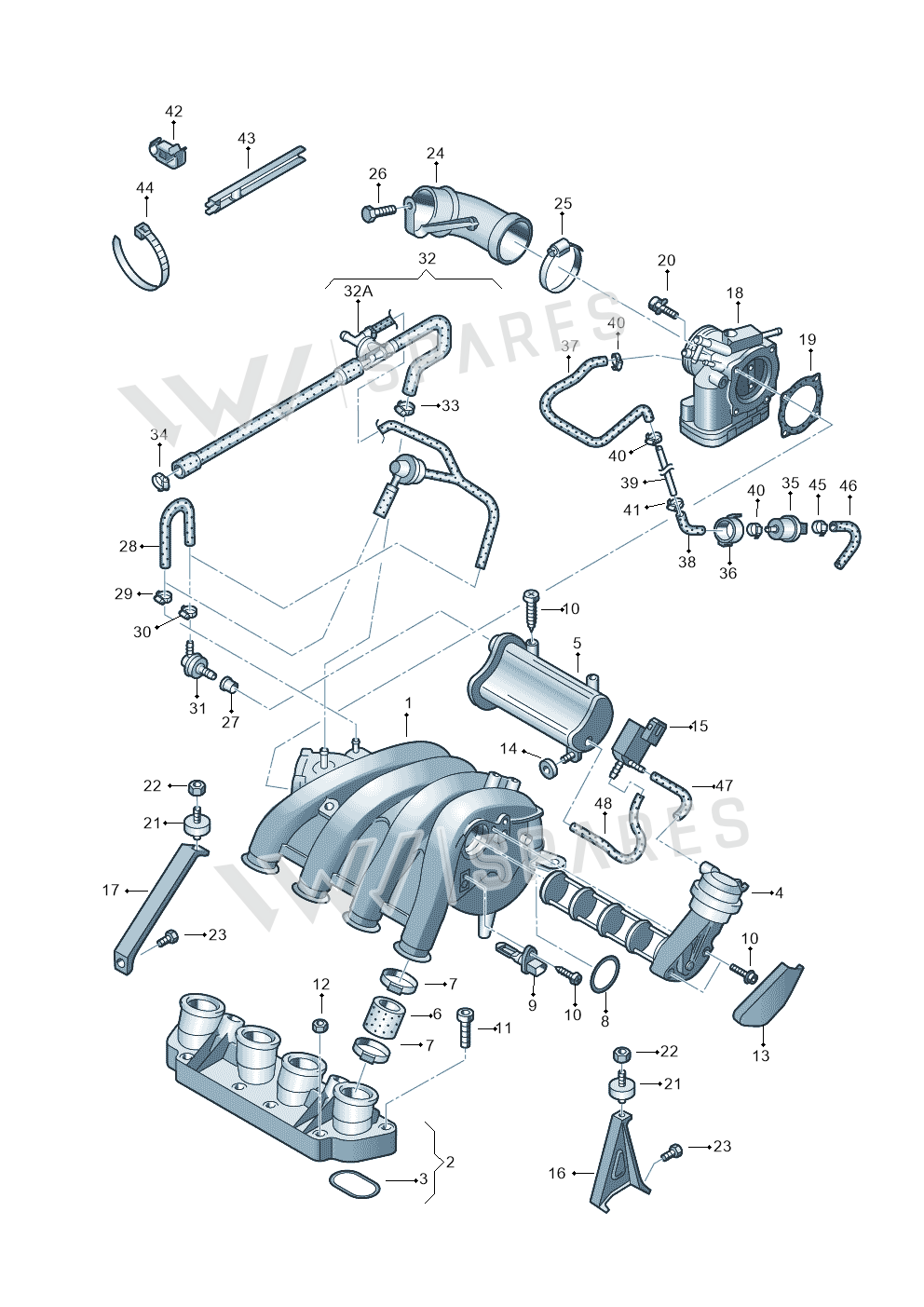

4 vehiclesAir Guide — locate Air Guide in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Manifold 06B133213J
- 2Carrier 06B133216G
- 3Seal 058129717C
- 4Drive 06B133619C
- 5Tank 06B133909
- 6Coupl Piece 06B133299C
- 7Clip 06B133301A
- 8Seal Ring 058133148A
- 9Temperature Sensor 06B905379D
- 10Bolt 058133479A
- 11Screw N90338202
- 12Collar Nut N01508213
- 14Rubber Bush 06B133877
- 15Valve 037906283C
- 16Support 06B129723BJ
- 17Support 06B129723AP
- 18Adapter 06B133062H
- 19Seal Ring 058133557
- 20Screw N10080202
- 21Rubber Bush 06F121273
- 22Collar Nut N10340101
- 23Bolt N10063202
- 25Clamp N90656201
- 26Bolt N0902322
- 27Grommet 431820667
- 28Hose 06B133241BA
- 29Clamp N10233401
- 31Valve 058905291A
- 32Pump 06B133751AL
- 32AHose 06B133739D
- 33Clamp N90655401
- 34Clamp N90770201
- 35Valve 058133517B
- 36Thrustring 058133459F
- 37Hose 06B133784AB
- 38Hose 06B133366E
- 39Pipe 06B133366D
- 41Clamp N90686701
- 42Clip 4D0201278Q
- 43Binder 4A0820199
- 44Cable Tie N90666101
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 24 | 1 | |
| Audi A4/S4/Av./qu. | 2001-2004 | 24 | 1 | |
| Audi A6/Wagon/quattro | 2001-2004 | 24 | 1 | |
| Passat/4Motion/W8 | 2000-2002 | 24 | 1 | MW |
Diagrams & fitment data powered by oemdiagrams.com
Air Guide is fitted on: PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Passat/4Motion/W8 2000-2002.
