Coolant Pipe exploded parts diagram — AUDI A4/AV./QU. "CN"03>05 · 2003-2005, position 20
Exploded view
AUDI A4/AV./QU. "CN"03>05 · 2003-2005 · position 20Full diagram ↓
06C121085F

06C121085F Coolant Pipe

£168.06
£138.89 excl. VAT
Supersession roadforks into 6
  1. 06C121085ENot stocked
    Aug 2003
  2. 06C121085FThis pageNot stocked
    Jan 2006
  1. 06C121085HCurrent number
  2. 06C121188BDiscontinued
    May 2025
  3. 06E121119ACurrent number
  4. 06C121119ACurrent number
  5. N90666101Current number
  6. N90765301Current number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

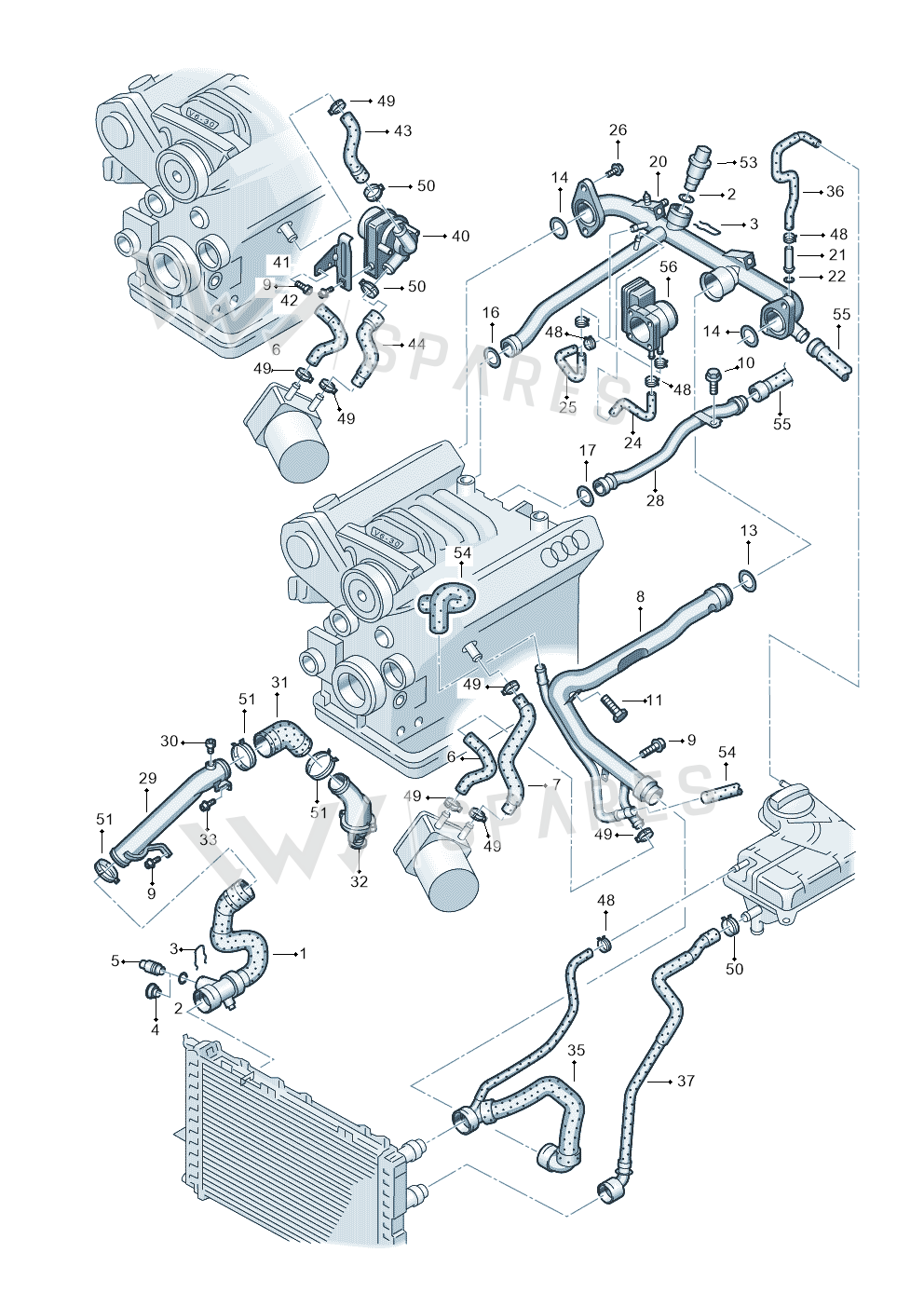

Coolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly36
Vehicle fitment table1

Other markets (1)

VehicleYearsPos.Qty
AUDI A4/AV./QU. "CN"03>052003-2005201

Diagrams & fitment data powered by oemdiagrams.com

Coolant Pipe is fitted on: AUDI A4/AV./QU. "CN"03>05 2003-2005.
