06D109309F Tappets
- 06D109309FThis pageNot stocked
Mar 2009 - 06D109309CNot stocked
Sep 2024 - 06D109309JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

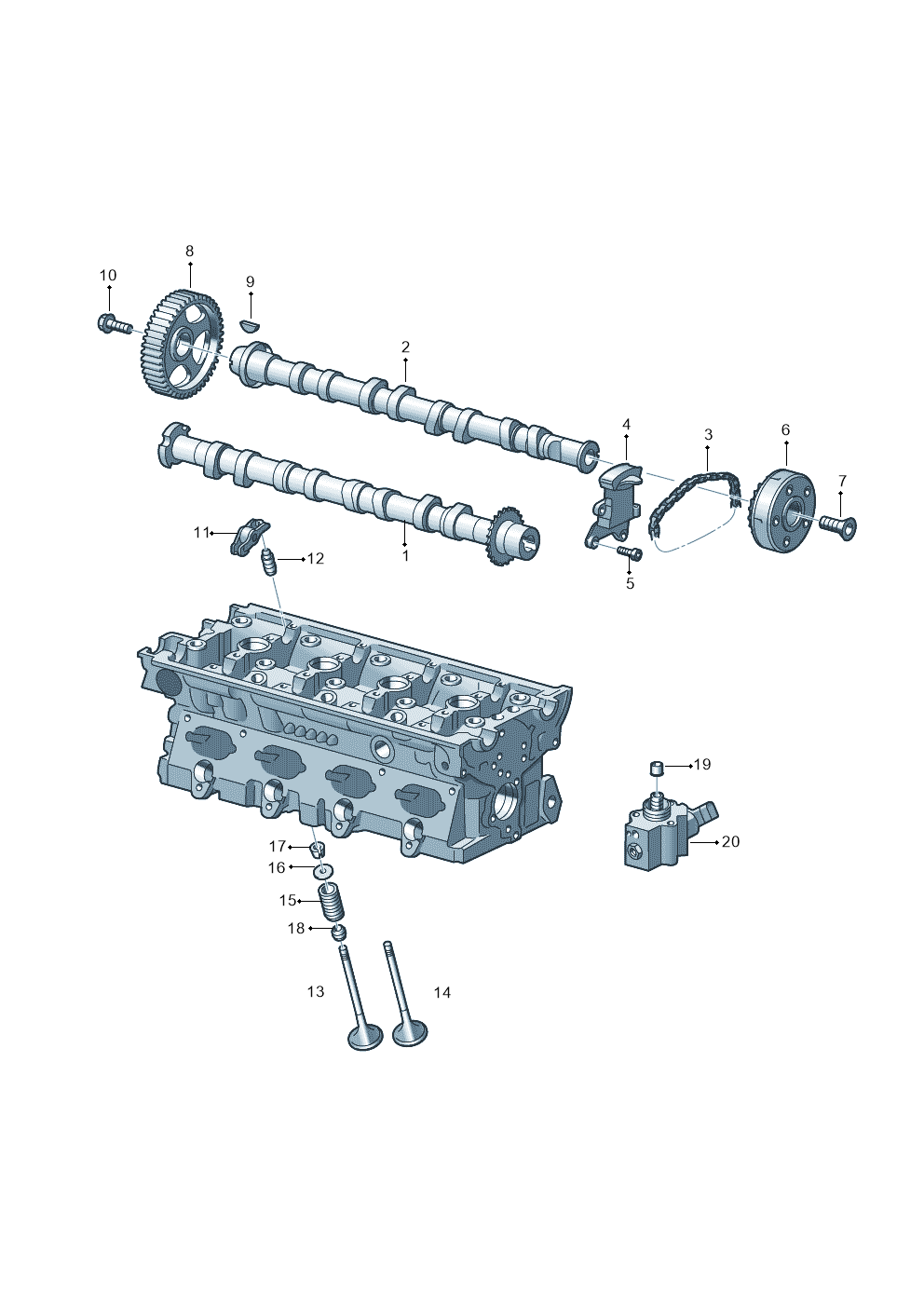

10 vehiclesTappets — locate Tappets in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Camshaft 06D109101AM
- 1Camshaft 06D109101AL
- 2Camshaft 06D109102AJ
- 2Camshaft 06D109102AK
- 3Timing Cha 06D109229B
- 4Tensioner 06F109217A
- 5Screw N10196303
- 6Adjuster 06F109088J
- 7Screw 06D109281D
- 8Pulley 06D109111B
- 9Spring N0127082
- 10Bolt N90987902
- 11Roller Roc 06E109417F
- 12Equal Element 022109423D
- 13Valve 06D109601K
- 14Valve 06D109611L
- 15Spring 06D109623C
- 15Spring 06E109623H
- 16Springseat 058109641
- 16Springseat 06E109641A
- 17Cotter Pin 036109651A
- 18Seal 036109675A
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Passat/4Motion 08 | 2007- | 19 | 1 | BVX,BVZ,BVY | T58 |
| EOS-Cabriolet-Coupe | 2006- | 19 | 1 | BVY,BVZ | |
| ALTEA 07> | 2006- | 19 | 1 | BVY,BVZ | D2Z |
| LEON 06> | 2005- | 19 | 1 | BLY,BLR,BVY, | |
| Passat/4Motion | 2005-2007 | 19 | 1 | BLX,BVX,BLY, | BV |
| Audi A3/S3/quattro | 2005-2007 | 10 | 1 | D2T,D2Z | |
| TOLEDO 05> | 2004- | 19 | 1 | BLY,BLR,BVY, | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 19 | 1 | ||
| ALTEA | 2004-2006 | 19 | 1 | BLY,BLR,BVY, | |
| TOURAN | 2003-2005 | 19 | 1 | D2T |
Diagrams & fitment data powered by oemdiagrams.com
Tappets is fitted on: Passat/4Motion 08 2007-; EOS-Cabriolet-Coupe 2006-; ALTEA 07> 2006-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; TOURAN 2003-2005.
