06D127248 O-Ring
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

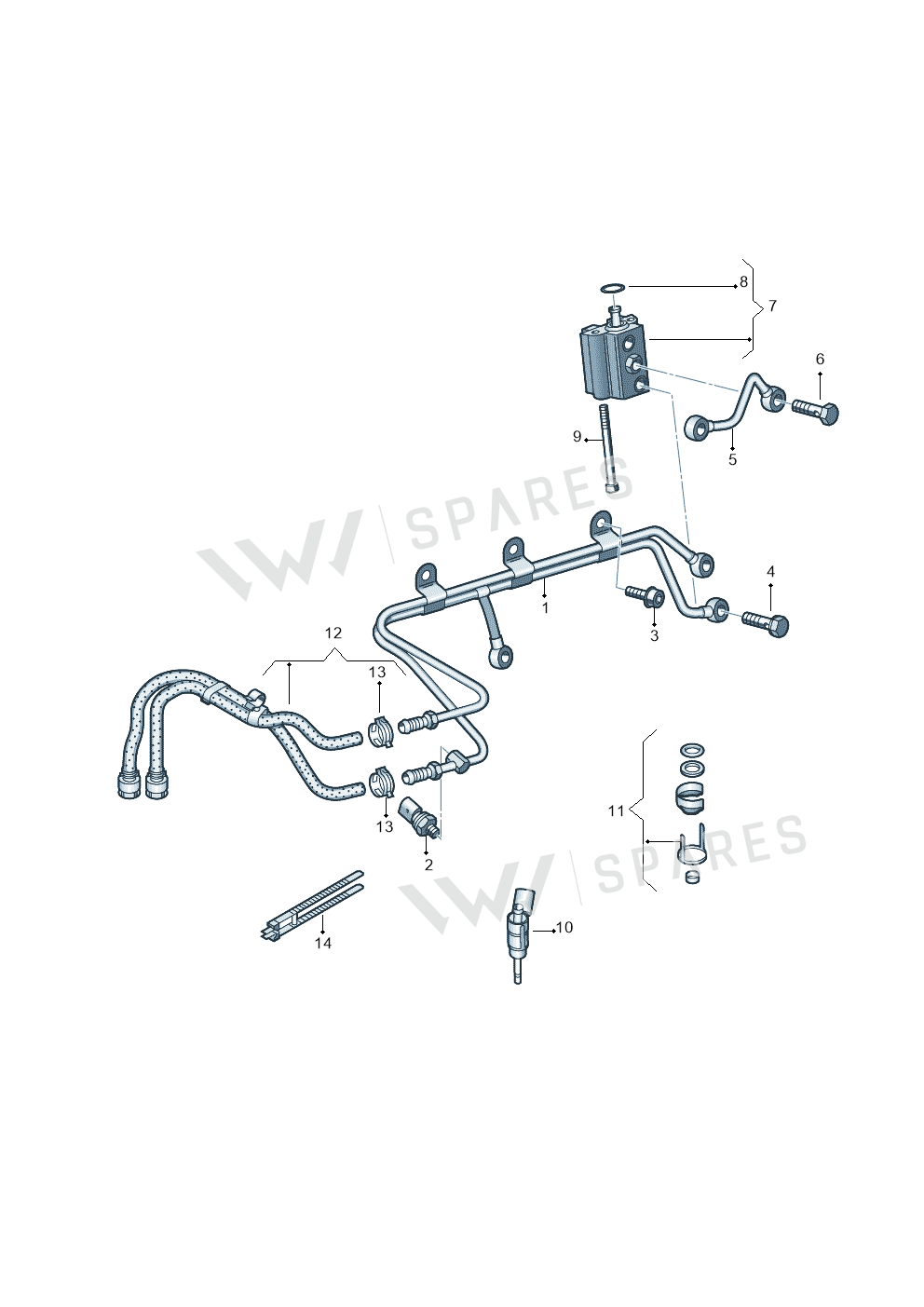

2 vehiclesO-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Fuel Line 06F127509J
- 1Fuel Line 06F127509N
- 1Fuel Line 06F127509P
- 2Sensor 03C906051A
- 2Sensor 06E906051J
- 3Screw N10347003
- 4Screw WHT000285C
- 5Fuel Line 06D127501G
- 5Fuel Line 06D127501N
- 5Fuel Line 06D127501P
- 7Pump 06D127026J
- 7Pump 06F127025D
- 8Seal Ring 03C127311
- 8Seal Ring WHT005184
- 9Screw N10547501
- 10Valve 06F906036D
- 10Valve 06F906036
- 11Repair Kit 06D998907
- 12Pipe 1K0133986AA
- 12Fuel Line 1K0133986AL
- 13Clamp N90986501
- 14Binder 4A0820199
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TOURAN | 2003-2005 | 8 | 1 |
| GOLF | 2003-2005 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
O-Ring is fitted on: TOURAN 2003-2005; GOLF 2003-2005.
