06D145701JX Exhaust Manifold With Turbocharger
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

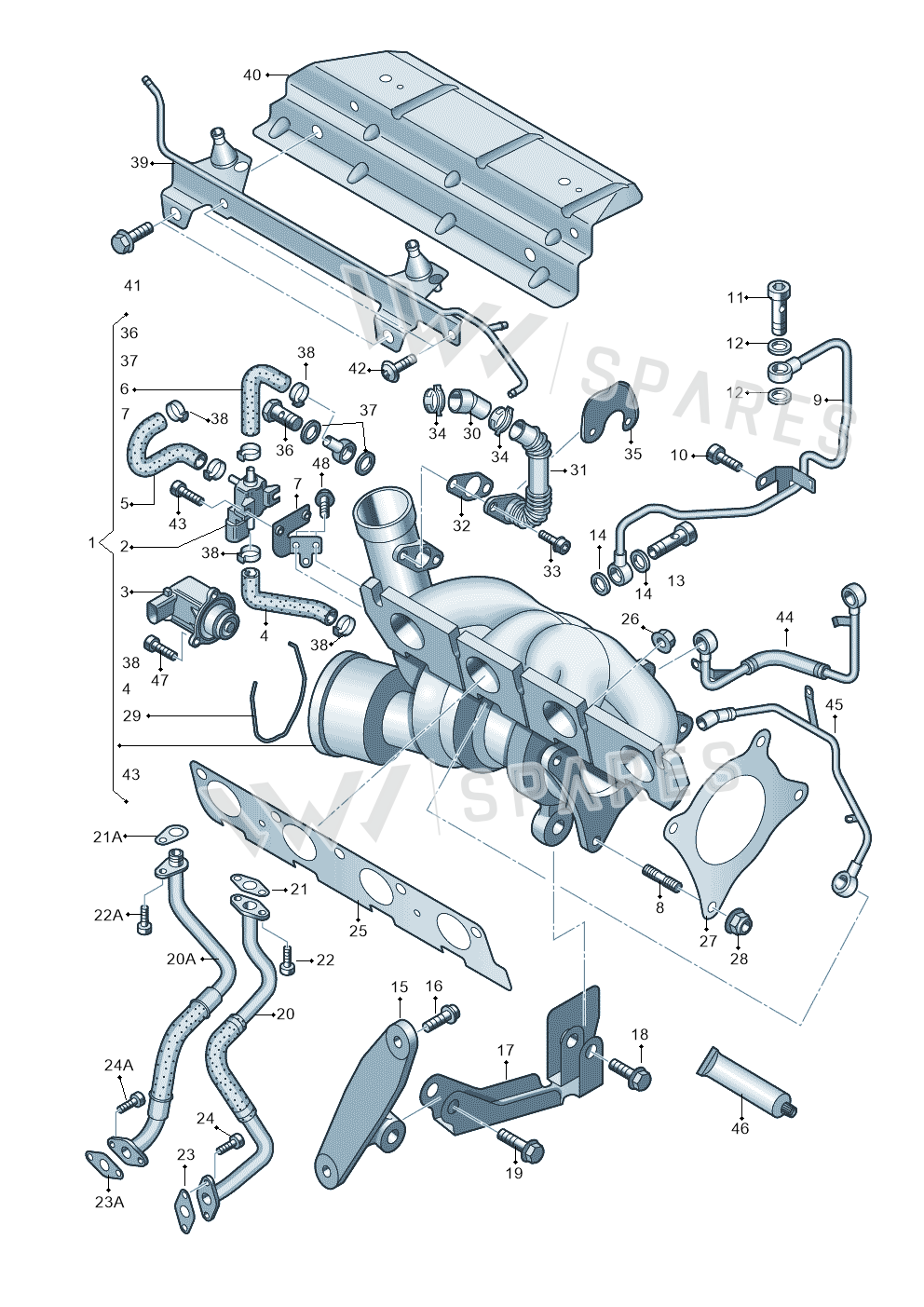

5 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Turbo 06D145701J
- 2Valve 06F906283F
- 3Part 06F145710G
- 3Part 06H145710D
- 4Hose 06D145718M
- 5Hose 06F145718Q
- 6Hose 06F145718R
- 7Bracket 06F103943F
- 8Bolt N0445203
- 9Oil Pipe 06D145778C
- 10Screw N01470213
- 11Screw WHT000223
- 12Seal Ring N0138514
- 15Support 06D145533B
- 16Screw N90331605
- 17Support 06D145536B
- 18Screw N91103701
- 19Screw N90292903
- 20Oil Pipe 06D145735B
- 21Seal 06F145757H
- 23Seal 058145757A
- 24Screw N10613601
- 25Seal 06F253039F
- 26Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 27Seal 8E0253115D
- 28Ut Hexagon Nut Self-locking Hexagon Nut N90369001
- 30Coupl Piece 06D133299C
- 31Pipe 06D103213G
- 32Seal 06D131550D
- 33Screw N10347003
- 34Clip N90409601
- 36Screw N91043801
- 37Seal Ring N0138302
- 38Clamp N10203601
- 40Cover 06D129597D
- 41Bolt N10265202
- 42Screw N10303606
- 43Screw N10459201
- 46Paste G052112A3
- 47Bolt N10546404
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 1 | 1 | T61 |
| Exeo ST Reference | 2008-2011 | 1 | 1 | D2L |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 1 | 1 | T61 |
| Audi A4/S4/Av./qu. 05> | 2005- | 1 | 1 | T61 |
| Audi A6/S6/Avant/qu. 05> | 2004- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Audi A6 2.7 TDI 2008-2011; Exeo ST Reference 2008-2011; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-.
