06E103149AD Cylinder Head Gasket
- 06E103149ADThis pageNot stocked
Sep 2011 - 06E103149AGSuperseded
May 2021 - 06E103149BBCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

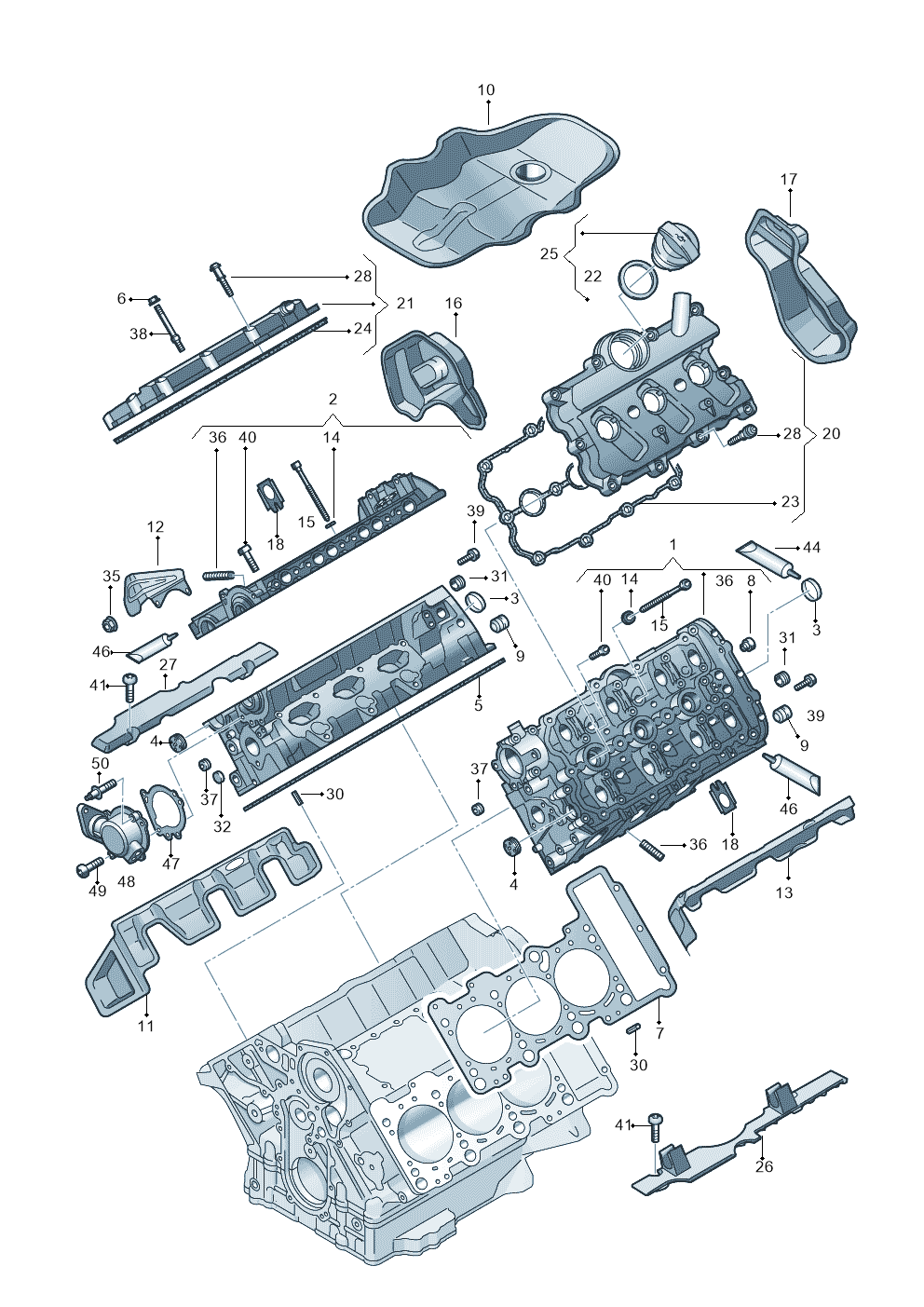

5 vehiclesCylinder Head Gasket — locate Cylinder Head Gasket in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 2Cylinder Head 06E103065C
- 2Cylinder Head 06E103066C
- 3Cover 036103113A
- 4Cover 06B103113C
- 5Seal 06E103148AD
- 6Part 06E103239E
- 8Nozzle 06E103154C
- 9Valve 06E103175A
- 10Insulation 06E103977B
- 11InsulationRight06E103978B
- 12Cover 06E103177A
- 13InsulationLeft06E103979B
- 14Washer 06D103377
- 15Bolt 06E103385
- 16InsulationRight06E103980B
- 17InsulationLeft06E103981B
- 18Partition 06E103411B
- 20Cover 06E103471P
- 21Cover 06E103472N
- 22Seal 036115111B
- 23Seal 06E103483P
- 24Seal 06E103484N
- 25Cover 06C103485N
- 26Cover 06E103935A
- 27Cover 06E103936A
- 28Bolt 06B103831J
- 30Part 055105277
- 31Bungs 07L109291
- 32Cover N0119078
- 35Collar Nut N01508213
- 36Bolt N0145555
- 37Screw N0294542
- 38Collar Nut N10609203
- 39Screw N10470705
- 40Bolt N91127602
- 41Screw N10727301
- 44Locking D000600A2
- 46Seal D174003A2
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A5 Cabrio 2.0 | 2008-2012 | 7 | 1 | D11 |
| Audi A6 2.7 TDI | 2008-2011 | 7 | 1 | D12 |
| Audi A5/S5 Coupe 08> | 2007- | 7 | 1 | D11 |
| AUDI A6 QU.ALLROAD 07> | 2006- | 7 | 1 | D12 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head Gasket is fitted on: Audi A5 Cabrio 2.0 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; AUDI A6 QU.ALLROAD 07> 2006-; AUDI A6L "CN"05> 2005-.
