06E103565 Cover
- 06E103565This pageNot stocked
Sep 2016 - 06E103565CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

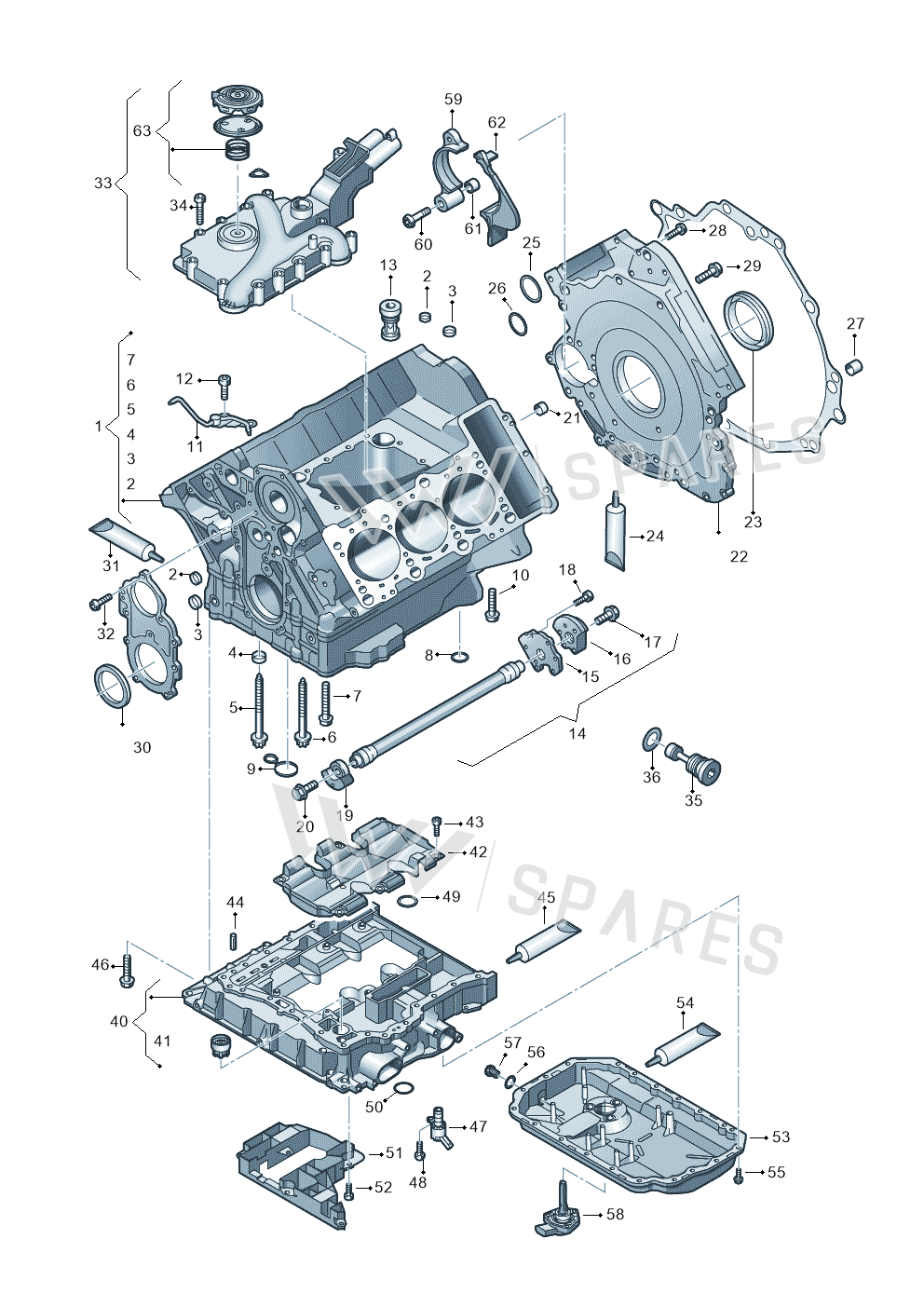

7 vehiclesCover — locate Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 06E103011BS
- 2Cover N01190310
- 3Cover N0119047
- 4Sleeve 077115143D
- 5Bolt WHT002949
- 6Bolt WHT002671A
- 7Screw N91199101
- 8Seal Ring 06E103181N
- 9Seal Ring 06E103181M
- 10Screw N10741802
- 11Vent 06E103158K
- 11Vent 06E103158M
- 12Bolt N10451407
- 13Screw 06E103271A
- 14Shaft 06E103273AC
- 15Cover 06E103407F
- 16Weight 06E103331L
- 17Bolt N90893202
- 18Bolt N10451409
- 19Weight 06E103332H
- 20Bolt N10768201
- 21Sleeve 022103139B
- 22Flange 06E103171BH
- 23Seal 06E103051J
- 23Seal 079103051F
- 24Seal D174003A2
- 25Seal 06E103181K
- 26Seal 06E103181L
- 28Bolt N10750301
- 29Bolt N10750801
- 29Bolt N10750901
- 30Flange 06E103153E
- 32Bolt N91071701
- 33Trim 06E103547L
- 33Trim 06E103547AH
- 33Trim 06E103547H
- 33Repair Kit 06E103772G
- 34Bolt N10156207
- 35Screw WHT000399
- 36Seal Ring 06C115444
- 40Oil Sump 06E103601AP
- 41Valve 06E103175A
- 42Lock 06E103623K
- 43Bolt N10451401
- 44Part 055105277
- 46Screw N10689302
- 47Part 06E115243G
- 48Bolt N10405604
Vehicle fitment table7
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 62 | 1 | D08 | |
| Audi A7 Sportback | 2010-2015 | 35, 62 | 1 | CGXB | D18 |
| audi a6 2.0 tdi | 2010-2015 | 62 | 1 | CTUA | 7GB |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 35 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 35 | 1 | DC0 | |
| AUDI A4 08> | 2007- | 35 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4L 2.0 | 2008-2012 | 35 | 1 | CGXB | D08 |
Diagrams & fitment data powered by oemdiagrams.com
Cover is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi Q5 qu. 2.0 TDI 2008-2012; AUDI A4 08> 2007-; Audi A4L 2.0 2008-2012.
