Product overview

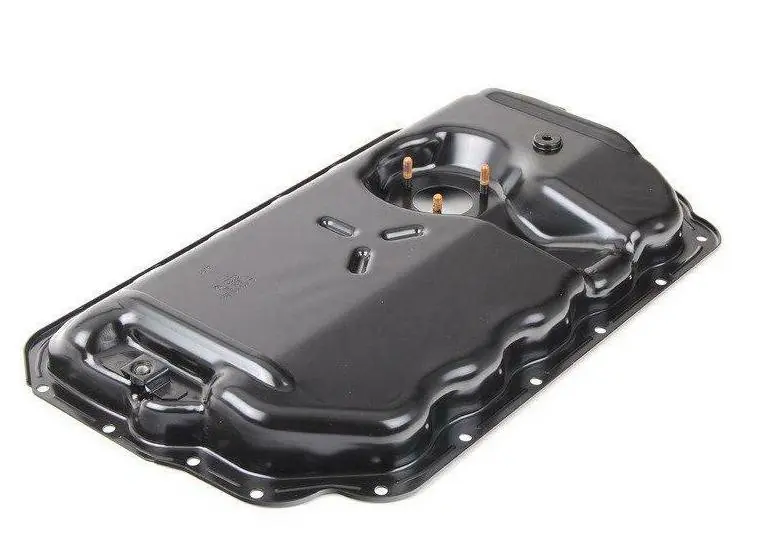

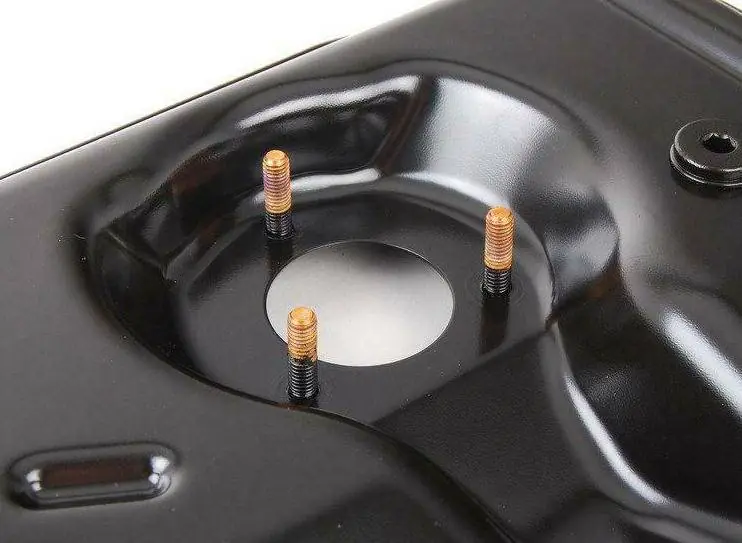

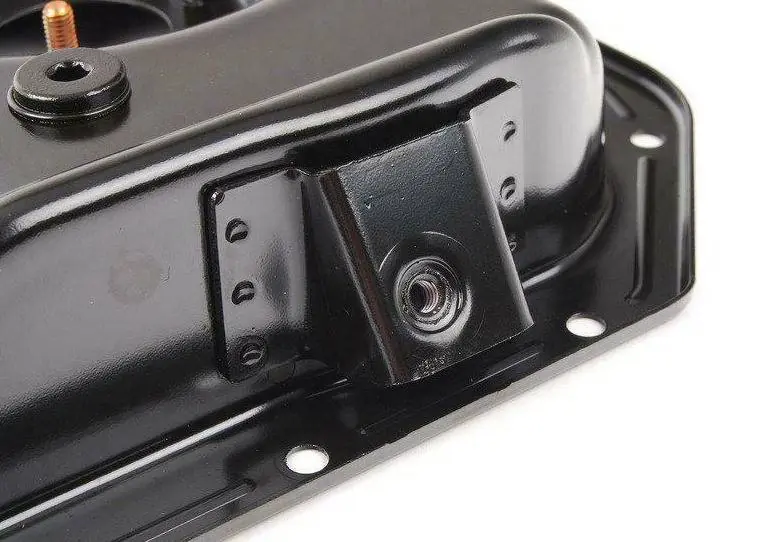

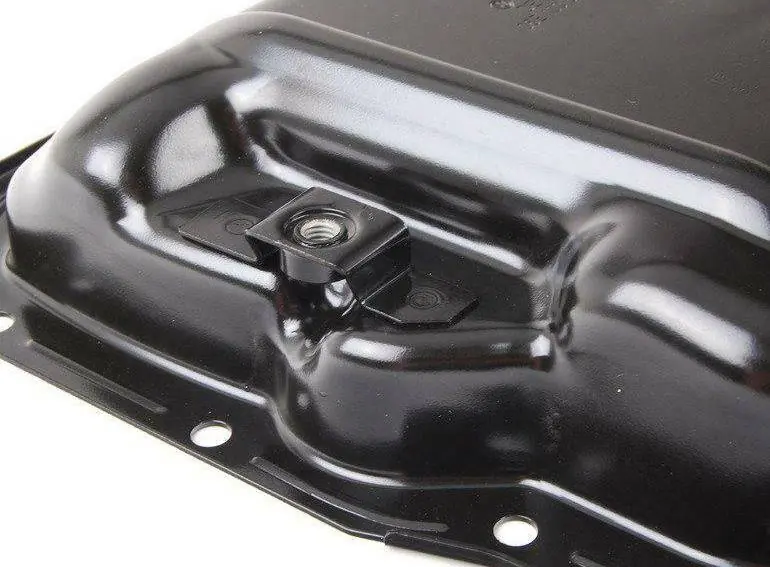

Genuine OEM Audi Engine Lower Oil Pan, part number 06E103604F. This vital engine component is located at the very bottom of the engine block, serving as a reservoir for the engine's lubricating oil. It encloses the crankshaft and provides a sealed environment for the oil, which is then circulated by the oil pump. Constructed from durable stamped steel with a protective black finish, it weighs approximately 1.57 kg. Choosing a genuine OEM oil pan ensures precise dimensions, correct baffling, and proper sealing surfaces, which are critical for preventing oil leaks and maintaining adequate oil supply to the engine.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 26.5 × 5.3 cm
- Shipping weight
- 1.57 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

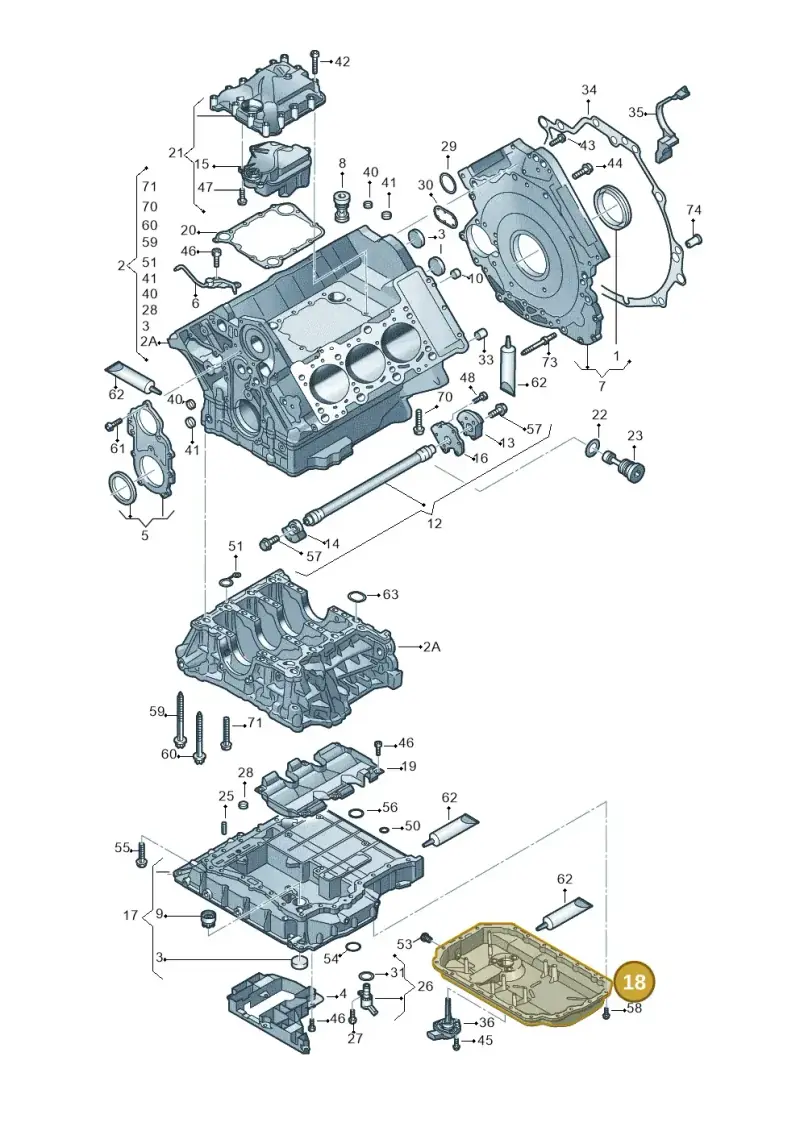

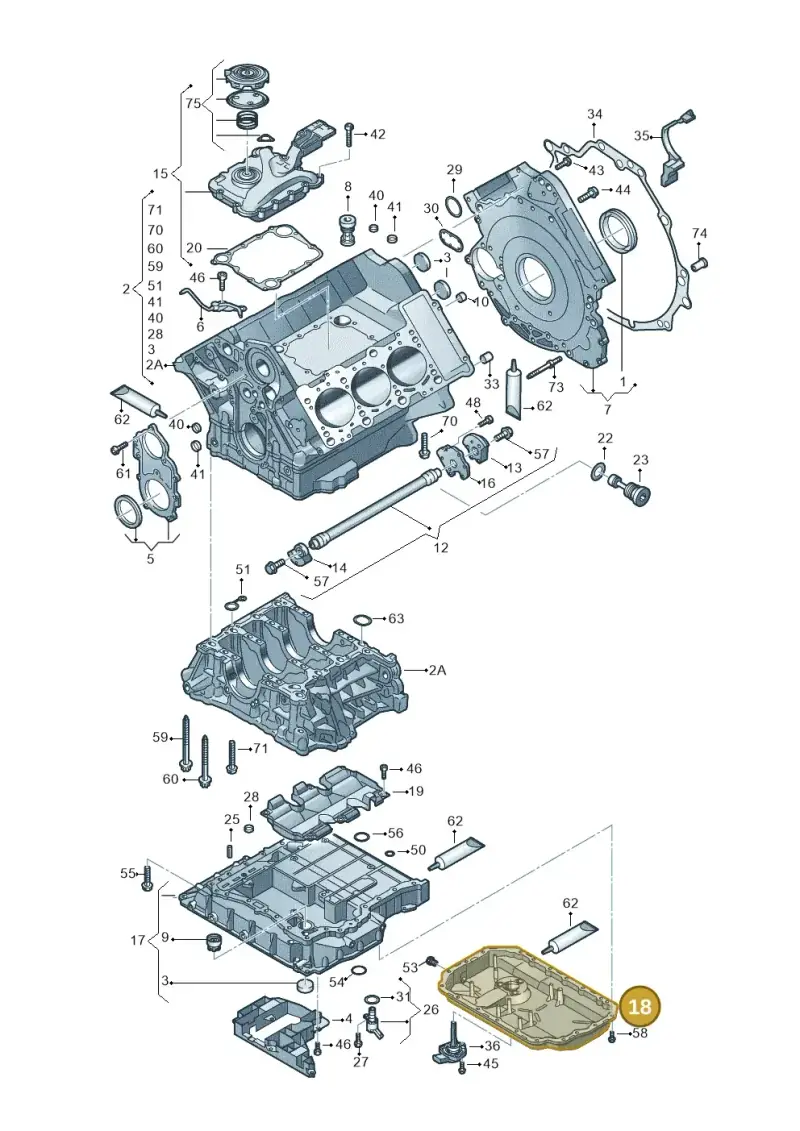

8 vehiclesOil Sump-lower Part — locate 06E103604F Audi Engine Lower Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Seal 079103051F
- 2ACrankcase 06E103011CJ
- 3Cover 036103113A
- 4Insert 06E103138B
- 5Flange 06E103153E
- 6Vent 06E103158B
- 7Flange 06E103171J
- 8Valve 059103175F
- 9Valve 06E103175A
- 10Sleeve 01E301153H
- 12Shaft 06E103273AC
- 13Weight 06E103331L
- 14Weight 06E103332H
- 15Trim 06E103547E
- 16Cover 06E103407F
- 17Oil Sump 06E103601N
- 19Lock 06E103623B
- 20Seal 06E103517
- 22Seal Ring 06C115444
- 23Screw WHT000399
- 25Part 055105277
- 28Sleeve 077115143D
- 29Seal 06E103181K
- 30Seal 06E103181L
- 40Cover N01190310
- 41Cover N0119047
- 42Bolt N10582102
- 43Bolt N10156206
- 44Screw N90870602
- 46Bolt N10451409
- 50Seal Ring N90039603
- 51Seal Ring 06E103181M
- 53Seal Ring N0138157
- 53Screw N0160276
- 54Seal Ring N90832501
- 55BoltRightN90851702
- 56Seal Ring N90951301
- 57Bolt N90893202
- 58Bolt N90071102
- 59Bolt N91071001
- 60Bolt WHT002671
- 61Bolt N91071701
- 62Seal D176501A1
- 63Seal Ring 06E103181N
- 70Screw N91138901
- 71Screw N91050601
- 73Stud WHT000403A
- 74Collar Nut WHT000404
Compatible / alternative parts(12)
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 18 | 1 | BKH | D2G |
| Audi A8/S8/qu. lang 08> | 2007- | 18 | 1 | D62 | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 18 | |||
| AUDI A6 QU.ALLROAD 07> | 2006- | 18 | 1 | ||
| Audi A4/S4/Av./qu. 05> | 2005- | 18 | 1 | D2G,G0L,G0R,G0Z | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 18 | |||
| Audi A8/S8/qu. lang | 2003-2007 | 18 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06E103604F Audi Engine Lower Oil Pan | Genuine OEM is fitted on: Audi A6 2.7 TDI 2008-2011; Audi A8/S8/qu. lang 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; AUDI A6L "CN"05> 2005-.
