Product overview

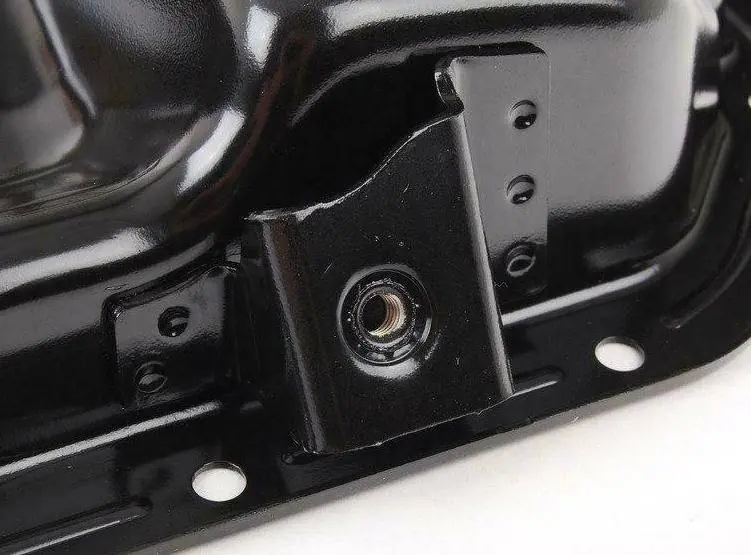

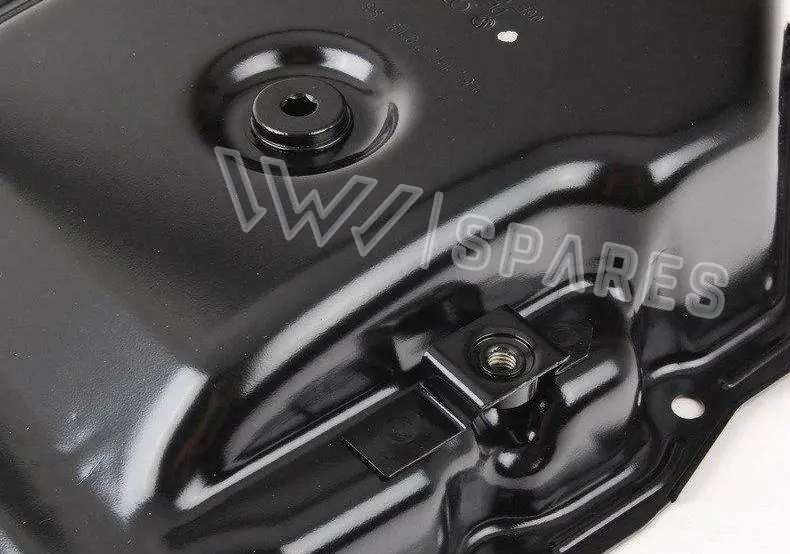

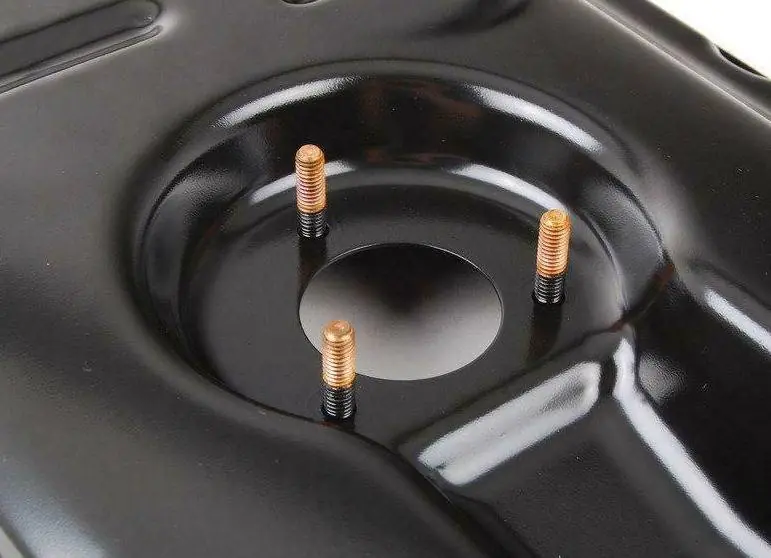

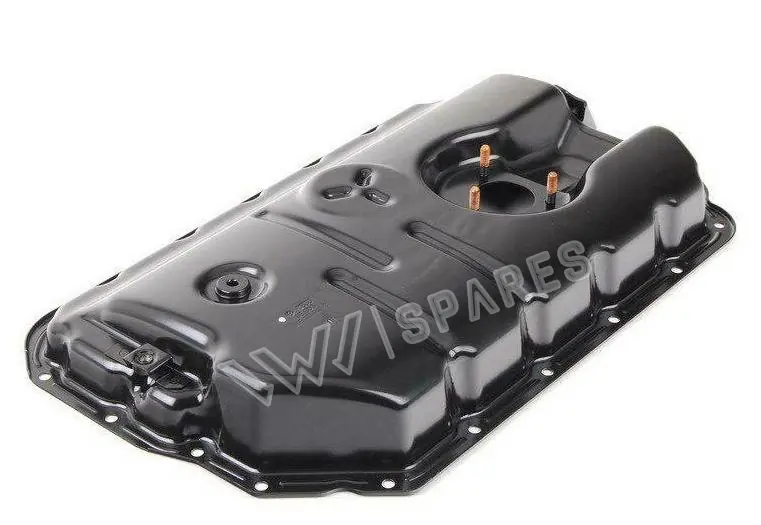

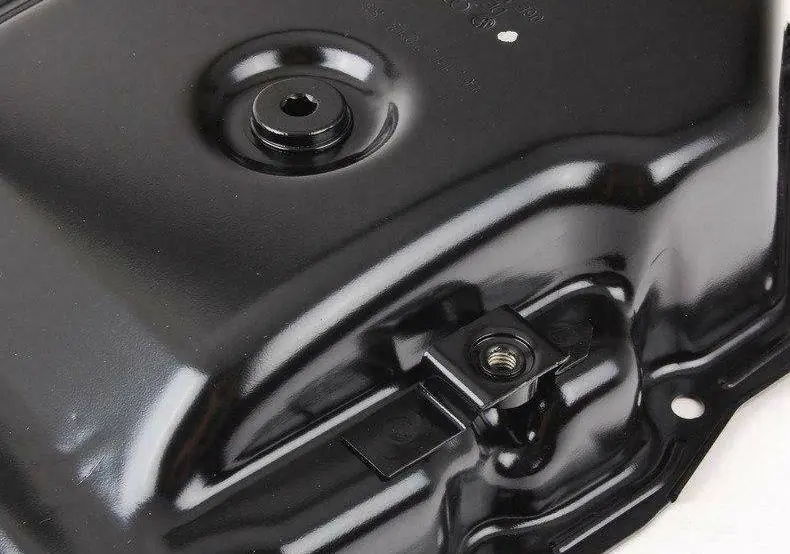

Genuine OEM Audi Oil Sump, part number 06E103604K. This critical engine component is located at the bottom of the engine, serving as a reservoir to hold and collect engine oil for recirculation throughout the lubrication system. It protects the crankshaft and other internal engine parts while ensuring proper oil supply. Constructed from durable stamped steel with a black finish, it weighs 1.58 kg and measures approximately 0.45m in length. Genuine OEM oil sumps guarantee precise fitment, proper sealing surfaces, and material integrity to prevent leaks and maintain engine health.
Catalogue entry: OIL SUMP.
Fitted with: N0160276 SCREW, N0138157 seal ring, N90071102 BOLT, D174003M2 SEAL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 27 × 5.7 cm
- Shipping weight
- 1.58 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- M9X
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
27 vehiclesOil Sump-lower Part — locate 06E103604K Audi Oil Sump | Genuine OEM Engine Oil Pan in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Seal 079103051F
- 2Crankcase 06E103011CD
- 2Crankcase 06E103011EM
- 4Insert 06E103138G
- 5Flange 06E103153E
- 6Vent 06E103158H
- 7Flange 06E103171BH
- 7Flange 06E103171K
- 7Flange 06E103171Q
- 8Valve 059103175F
- 9Valve 06E103175A
- 10Sleeve 022103139B
- 12Shaft 06E103273AC
- 13Weight 06E103331L
- 14Weight 06E103332H
- 15Trim 06E103547E
- 16Cover 06E103407F
- 17Oil Sump 06E103601K
- 19Lock 06E103623H
- 20Seal 06E103517
- 22Seal Ring 06C115444
- 23Screw WHT000399
- 25Part 055105277
- 26Part 06E115243E
- 27Bolt N10405604
- 28Sleeve 077115143D
- 29Seal 06E103181K
- 30Seal 06E103181L
- 35Cover 06E103565C
- 40Cover N01190310
- 41Cover N0119047
- 42Bolt N10156206
- 44Bolt N10750801
- 44Screw N90870602
- 46Bolt N10347103
- 46Bolt N10451401
- 46Bolt N10451409
- 50Seal Ring N90951301
- 51Seal Ring 06E103181M
- 53Seal Ring N0138157
- 53Screw N0160276
- 54Seal Ring N90809102
- 55Bolt N90851702
- 57Bolt N90893202
- 58Bolt N90071102
- 59Bolt N91071001
- 60Bolt WHT002671
- 61Bolt N91071701
Compatible / alternative parts(12)
Vehicle fitment table27
Europe (23)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 18 | 1 | ||
| audi a6 qu. 3.0 tdi | 2014-2018 | 18 | 1 | ||
| Touareg BlueMotion | 2014-2018 | 53 | 1 | ||
| Audi A8L qu. 3.0 TDI | 2013-2018 | 18 | 1 | M9X | |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 18 | 1 | D18 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 53 | 1 | D08 | |
| touareg | 2012-2014 | 53 | 1 | D19 | |
| Audi A5 Sportback | 2011-2017 | 18 | 1 | D08 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 18 | 1 | D11 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 18 | 1 | D11 | |
| Audi A7 Sportback | 2010-2015 | 18, 53 | 1 | G0Z | |
| audi a6 2.0 tdi | 2010-2015 | 18, 53 | 1 | ||
| touareg | 2010-2012 | 53 | 1 | D19 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 53 | 1 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 18 | 1 | M9X | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 18 | 1 | ||
| Audi A5 Cabrio 2.0 | 2008-2012 | 18 | 1 | D11 | |
| Audi A6 2.7 TDI | 2008-2011 | 18 | 1 | CCDA,CCEA | |
| Audi A5/S5 Coupe 08> | 2007- | 18 | 1 | ||
| Audi A8/S8/qu. lang 08> | 2007- | 18 | 1 | ||
| AUDI A4 08> | 2007- | 18 | 1 | D11 | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 18 | 1 | D12 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 18 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 1.8 | 2015-2019 | 18 | 1 | G0Z | |
| Audi A6 L 2.0 | 2011-2013 | 18, 53 | 1 | TF8 | |
| Audi A4L 2.0 | 2008-2012 | 18 | 1 | D6W | |
| AUDI A6L "CN"05> | 2005- | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06E103604K Audi Oil Sump | Genuine OEM Engine Oil Pan is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Touareg BlueMotion 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; touareg 2012-2014; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A6/S6/Avant/qu. 05> 2004-; audi a6 1.8 2015-2019; Audi A6 L 2.0 2011-2013; Audi A4L 2.0 2008-2012; AUDI A6L "CN"05> 2005-.
