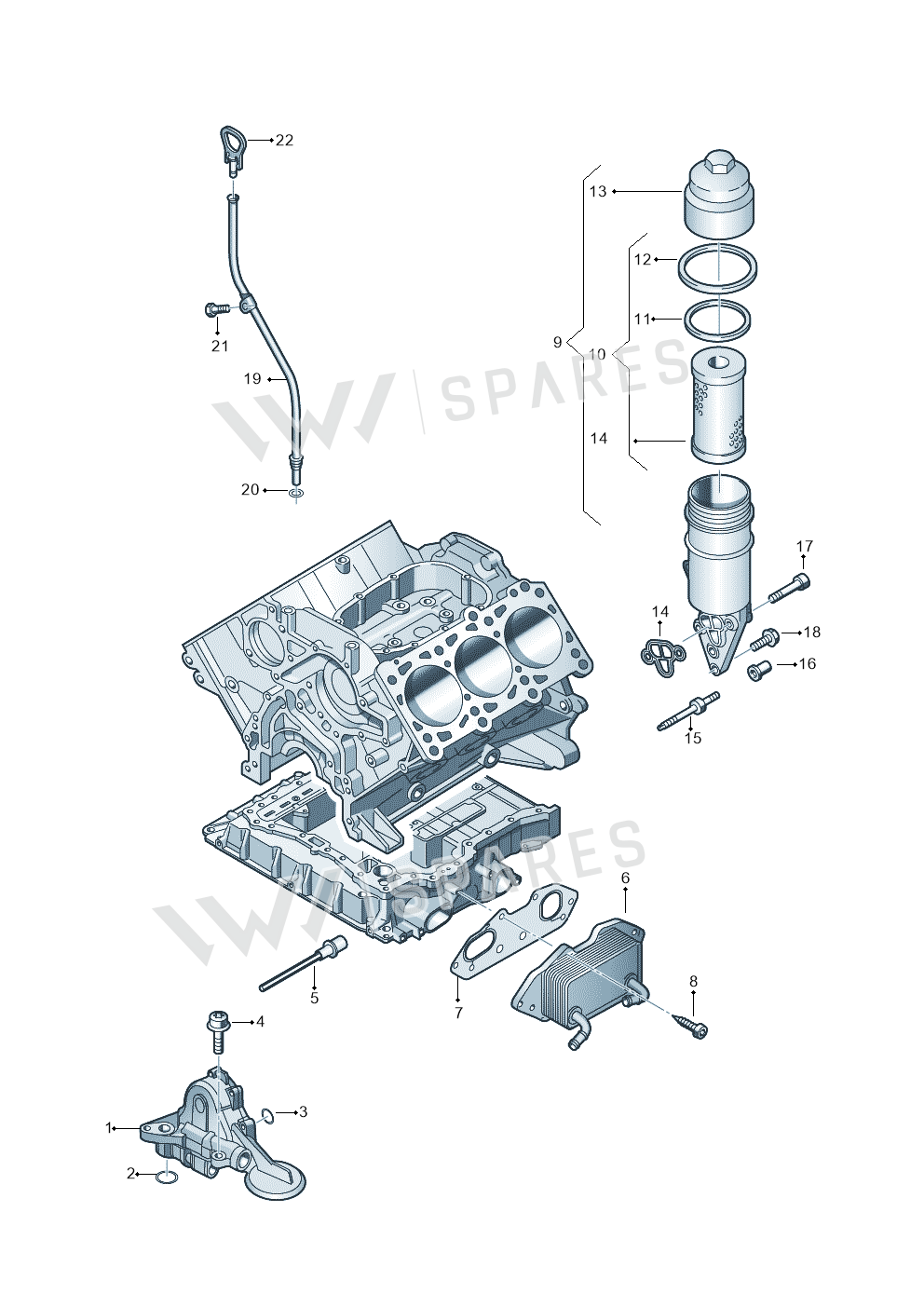

Oil Pump exploded parts diagram — touareg · 2010-2012, position 1 — touareg · 2010-2012 · position 1Full diagram ↓

06E115105AN

06E115105AN Oil Pump

Name: 06E115105AN Oil Pump
Brand: Volkswagen
SKU: 06E115105AN
Price: 181.45 GBP
Availability: Discontinued

£181.45

£149.96 excl. VAT

Supersession roadoldest to newest

06E115105AN
Not stocked Nov 2011
You are here
06E115105AQ
Not stocked Oct 2016
06E115105BD
Current number

06E115105ANThis pageNot stocked
Nov 2011
06E115105AQNot stocked
Oct 2016
06E115105BDCurrent number

Current part number06E115105BDWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

2 vehicles

Oil Pump — locate Oil Pump in the official exploded view and explore the surrounding assembly.

Parts in this assembly23

Vehicle fitment table2

Europe (2)

Vehicle	Years	Pos.	Qty	PR
touareg	2010-2012	1	1	D12
Audi Q7 qu. 3.0 TDI	2009-2015	1	1	TC6
