Product overview
Genuine OEM Volkswagen pulley, part number 06E145255H. This pulley is a component within the intake or turbo system, designed to transmit rotational force. It is located in the assembly as shown in the diagram. Manufactured to exact specifications, genuine OEM pulleys ensure smooth operation and long service life.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 84835020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.6 × 8.6 × 3.5 cm
- Shipping weight
- 0.32 kg

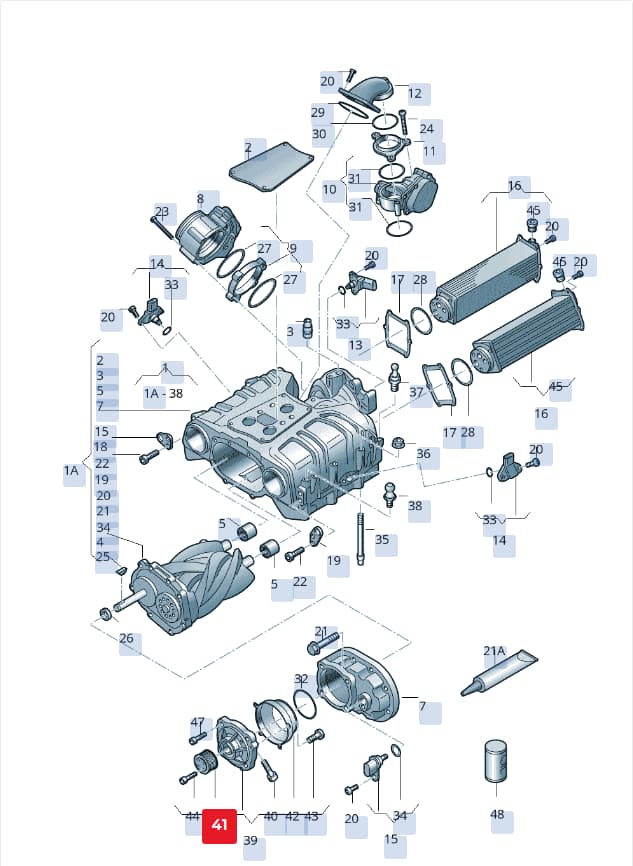

Parts diagram & fitment
10 vehiclesPulley — locate 06E145255H Volkswagen Pulley | Intake & Turbo in the official exploded view and explore the surrounding assembly.
Parts in this assembly(45)
- 1Compressor 06E145601AM
- 1ACompressor 06E145603AD
- 3Adapter 06E133382A
- 4Rotor 06E145211D
- 5Bearing 06E145475
- 7Cover 06E145609D
- 8Adapter 06E133062H
- 9Adapter 06E145175J
- 10Thr Flap 057128063G
- 11Adapter 06E145175A
- 12Connection 06E145641D
- 13Sensor 03C906051F
- 14Sensor 06E906051AA
- 15Sensor 06E906401
- 16Cooler 06E145621M
- 17Part 06E145723G
- 18Eyelet 06E103390BC
- 19Eyelet 06E103390BB
- 20Bolt N10451409
- 21Bolt N10664503
- 21ASealant D154103A1
- 22Screw N91026802
- 23Bolt N10622101
- 24Screw N10470703
- 25Part 06E109445B
- 26Seal 06E145347
- 27Seal Ring 06E145272C
- 28Part 06E145723H
- 29Seal Ring 06E145272D
- 30Seal Ring 06E145272A
- 31Seal Ring N90521604
- 32Seal Ring 06E145272F
- 33Seal Ring 036906149D
- 34Seal Ring 06A906445
- 35Part 06E103239H
- 36Collar Nut N10609203
- 37Part WHT007154
- 38Ball Screw WHT002377
- 39Clutch 06E145105N
- 40Screw N91021502
- 42Housing 06E145851
- 43Bolt N10653901
- 44Screw N10817701
- 45Part 06E127535B
- 48Part G070000A0
Diagrams & fitment data powered by oemdiagrams.com
06E145255H Volkswagen Pulley | Intake & Turbo is fitted on: Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi Q7 qu. 3.0 TDI 2015-2019; audi a6 1.8 2015-2019; Phideon 2016-2023.
