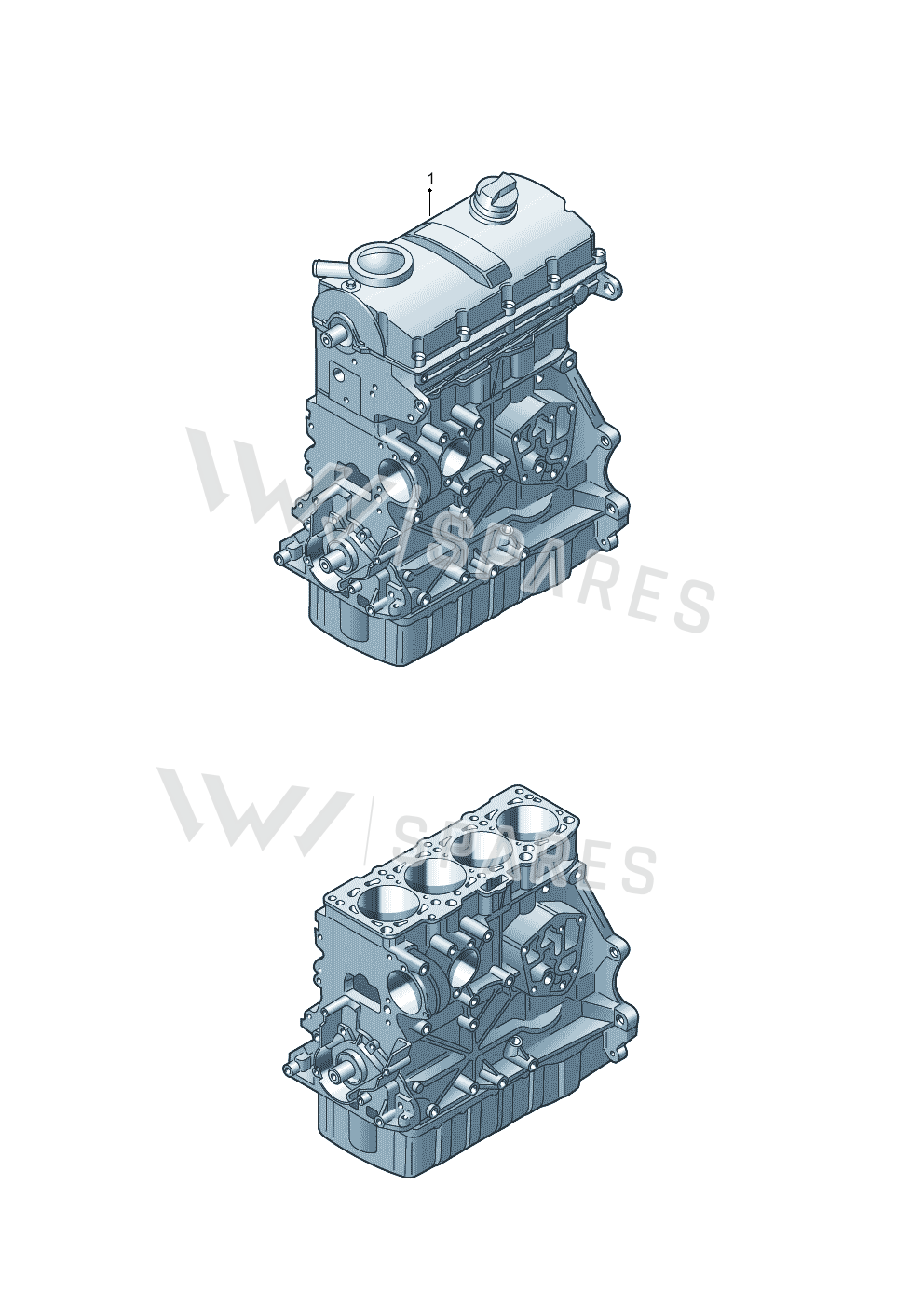

Base Engine exploded parts diagram — LEON 06> · 2005-, position 1
Exploded view
LEON 06> · 2005- · position 1Full diagram ↓
06F100033QX

06F100033QX Base Engine

£4,765.59
£3,938.50 excl. VAT
Supersession roadforks into 2
  1. 06F100033QNot stocked
    Apr 2008
  2. 06F100033QXThis pageNot stocked
    Oct 2009
  1. 06F100103AXDiscontinued
    Mar 2023
  2. 06F103265CXDiscontinued
    Nov 2024
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

7 vehicles

Base Engine — locate Base Engine in the official exploded view and explore the surrounding assembly.

Parts in this assembly21
Vehicle fitment table7

Europe (7)

VehicleYearsPos.QtyPR
LEON 06>2005-11BLR
GOLF PLUS 05>2005-21BLR
Passat/4Motion2005-200721BLR
Audi A3/S3/quattro2005-200721D2Z,G0K,QG1,QG2,0GG,7GE
TOLEDO 05>2004-11BLR
OCTAVIA/COMBI/4X4 04>2004-11BLR
ALTEA2004-200611BLR

Diagrams & fitment data powered by oemdiagrams.com

Base Engine is fitted on: LEON 06> 2005-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006.
