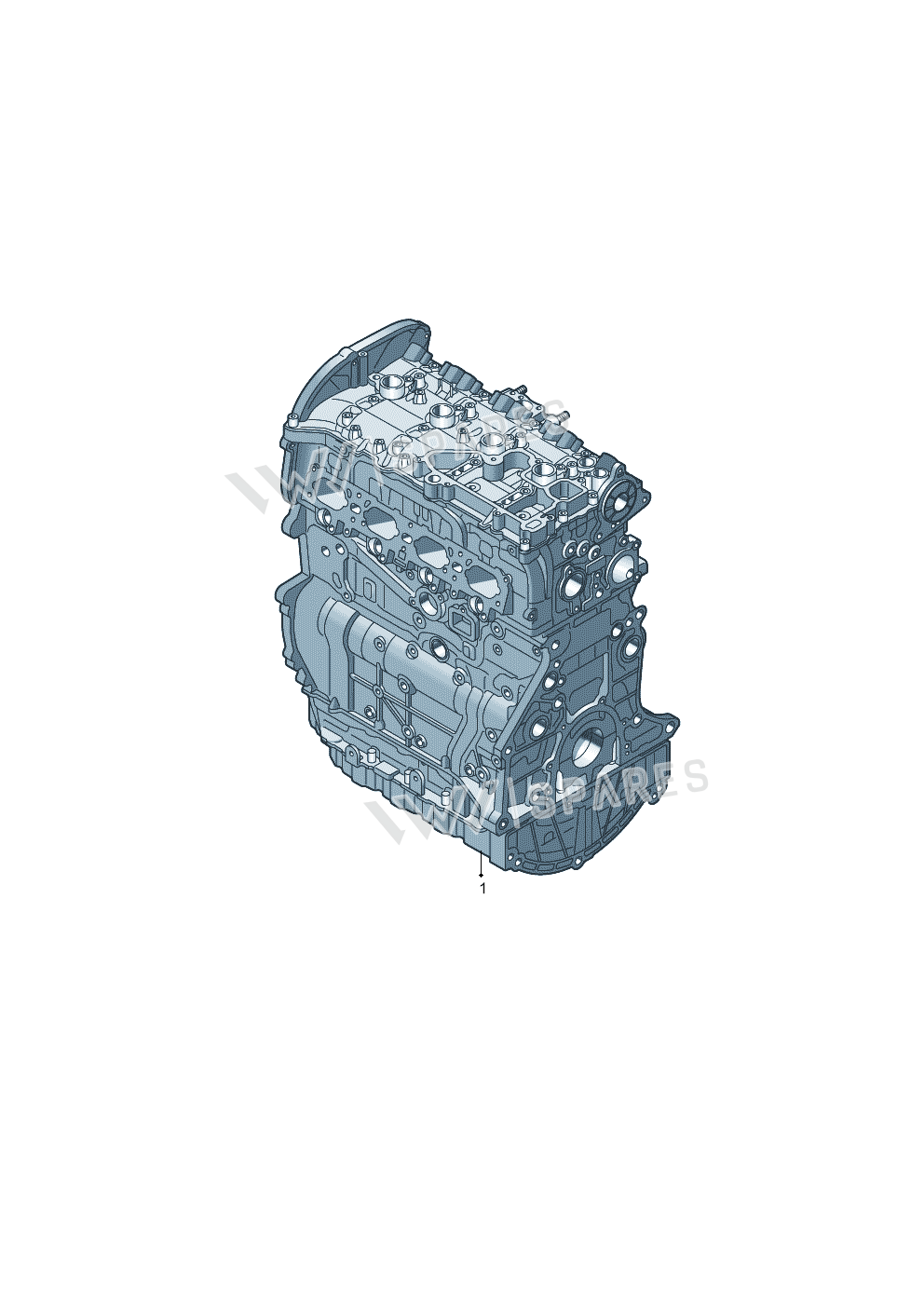

Short Block exploded parts diagram — Scirocco 2.0 · 2014-2017, position 1
Exploded view
Scirocco 2.0 · 2014-2017 · position 1Full diagram ↓
06F100103EX

06F100103EX Short Block

£4,976.68
£4,112.96 excl. VAT
Supersession road7 numbers since 2009
  1. 06F100035TXNot stocked
    Jul 2009
  2. 06F100040GXNot stocked
    Jun 2012
  3. 06F100040KXNot stocked
    May 2012
  4. 06F100041DXNot stocked
    Oct 2012
  5. 06F100041DNot stocked
    Aug 2017
  6. 06F100103EXThis pageNot stocked
    Apr 2025
  7. 06F100103ECurrent number
Current part number06F100103EWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

10 vehicles

Short Block — locate Short Block in the official exploded view and explore the surrounding assembly.

Parts in this assembly7
Vehicle fitment table10

Europe (10)

VehicleYearsPos.QtyRemarkPR
Scirocco 2.02014-20171
Polo2012-201421
Golf Cabriolet2011-20163
Golf2011-20132
Audi TTS Coupe 2.02010-201431CDMA7GB
Scirocco 2.02008-20142
Audi A3 Sportback2008-20133188/195KWCD
golf 2.02008-20112
Audi A3/S3/Sportb./qu. 082007-31BHZ,BZC
LEON 06>2005-2

Diagrams & fitment data powered by oemdiagrams.com

Short Block is fitted on: Scirocco 2.0 2014-2017; Polo 2012-2014; Golf Cabriolet 2011-2016; Golf 2011-2013; Audi TTS Coupe 2.0 2010-2014; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; Audi A3/S3/Sportb./qu. 08 2007-; LEON 06> 2005-.
