Genuine OEM Volkswagen Engine Oil Pan, part number 06F103601. This part functions as the reservoir for engine oil, collecting it after it circulates through the engine. It is located at the bottom of the engine assembly. This oil pan is made of metal and features an opening for a level sensor. Genuine OEM parts are critical for oil pans to ensure precise fitment and material integrity, preventing leaks and maintaining proper oil circulation for engine longevity.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 43.5 × 47 × 11.5 cm
- Shipping weight
- 2.54 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

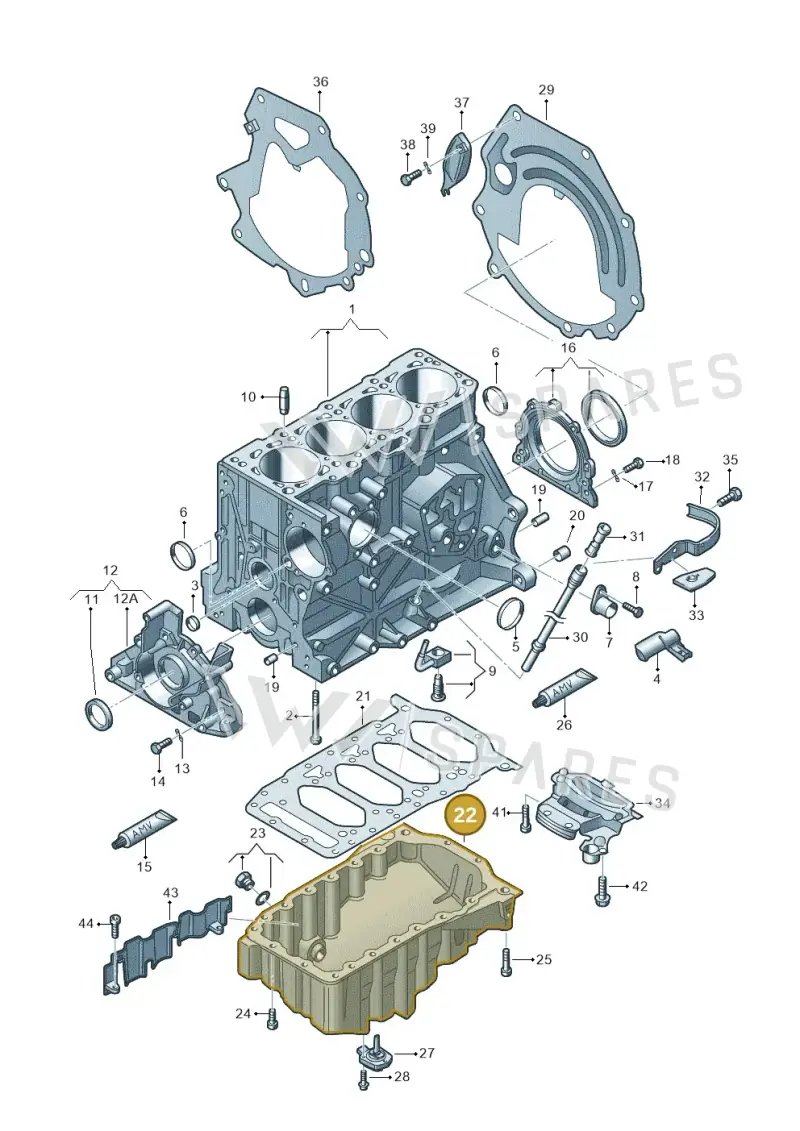

13 vehiclesOil Sump — locate 06F103601 Volkswagen Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 06F103601F — the later replacement part.
This part is marked discontinued by the manufacturer (since 2022-04-01); contact us to check current availability.
Parts in this assembly29
- 1Cylinder Block 06F103101
- 1Cylinder Block 06D103101A
- 1Cylinder Block 06D103101D
- 2Bolt WHT000134
- 3Cover N01190710
- 5Cover 06B103113
- 9Vent 06B103154
- 10Part 026103139
- 11Seal 038103085E
- 12Flange 06B103151
- 12AFlange 06D103153B
- 14Bolt N90945002
- 15Seal D176404A2
- 16Flange 06B103171J
- 18Screw N91148501
- 19Part N0432072
- 20Sleeve 022103139
- 21Frame 06B103307E
- 22Oil Sump 06F103601D
- 23Bolt N90813202
- 24BoltLeftN90735603
- 29Spacer Pl 038103645C
- 30Tube 06D103634
- 31Funnel 06F103663J
- 33Guide 06F103705B
- 36Cover 06F103645A
- 37Coverplate 038103645A
- 38Bolt N0102085
- 39Washer N0122265
Compatible / alternative parts(12)
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| JETTA 06> | 2006- | 22 | 1 | BLY | |
| GOLF PLUS 05> | 2005- | 22 | 1 | BLY,BLR | |
| JETTA 06> | 2005- | 22 | 1 | D2Z,T58 | |
| LEON 06> | 2005- | 22 | |||
| Passat/4Motion | 2005-2007 | 22 | 1 | BLX,BLY,BLR | |
| Audi A3/S3/quattro | 2005-2007 | 22 | 1 | D2T,D2Z,G0K,G1A,QG0,QG1,QG2,0GG,0GU,7GE | |
| TOURAN | 2005-2006 | 22 | 1 | BLX,BLY,BLR | |
| TOLEDO 05> | 2004- | 22 | |||
| OCTAVIA/COMBI/4X4 04> | 2004- | 22 | |||
| ALTEA | 2004-2006 | 22 | 1 | BLY,BLR | |
| TOURAN | 2003-2005 | 22 | 1 | ||
| GOLF | 2003-2005 | 22 | 1 | AXW,BLX,BLY, |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 22 | 1 | BLX,BLY,BLR |
Diagrams & fitment data powered by oemdiagrams.com
06F103601 Volkswagen Engine Oil Pan | Genuine OEM is fitted on: JETTA 06> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; TOURAN 2003-2005; GOLF 2003-2005; Golf/Rabbit 2005-2007.
