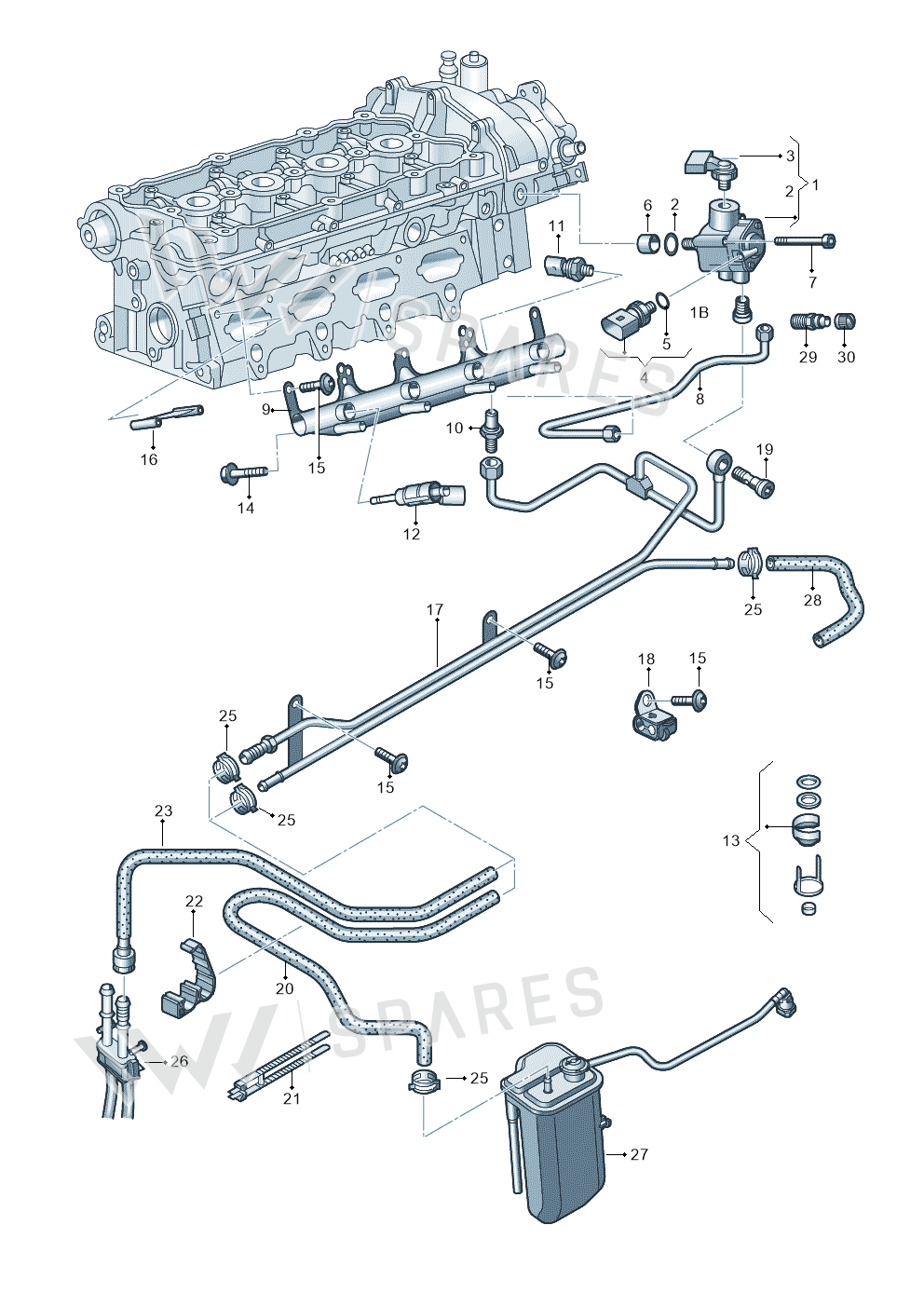

Fuel Pump exploded parts diagram — AUDI A4 "CN."06> · 2005-, position 1
Exploded view
AUDI A4 "CN."06> · 2005- · position 1Full diagram ↓
06F127025B

06F127025B Fuel Pump

£301.91
£249.51 excl. VAT
Supersession roadforks into 4
  1. 06F127025BThis pageNot stocked
    May 2005
  1. 06D133400ACurrent number
  2. 06F133335ACurrent number
  3. 06F127213BDiscontinued
    Nov 2024
  4. 06F127025MCurrent number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Fuel Pump — locate Fuel Pump in the official exploded view and explore the surrounding assembly.

Parts in this assembly20
Vehicle fitment table1

Other markets (1)

VehicleYearsPos.Qty
AUDI A4 "CN."06>2005-11

Diagrams & fitment data powered by oemdiagrams.com

Fuel Pump is fitted on: AUDI A4 "CN."06> 2005-.
