06F127501Q Fuel Line
- 06F127501MNot stocked
Oct 2005 - 06F127501QThis pageNot stocked
Apr 2007 - 06F127509AANot stocked
May 2007
- Current number06F127509ABCurrent number
- Current number06F127511BCurrent number
- Current numberN90986501Current number
- Current number06F127213CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

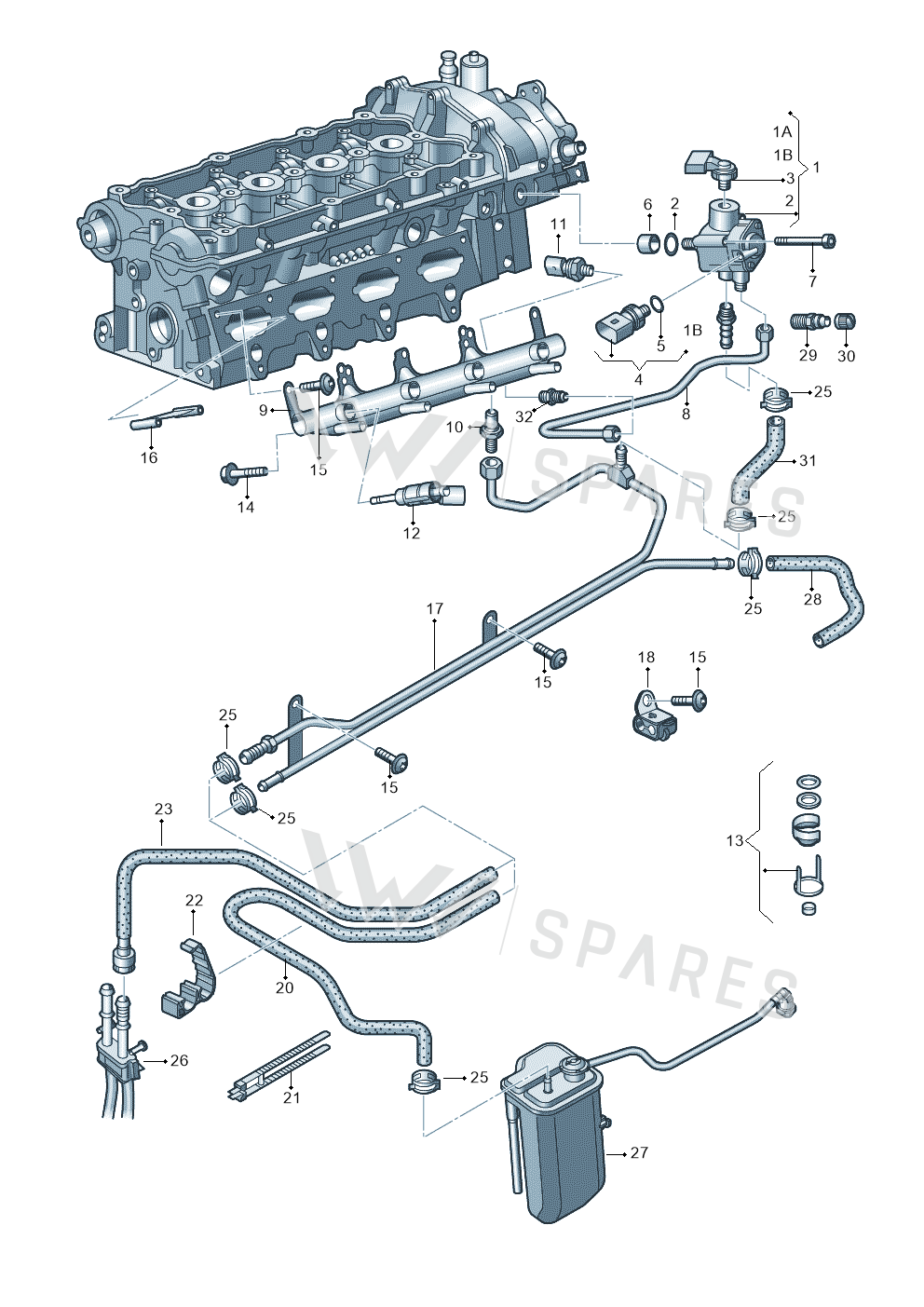

6 vehiclesFuel Line — locate Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Pump 06F127025J
- 1BUnion 06F127213C
- 2Seal Ring WHT005184
- 4Sensor 06E906051K
- 5Seal Ring 06E906149B
- 6Tappets 06D109309C
- 7Screw N10624701
- 8Fuel Line 06F127501N
- 9Rail 06F133317G
- 10Valve 06D130757C
- 11Sensor 06H906051A
- 12Valve 06F906036A
- 13Repair Kit 06D998907
- 14Bolt N10622101
- 15Screw N90735802
- 17Fuel Line 06F127509AB
- 18Clip 06F130401A
- 20Hose 3C0133366D
- 20Hose 3C0133366E
- 21Binder 4A0820199
- 22Bracket 1J0130325B
- 23Fuel Line 1K0133986AT
- 23Fuel Line 1K0133986BA
- 25Clamp N90686701
- 29Valve 06D133400A
- 30Part 06F133335A
- 31Hose 06F127511B
- 32Adapter 06E127065B
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 17 | 1 | |
| Passat/4Motion | 2005-2007 | 17 | 1 | |
| Audi A3/S3/quattro | 2005-2007 | 17 | 1 | T59 |
| TOLEDO 05> | 2004- | 17 | 1 | |
| GOLF | 2003-2005 | 17 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Line is fitted on: ALTEA 07> 2006-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; GOLF 2003-2005; Golf/Rabbit 2005-2007.
