06F145317E Bracket With Coolant Pipe
- 06F145317ANot stocked
Aug 2004 - 06F145317CNot stocked
Oct 2004 - 06F145317EThis pageNot stocked
Apr 2007 - 06F145317HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

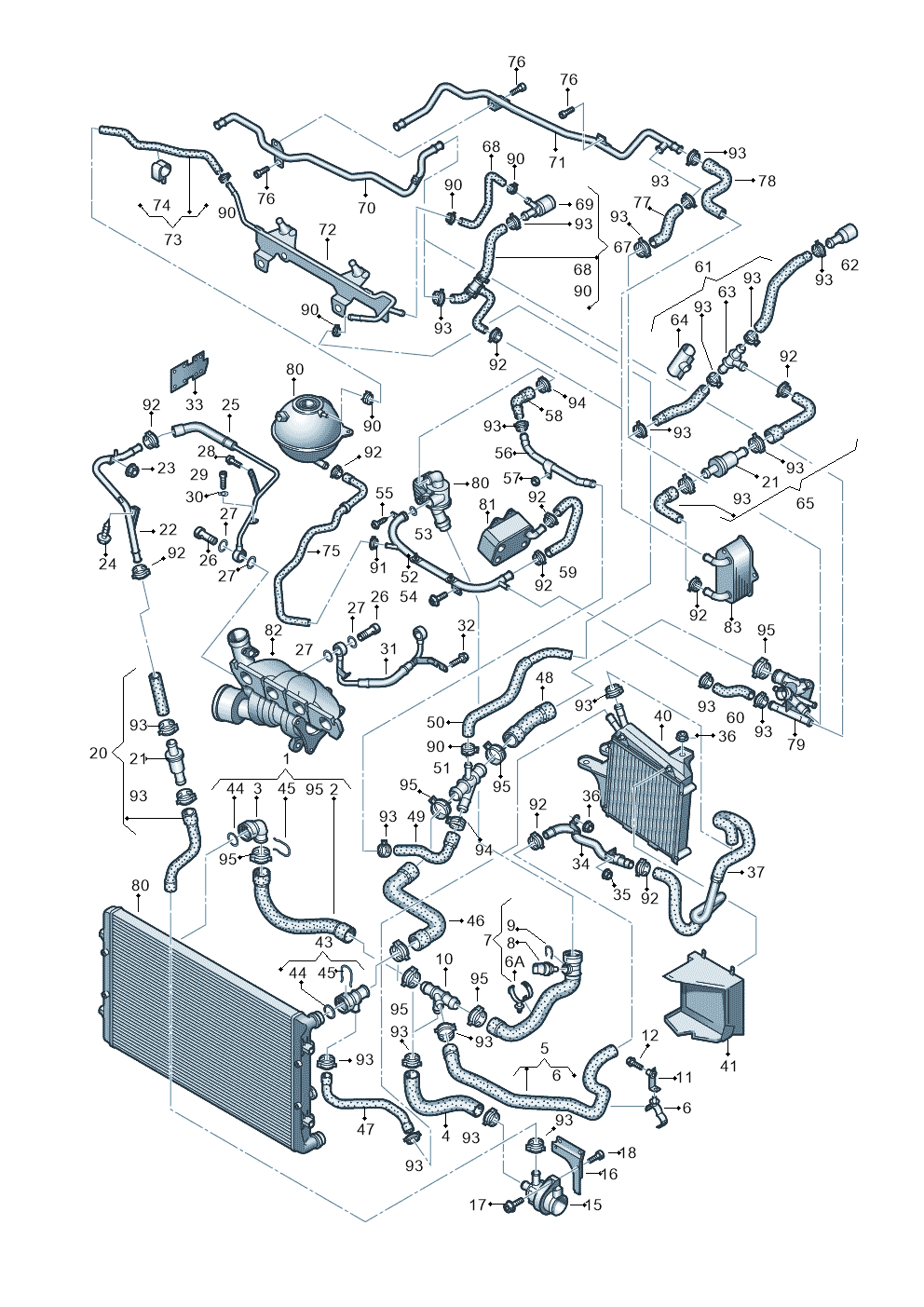

8 vehiclesBracket With Coolant Pipe — locate Bracket With Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 1K0122051CL
- 1Hose 1K0122051CM
- 3Coupl Piece 1K0122291L
- 4Hose 1K0122063D
- 8Sender 06A919501A
- 9Spring 032121142
- 10Adapter N90692901
- 11Bracket 1K0121093AJ
- 12Bolt N10128110
- 15Pump 1K0965561G
- 16Bracket 1K0121093AK
- 17Bolt N10124408
- 18Screw N0147214
- 20Hose 1K0121063J
- 22Water Pipe 1K0121070AQ
- 23Collar Nut N01508213
- 24Screw WHT000700
- 25Water Pipe 06F121492L
- 26Screw 06A145541J
- 27Seal Ring N0138149
- 28Screw N10225401
- 29Screw N01470213
- 30Washer N0122265
- 31Water Pipe 06F121497G
- 32Bolt N10005204
- 33Heat Insul 06F133833C
- 34Water Pipe 1K0121064A
- 36Part N90908301
- 40Radiator 1K0121212B
- 43Coupl Piece 7M3122291
- 44Seal Ring N90765301
- 45Spring 1J0121142
- 46Hose 1K0121101BT
- 46Hose 1K0122101DK
- 46Part 1K0122101DL
- 48Hose 06F121101
- 49Hose 06F121063D
- 50Hose 06F121447
- 51Junction 1K0121087H
- 52Water Pipe 06F121065H
- 53Seal Ring N90365302
- 55Bolt N90817003
- 56Water Pipe 06F121065J
- 57Part N01100636
- 58Hose 06F121057C
- 59Hose 06F121058C
- 60Hose 06F121056C
- 61Hose 1K0121073BF
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 72, 39 | 1 | T59 |
| LEON 06> | 2005- | 72, 39 | 1 | TA2 |
| JETTA 06> | 2005- | 13, 72, 39 | ||
| Audi A3/S3/quattro | 2005-2007 | 13 | ||
| TOLEDO 05> | 2004- | 72, 39 | 1 | T59 |
| OCTAVIA/COMBI/4X4 04> | 2004- | 72, 39 | 1 | |
| ALTEA | 2004-2006 | 39 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 13, 39 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket With Coolant Pipe is fitted on: ALTEA 07> 2006-; LEON 06> 2005-; JETTA 06> 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Jetta "USA"05> 2005-.
