06H103011AM Crankcase Housing
- 06H103011BLNot stocked
Oct 2011 - 06H103011AMThis pageNot stocked
Nov 2013
- Current number06H103011TCurrent number
- Current number06H107065DMCurrent number
- Current number026103139Current number
- Current numberN10617101Current number
- Current number06H103113Current number
- Current numberN90982902Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

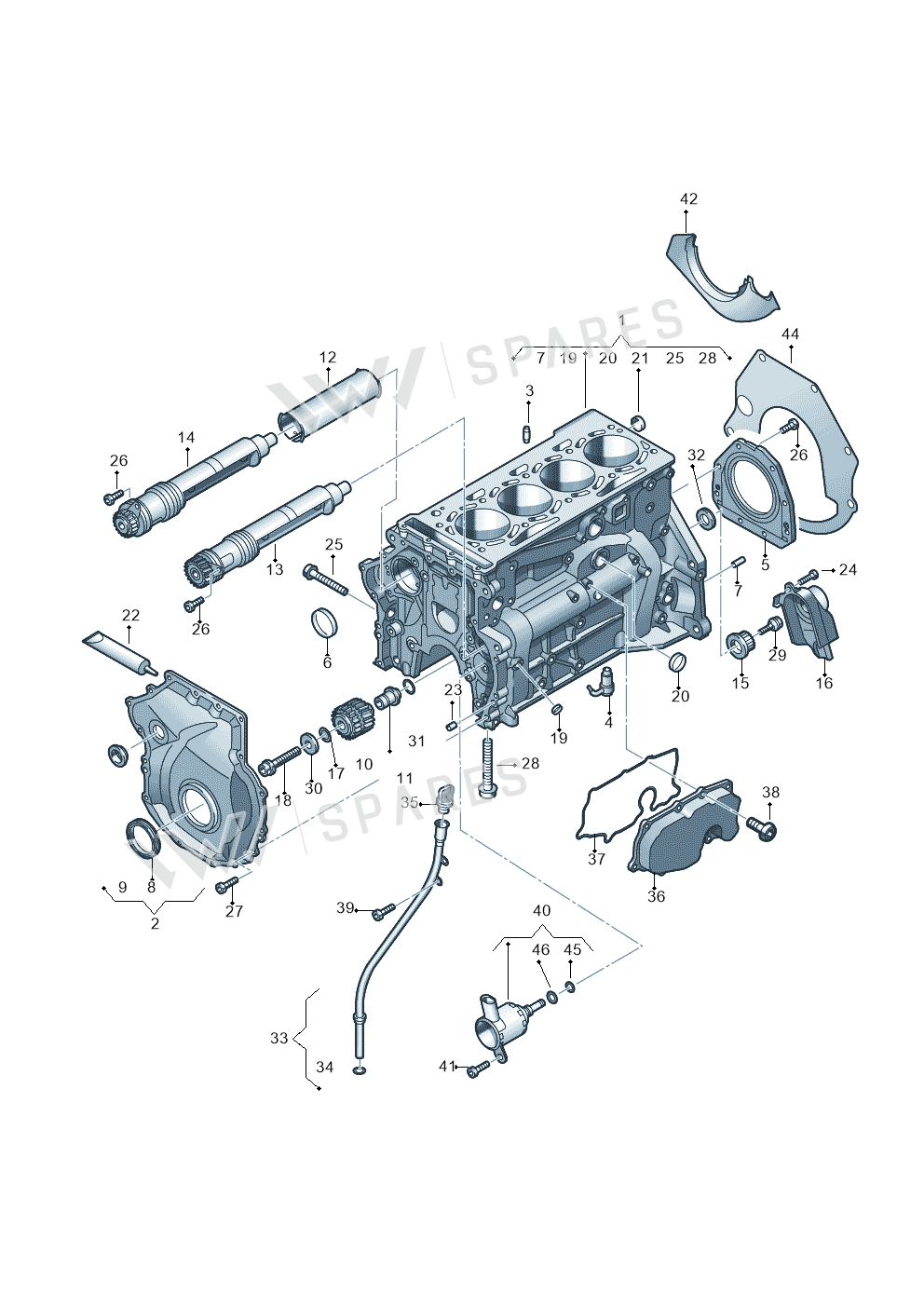

12 vehiclesCrankcase Housing — locate Crankcase Housing in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Crankcase 06H103011T
- 2Case 06K109210
- 3Part 026103139
- 4Vent 06J103154B
- 5Flange 06H103171F
- 6Cover 06H103113
- 7Sleeve 022103139B
- 8Seal 06L103085B
- 9Bungs 06H115418D
- 10Chn Sprckt 06H103319S
- 11Shaft 06H103559B
- 12Pipe 06H103199K
- 14Repair Kit 06H198205G
- 14Repair Kit 06H198205N
- 15Pulley 06H103731F
- 15Pulley 06H103731G
- 16Protection 06H109121G
- 17Seal Ring WHT001905
- 18Screw N10544904
- 19Cover N0119104
- 20Cover N01190110
- 21Cover N0119078
- 21Cover N90982902
- 22Seal D176501A1
- 23Part N10617101
- 24Bolt N10156206
- 25Screw N91187501
- 26Bolt N10335206
- 27Bolt N91096702
- 28Screw N91118902
- 29Bolt WHT001163B
- 30Washer WHT001396A
- 31Seal Ring WHT001905A
- 32Seal 06H103085J
- 33Tube 06H115610E
- 34Seal Ring WHT003463
- 35Part 06H115418M
- 36Separator 06H103464L
- 37Seal 06H103517D
- 38Bolt N10196103
- 39Bolt N10451409
- 42Cover 06H103565
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 1 | 1 | D2D | |
| Audi A5 Sportback | 2011-2017 | 1 | 1 | ||
| Audi A5 Cabrio 2.0 | 2011-2017 | 1 | 1 | ||
| audi a4 av. 2.0 tdi | 2011-2015 | 1 | 1 | ||
| audi a6 2.0 tdi | 2010-2015 | 1 | 1 | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 1 | 1 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 1 | 1 | D69 | |
| Amarok twin cab | 2009-2012 | 1 | |||
| Audi A4 Av. Allroad | 2008-2016 | 1 | 1 | A8U | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 1 | 1 | D69 | |
| AUDI A4 08> | 2007- | 1 | 1 | CFKA | D2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6 L 2.0 | 2011-2013 | 1 | 1 | D64 |
Diagrams & fitment data powered by oemdiagrams.com
Crankcase Housing is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi TTS Coupe 2.0 2010-2014; Audi A8L qu. 3.0 TDI 2009-2014; Amarok twin cab 2009-2012; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; AUDI A4 08> 2007-; Audi A6 L 2.0 2011-2013.
