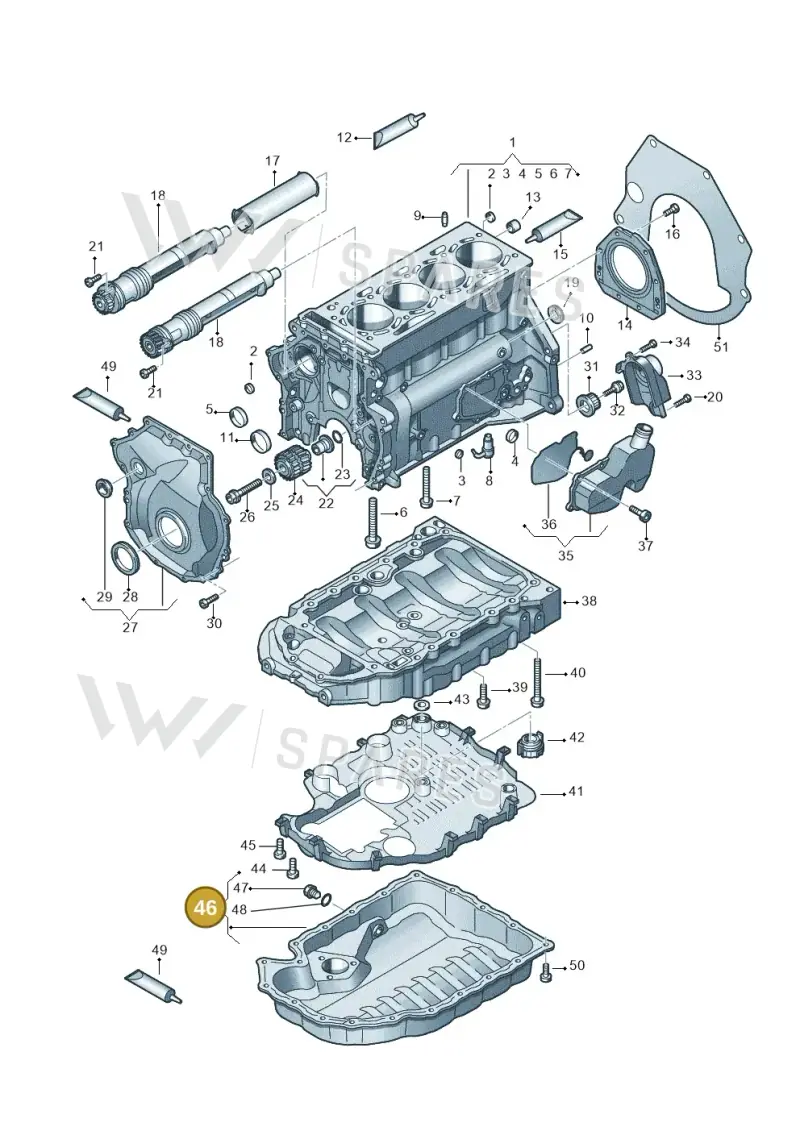

Number 46 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen lower oil pan, part number 06H103600AC. This part serves as the reservoir for engine oil, collecting it after it circulates through the engine. It is located at the bottom of the engine. The weight of this part is 2.386 kg. Genuine OEM oil pans are manufactured to exact specifications, ensuring a perfect seal to prevent oil leaks and maintain proper lubrication.
Catalogue entry: OIL SUMP.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 29 × 14 cm
- Shipping weight
- 2.39 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesOil Sump-lower Part — locate 06H103600AC Volkswagen Oil Pan - Lower Part | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Part 06H103011T
- 2Cover N0119078
- 3Cover N0119104
- 4Cover N01190110
- 5Cover N90982902
- 6Screw N91118902
- 7Screw N91187501
- 8Vent 06F103154
- 9Part 026103139
- 10Part N10617101
- 11Cover 06H103113
- 12Locking D000600A2
- 13Sleeve 022103139B
- 14Flange 06K103171G
- 15Seal D176501A1
- 16Bolt WHT005227
- 17Pipe 06H103199K
- 18Repair Kit 06H198205N
- 19Seal 06H103085J
- 22Shaft 06H103559A
- 23Seal Ring WHT001905
- 24Chn Sprckt 06H103319Q
- 25Washer WHT001396A
- 26Screw N10544904
- 27Case 06K109210AF
- 28Seal 06L103085B
- 29Bungs 06H115418D
- 30Bolt N91096702
- 31Pulley 06H103731G
- 32Bolt WHT001163B
- 33Protection 06H109121G
- 34Bolt N10156206
- 35Separator 06H103464L
- 36Seal 06H103517D
- 37Bolt N10196103
- 38Oil Sump 06J103603BE
- 39Screw N91048802
- 40Screw N91050601
- 41Insert 06H103138R
- 42Valve 06H103156
- 43Seal 06J103147
- 45Bolt N10124304
- 47Screw N91167901
- 48Seal Ring N0138158
- 50Bolt N91096701
- 51Coverplate 06J103645D
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Amarok twin cab | 2016-2022 | 46 | 1 | |
| Amarok twin cab | 2012-2016 | 46 | 1 | DF0 |
Diagrams & fitment data powered by oemdiagrams.com
06H103600AC Volkswagen Oil Pan - Lower Part | Genuine OEM is fitted on: Amarok twin cab 2016-2022; Amarok twin cab 2012-2016.
