06H103600R Oil Sump-Lower Part
- 06H103600GNot stocked
Nov 2010 - 06H103600PNot stocked
May 2011 - 06H103600RThis pageNot stocked
Jun 2013 - 06H103600AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

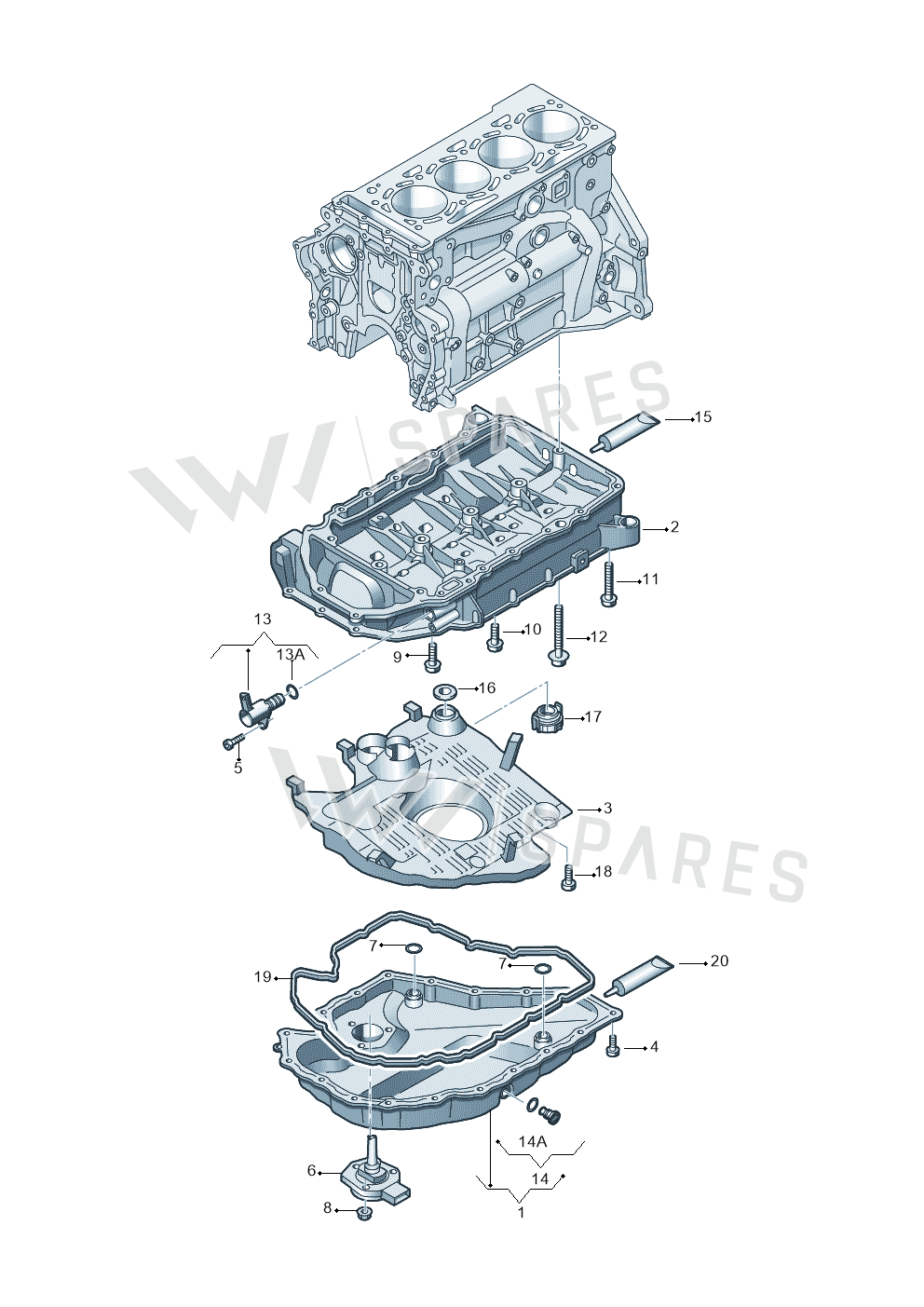

8 vehiclesOil Sump-lower Part — locate Oil Sump-Lower Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Oil Sump 06H103600AA
- 2Oil Sump 06H103603AK
- 2Oil Sump 06H103603AN
- 3Insert 06H103138E
- 4Bolt N91096701
- 8Collar Nut N01508210
- 9Screw N91048802
- 11Screw N91050601
- 13Part 06H115243J
- 13Part 06H115243F
- 13Part 06H115243L
- 13ASeal Ring N91056801
- 14Seal Ring N0138157
- 14Part N91167901
- 14Part N91101402
- 15Seal D176501A1
- 16Seal 06J103147
- 17Valve 06H103156
- 18Bolt N10124304
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A5 Sportback | 2011-2017 | 1 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 1 | ||
| audi a6 2.0 tdi | 2010-2015 | 8 | 1 | |
| Audi A4 Av. Allroad | 2008-2016 | 8 | 1 | D2D |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 8 | 1 | |
| Audi A5 Cabrio 2.0 | 2008-2012 | 8 | 1 | D67 |
| Audi A5/S5 Coupe 08> | 2007- | 8 | 1 | D6J |
| AUDI A4 08> | 2007- | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Sump-Lower Part is fitted on: Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-.
