06H105021H Crankshaft
- 06H105021HThis pageNot stocked
Jun 2015 - 06H105021LCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 12.87 kg
- Shipping size (L × W × H)
- 40 × 16 × 16 cm
- Customs (HS) code
- 84831029
Parts diagram & fitment

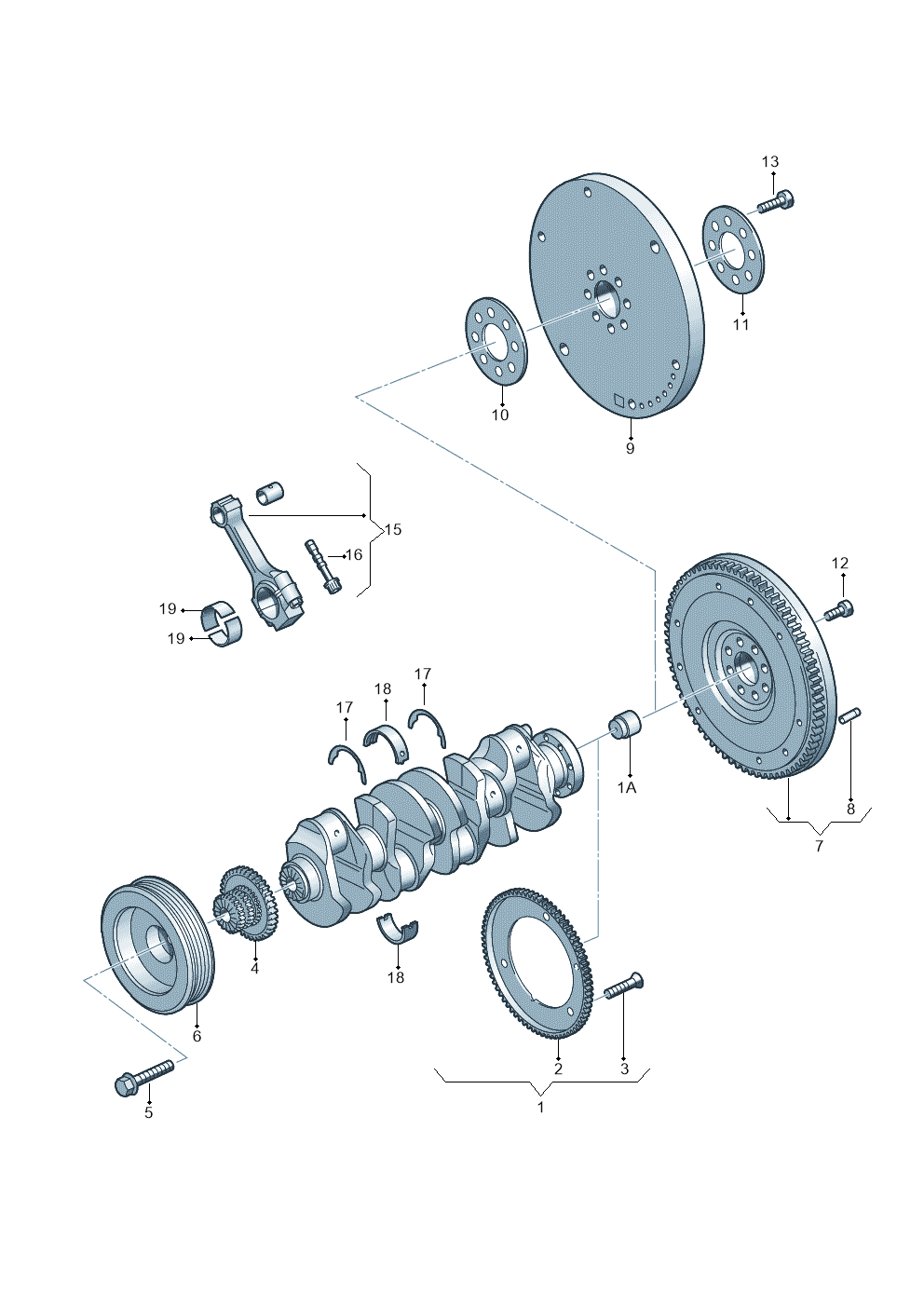

9 vehiclesCrankshaft — locate Crankshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Crankshaft 06H105021G
- 1Crankshaft 06H105021F
- 1ABearing 06B105313D
- 2Rotor 050105189B
- 3Screw 053105229A
- 4Chn Sprckt 06H105209AT
- 5Bolt WHT001760
- 6Damper 06H105243G
- 7Flywheel 06J105266AE
- 7Flywheel 06J105266D
- 7Flywheel 06J105266G
- 7Flywheel 06J105266H
- 7Flywheel 06J105266S
- 7Flywheel 06J105266K
- 9Clutch Pla 06J105327
- 10Shim 035105303A
- 11Washer 023105301
- 12Screw N90665001
- 13Bolt N90946201
- 15Con Rod 06J198401
- 15Con Rod 06J198401B
- 15Con Rod 06J198401F
- 16Bolt 077105425E
- 16Bolt WHT001319
- 17Washer WHT000033B
- 18Brg Shell 06H105591A
- 18Brg Shell 06H105591L
- 18Bearing 06H105561B
- 18Bearing 06H105561C
- 18Bearing 06H105561L
- 18Bearing 06H105561M
- 18Brg Shell 06H105591B
- 18Brg Shell 06H105591M
- 19Bearing 06H105701C
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 1 | 1 | CDAA | TE6 |
| Altea XL Reference | 2010-2013 | 1 | 1 | CDAA | TE6 |
| Leon Stylance | 2010-2012 | 1 | 1 | CDAA | TE6 |
| Audi A5 Cabrio 2.0 | 2008-2012 | 1 | 1 | ||
| Exeo ST Reference | 2008-2011 | 1 | 1 | CDHA,CDHB | G0K |
| Audi A5/S5 Coupe 08> | 2007- | 1 | 1 | CDHB | |
| AUDI A4 08> | 2007- | 1 | 1 | CDHA,CDHB | |
| ALTEA 07> | 2006- | 1 | 1 | CDAA | TE6 |
| LEON 06> | 2005- | 1 | 1 | CDAA | TE6 |
Diagrams & fitment data powered by oemdiagrams.com
Crankshaft is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Audi A5 Cabrio 2.0 2008-2012; Exeo ST Reference 2008-2011; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; ALTEA 07> 2006-; LEON 06> 2005-.
