06J103603AF Engine Oil Sump Upper Part
- 06J103603AFThis pageNot stocked
Dec 2015 - 06J103603BFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

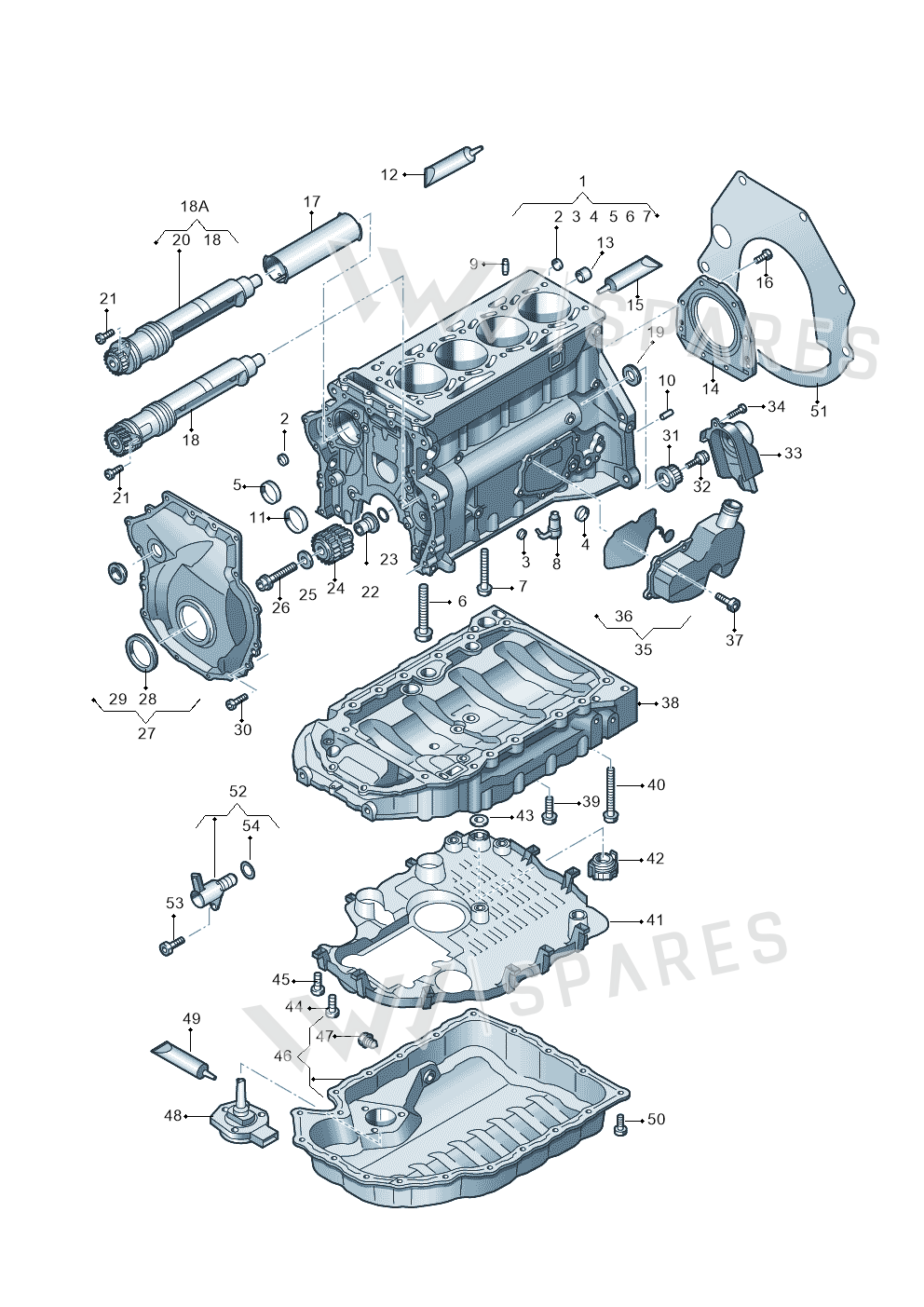

31 vehiclesEngine Oil Sump Upper Part — locate Engine Oil Sump Upper Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 06H103011H
- 1Crankcase 06H103011AP
- 2Cover N0119078
- 3Cover N0119104
- 4Cover N0119019
- 5Cover N90982901
- 6Screw N91118902
- 7Screw N91187501
- 8Vent 06J103154B
- 8Vent 06F103154
- 9Part 026103139
- 10Part N10617101
- 11Cover 06H103113
- 12Locking D000600A2
- 13Sleeve 022103139B
- 14Flange 06K103171G
- 15Seal D174003A2
- 16Bolt N91073301
- 17Pipe 06H103199K
- 18ARepair Kit 06H198205F
- 19Seal 06H103085J
- 22Shaft 06H103559
- 23Seal Ring WHT001905
- 24Chn Sprckt 06H103319Q
- 25Washer WHT001396
- 26Screw N10544904
- 27Case 06H109210Q
- 28Seal 06H103085G
- 29Bungs 06H115418D
- 30Bolt N91096702
- 31Pulley 06H103731F
- 32Bolt WHT001163B
- 33Protection 06H109121G
- 34Bolt N10156206
- 35Separator 06H103464L
- 36Seal 06H103517D
- 37Bolt N10196103
- 38Oil Sump 06J103603T
- 39Screw N91048802
- 40Screw N91050601
- 41Insert 06J103138AE
- 41Insert 06J103138F
- 42Valve 06H103156
- 43Seal 06J103147
- 45Bolt N10124304
- 46Oil Sump 06J103600T
- 47Seal Ring N0138158
- 47Screw N91167901
Vehicle fitment table31
Europe (31)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Yeti | 2013-2017 | 38 | 1 | ||
| superb | 2013-2015 | 38 | 1 | ||
| Altea XL Reference | 2013-2013 | 38 | 1 | TD6 | |
| Tiguan 4Motion | 2011-2018 | 38 | 1 | CCZB,CCZC, | |
| Passat CC | 2011-2016 | 38 | 1 | ||
| Audi Q3 quattro | 2011-2015 | 9 | 1 | D2D | |
| Golf | 2011-2013 | 38 | 1 | CCZB | |
| Sharan Blue Motion | 2010-2015 | 38 | 1 | D67 | |
| Passat saloon | 2010-2015 | 38 | 1 | ||
| Eos BlueMotion | 2010-2015 | 38 | 1 | CCZA,CCZB | |
| jetta | 2010-2014 | 38 | 1 | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 9 | 1 | TE6 | |
| Altea XL Reference | 2010-2013 | 38 | 1 | TD6 | |
| Alhambra Stylance | 2010-2013 | 38 | 1 | ||
| Leon Stylance | 2010-2012 | 38 | 1 | TD6 | |
| golf estate | 2009-2013 | 9 | 1 | ||
| Yeti | 2009-2013 | 38 | 1 | ||
| Scirocco 2.0 | 2008-2014 | 38 | 1 | CCZB | |
| Audi A3 Sportback | 2008-2013 | 9 | 1 | D67 | |
| superb comfort | 2008-2013 | 38 | 1 | ||
| octavia ambiente | 2008-2013 | 38 | 1 | ||
| Passat CC | 2008-2012 | 38 | 1 | CCZA | G0 |
| golf 2.0 | 2008-2011 | 38 | 1 | CCZB,CDAA | |
| passat estate | 2008-2011 | 38 | 1 | CCZA | TD6 |
| EOS 2.0 | 2008-2010 | 38 | 1 | CCZA,CCZB | |
| TIGUAN 08> | 2007- | 38 | 1 | CCZA,CCZC | G0 |
| Audi TT Coupe/Roadster 08> | 2007- | 9 | 1 | CCZA,CDAA | TD6 |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 9 | 1 | D2L | |
| ALTEA 07> | 2006- | 38 | 1 | TD6 | |
| LEON 06> | 2005- | 38 | 1 | TD6 | |
| TOLEDO 05> | 2004- | 38 | 1 | TD6 |
