06J145713D Exhaust Manifold With Turbocharger
- 06J145713ANot stocked
Jan 2010 - 06J145713DThis pageNot stocked
Aug 2010 - 06J145713FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

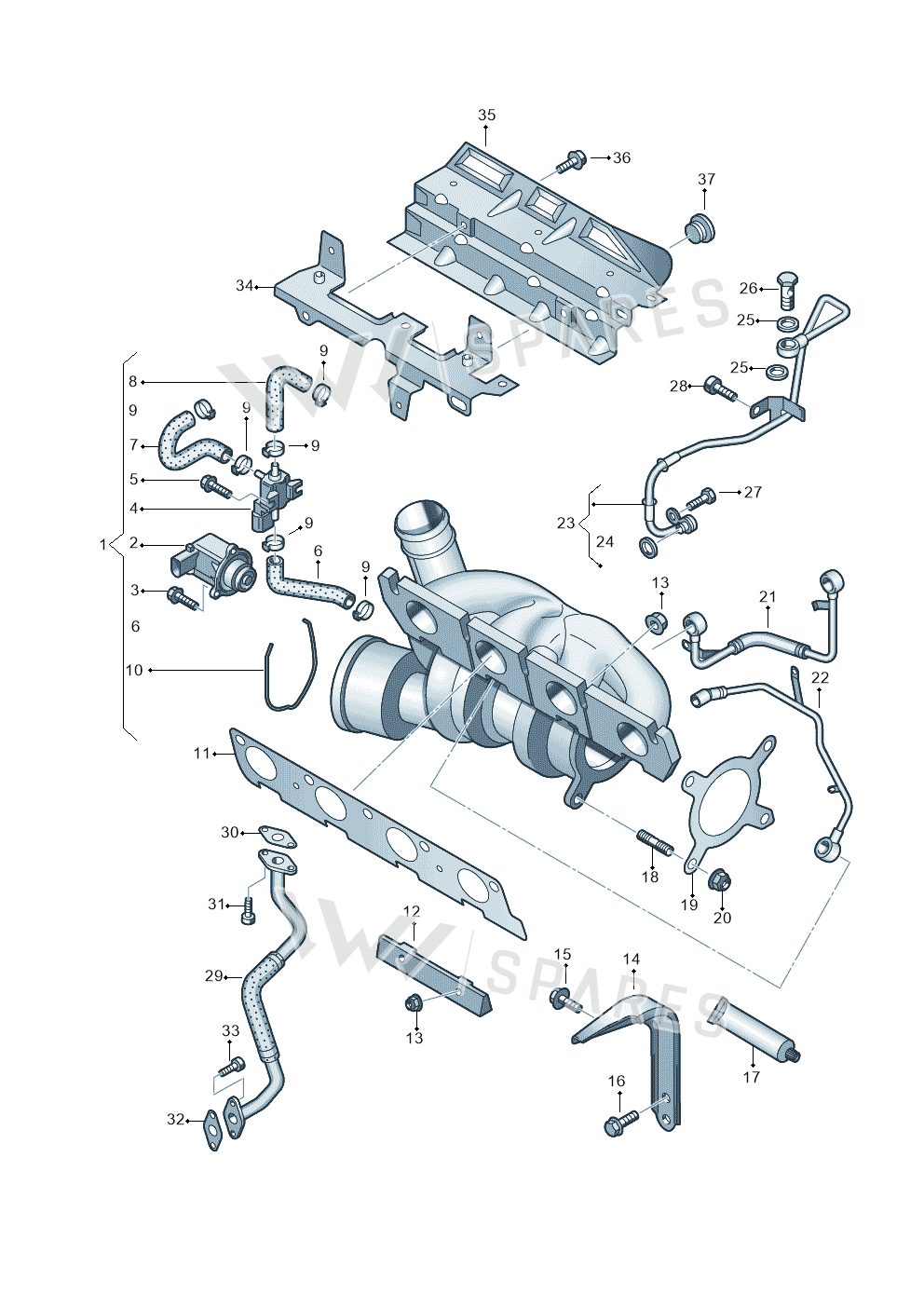

11 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Turbo 06J145702KX
- 1Turbo 06J145702K
- 1Turbo 06J145713F
- 1Turbo 06J145713K
- 1Turbo 06J145713FX
- 1Turbo 06J145713KX
- 2Valve 06H145710D
- 2Valve 06H145710C
- 3Screw N10459201
- 4Valve 06F906283F
- 6Hose 06J145718D
- 7Hose 06J145718E
- 8Hose 06J145718F
- 9Clamp 3C0131483
- 10Clip 1J0145769D
- 11Seal 06F253039F
- 12Bracket 06F253709A
- 13Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 14Support 06J145536M
- 15Screw N91103701
- 16Screw N91117901
- 17Paste G052112A3
- 18Bolt N0445203
- 19Seal 1K0253115AB
- 20Collar Nut N10286108
- 21Water Pipe 06J121492C
- 22Water Pipe 06J121497H
- 23Oil Pipe 06J145778H
- 24Seal Ring N90067202
- 25Seal Ring N0138514
- 26Screw WHT000223
- 27Screw N10619201
- 29Oil Pipe 06H145735G
- 30Seal 06F145757L
- 34Retainer 06J145383E
- 34Retainer 06J145383D
- 35Cover 06H129597K
- 36Screw N10627801
- 37Screw N0160255
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| new beetle | 2011-2016 | 1 | 1 | CBFA | TQ2 |
| jetta variant | 2009-2014 | 1 | 1 | CBFA | 0GT |
| Jetta Vagon 08> | 2008- | 1 | 1 | CBFA | 0GT |
| Audi A3 Sportback | 2008-2013 | 1 | 1 | CBFA | TQ2 |
| Passat CC | 2008-2012 | 1 | 1 | CBFA | |
| golf 2.0 | 2008-2011 | 1 | 1 | CBFA | D2L,0GT |
| passat estate | 2008-2011 | 1 | 1 | CBFA | TD6,TQ2 |
| jetta | 2008-2011 | 1 | 1 | ||
| EOS 2.0 | 2008-2010 | 1 | 1 | PR:0GT | TQ2,0GT |
| GOLF VARIANT 07> | 2007- | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 1 | 1 | 0GT |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: new beetle 2011-2016; jetta variant 2009-2014; Jetta Vagon 08> 2008-; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; Jetta "USA"05> 2005-.
