06J145713S Exhaust Manifold With Turbocharger
- 06J145713HNot stocked
Jul 2011 - 06J145713QNot stocked
Nov 2016 - 06J145713SThis pageNot stocked
Apr 2017 - 06J145722DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

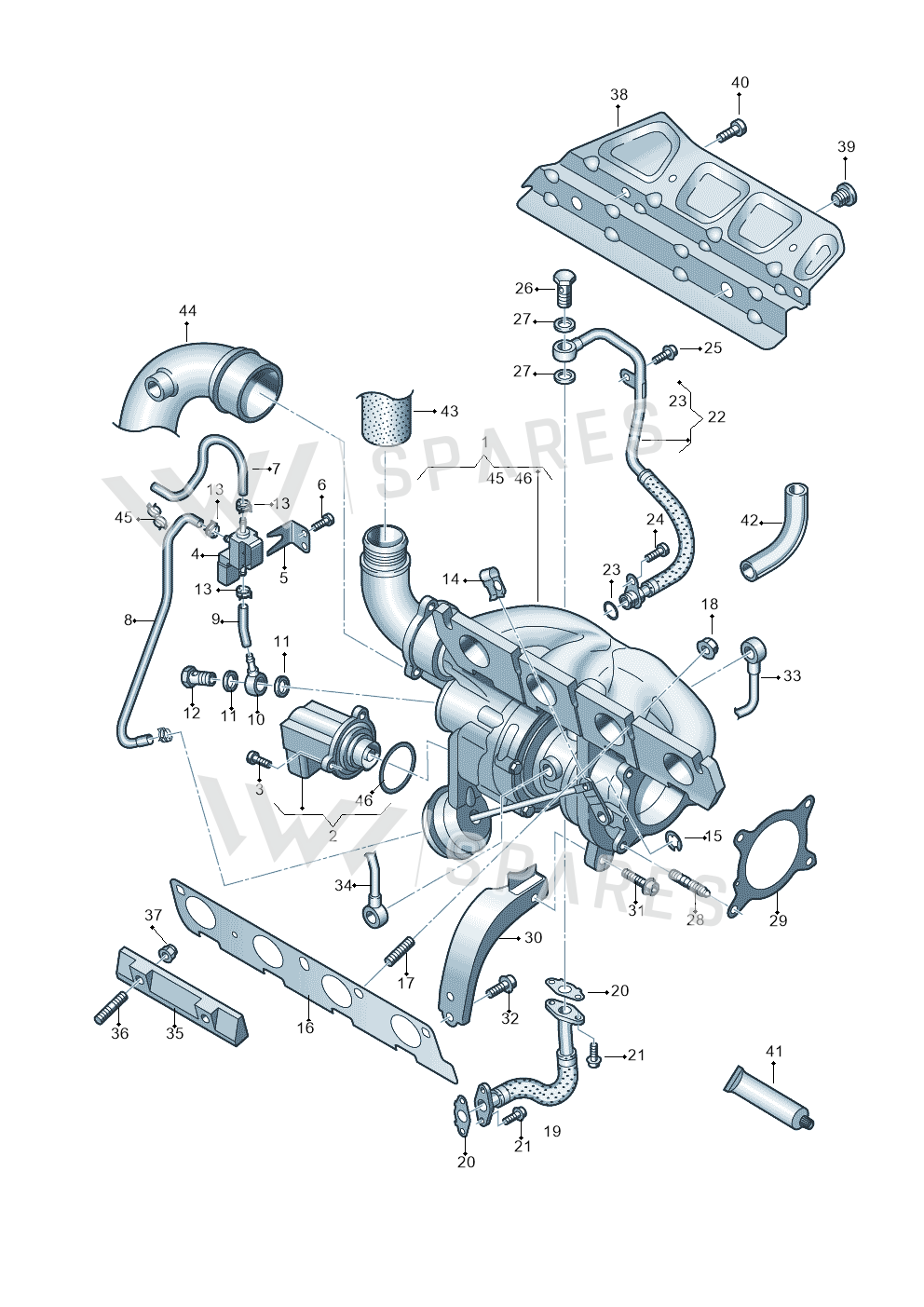

6 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Part 06J145722D
- 1Part 06J145722DX
- 2Valve 06H145710C
- 2Valve 06H145710J
- 3Bolt N10546404
- 4Valve 07L906283C
- 5Bracket 06J115261G
- 6Screw N10459201
- 7Hose 06J145718Q
- 8Hose 06J145718N
- 9Hose 06J145718P
- 10Connection 06A133663G
- 11Seal Ring WHT006395
- 12Screw 06A133663H
- 13Clamp 3C0131483
- 14Clip 06J145220A
- 15Part N01243611
- 16Seal 06F253039F
- 17Bolt N0145555
- 18Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 19Oil Pipe 06J145735P
- 20Seal 06F145757L
- 21Screw N10619201
- 22Oil Pipe 06J145778Q
- 23Seal Ring N90067202
- 25Bolt N10335206
- 26Screw WHT000223
- 27Seal Ring N0138514
- 28Bolt N10730201
- 30Support 06J145536N
- 31Screw N91103701
- 32Screw N91117901
- 35Bracket 06F253709A
- 36Bolt 06F103397
- 38Cover 06J129597E
- 39Screw N0160255
- 40Screw N10572403
- 41Paste G052112A3
- 42At Heat Reflective Mat Heat Reflective Mat Heat 06J133833A
- 45Binder 4A0820199
- 46Seal Ring 06E145117A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caravelle | 2015-2019 | 1 | 1 |
| Single-cab transp. | 2015-2019 | 1 | 1 |
| California Camper | 2015-2019 | 1 | 1 |
| transp. caravelle | 2011-2015 | 1 | 1 |
| transp. dropside | 2011-2015 | 1 | 1 |
| California Camper | 2011-2015 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
