06J145735C Oil Pipe
- 06J145735JNot stocked
May 2007 - 06J145735CThis pageNot stocked
Dec 2008 - 06H145735HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

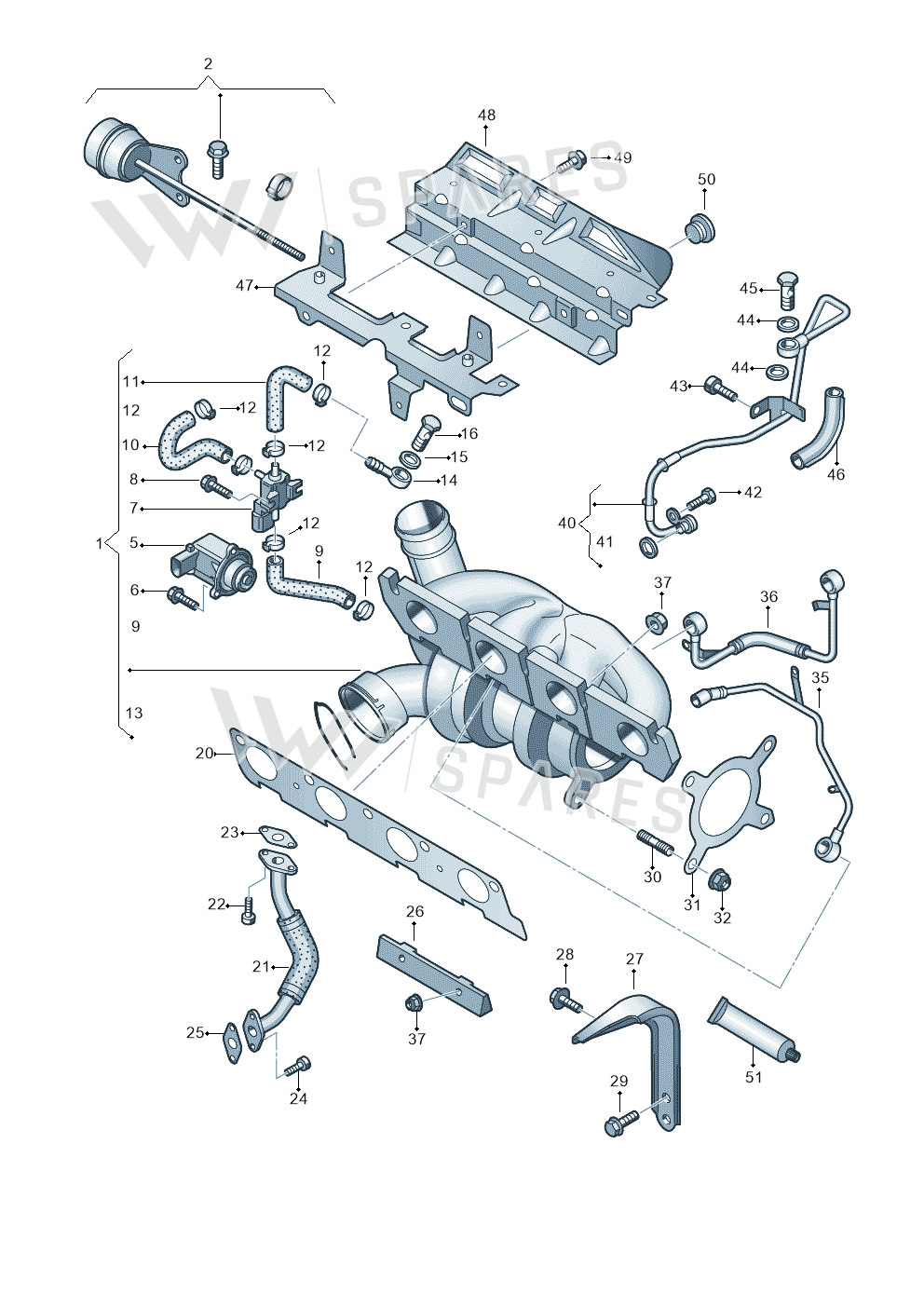

13 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Turbo 06J145702CX
- 1Turbo 06J145702C
- 1Turbo 06J145701R
- 1Turbo 06J145713F
- 1Turbo 06J145713T
- 1Turbo 06J145722B
- 1Turbo 06J145701RX
- 1Turbo 06J145713FX
- 1Turbo 06J145713TX
- 1Turbo 06J145722BX
- 2Vacuum Uni 06J145716
- 2Vacuum Uni 06J145716A
- 5Valve 06H145710D
- 5Valve 06F145710G
- 5Valve 06H145710C
- 5Valve 06H145710J
- 6Bolt N10546404
- 7Valve 06F906283F
- 8Screw N10459201
- 9Hose 06J145718B
- 9Hose 06J145718D
- 10Hose 06J145718
- 10Hose 06J145718E
- 11Hose 06J145718C
- 11Hose 06J145718F
- 12Clamp N10203601
- 12Clamp 3C0131483
- 13Clip 1J0145769D
- 13Seal Ring WHT006482
- 13Seal Ring WHT007118
- 13Clip 1K0145769B
- 14Connection 063133662B
- 15Seal Ring N0138302
- 16Screw N91043801
- 20Seal 06F253039F
- 21Oil Pipe 06H145735H
- 21Oil Pipe 06H145735G
- 22Screw N10619201
- 23Seal 06F145757L
- 26Bracket 06F253709A
- 27Support 06J145536C
- 27Support 06J145536L
- 27Support 06J145536M
- 28Screw N91103701
- 29Screw N91117901
- 30Bolt N0445203
- 31Seal 1K0253115AB
- 32Collar Nut N10286108
Vehicle fitment table13
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Passat CC | 2008-2012 | 20 | 1 | TJ2 | |
| passat estate | 2008-2011 | 29 | 1 | ||
| EOS 2.0 | 2008-2010 | 29 | 1 | TQ2,TD6 | |
| Passat/4Motion 08 | 2007- | 20, 29 | 1 | TJ2 | |
| Audi A5/S5 Coupe 08> | 2007- | 20 | 1 | CABD | TH2 |
| AUDI A4 08> | 2007- | 20 | 1 | CABA,CABB | TH2 |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 20 | 1 | TJ2 | |
| ALTEA 07> | 2006- | 20 | 1 | TJ2 | |
| LEON 06> | 2005- | 20 | 1 | TJ2 | |
| Audi A3/S3/quattro | 2005-2007 | 20 | 1 | TJ2 | |
| TOLEDO 05> | 2004- | 20 | 1 | TJ2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| MAGOTAN (PASSAT) 07> | 2007- | 20 | 1 | CBL | |
| Golf/Rabbit 08> | 2007- | 29 | 1 | TQ2 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pipe is fitted on: Passat CC 2008-2012; passat estate 2008-2011; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; ALTEA 07> 2006-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; MAGOTAN (PASSAT) 07> 2007-; Golf/Rabbit 08> 2007-.
