06J198509 Repair Set For Fuel Line
- 06J127509ENot stocked
Dec 2006 - 06J198509This pageDiscontinued
Apr 2022
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

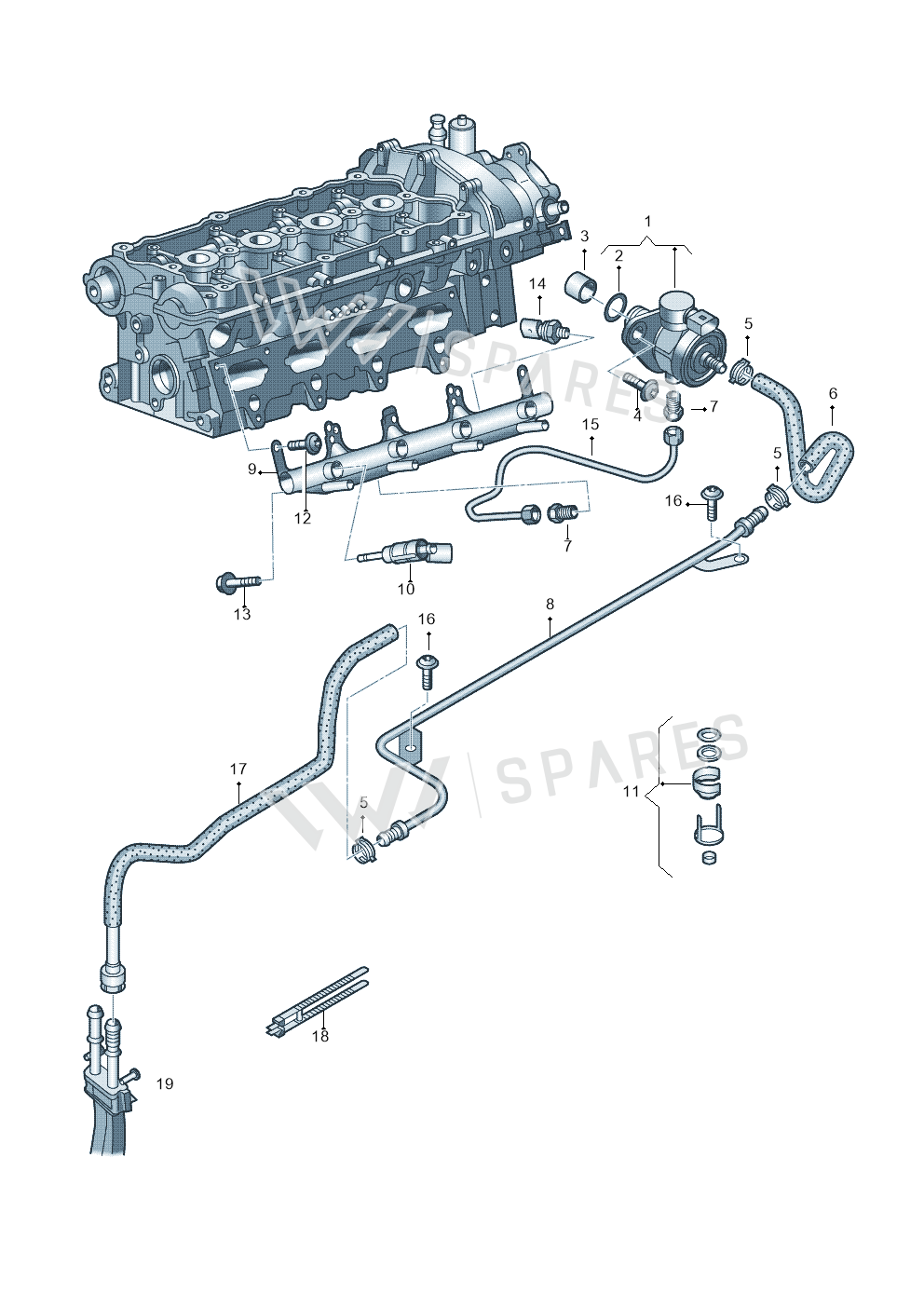

16 vehiclesRepair Set For Fuel Line — locate Repair Set For Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Pump 06H127025R
- 2Seal Ring WHT005184
- 3Tappets 06L109311
- 3Tappets 06H109311B
- 4Bolt N10700201
- 5Clamp N90986501
- 6Hose 06J133986R
- 7Adapter 06E127065G
- 9Rail 06J133317AB
- 9Rep Set 06J198510C
- 10Valve 06H906036P
- 10Valve 06H906036G
- 11Repair Kit 06J998907B
- 12Screw N10721401
- 13Bolt N91089601
- 14Sensor 06J906051D
- 15Fuel Line 06J127501T
- 15Fuel Line 06J127501M
- 18Binder 4A0820199
Vehicle fitment table16
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| new beetle | 2011-2016 | 8 | 1 | ||
| new beetle cabriolet | 2011-2016 | 8 | 1 | ||
| superb comfort | 2008-2013 | 7 | 1 | ||
| Passat CC | 2008-2012 | 7 | 1 | ||
| passat estate | 2008-2011 | 7 | 1 | ||
| Passat/4Motion 08 | 2007- | 7 | 1 | TJ2 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 7 | 1 | TJ2 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 26 | 1 | BZB | TJ2 |
| ALTEA 07> | 2006- | 7 | 1 | TJ2 | |
| LEON 06> | 2005- | 7 | 1 | TJ2 | |
| Audi A3/S3/quattro | 2005-2007 | 7 | 1 | TJ2 | |
| TOLEDO 05> | 2004- | 7 | 1 | TJ2 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 7 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| MAGOTAN (PASSAT) 07> | 2007- | 7 | 1 | BYJ | TT2 |
| OCTAVIA "CN."07> | 2007- | 7 | 1 | ||
| BORA-FAW "CN" 06> | 2005- | 7 | 1 |
