06K103171F Sealing Flange
- 06K103171ANot stocked
Sep 2014 - 06K103171FThis pageNot stocked
Mar 2016 - 06K103171GNot stocked
Sep 2019 - 06K103171HNot stocked
Apr 2021 - 06K103171PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

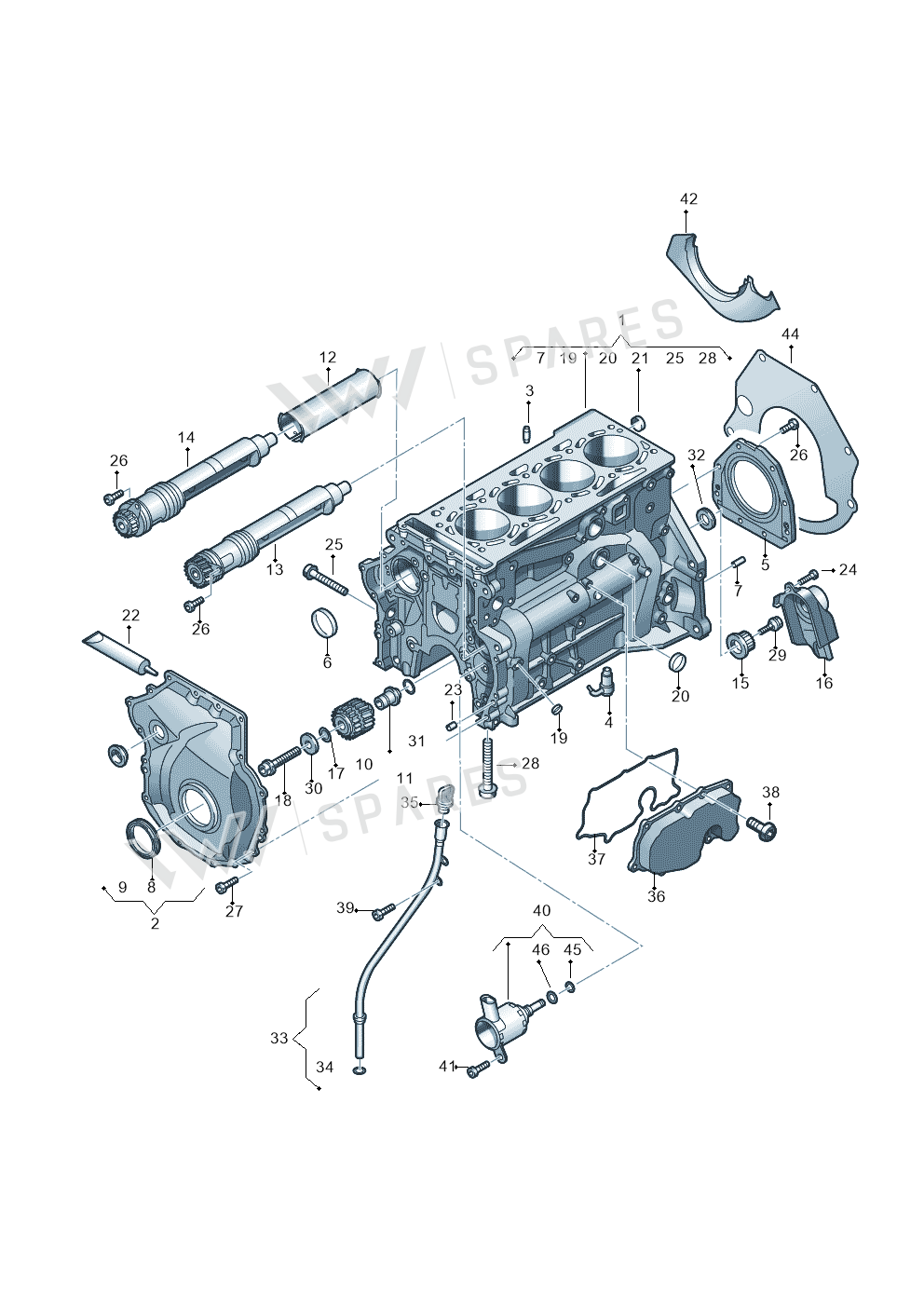

26 vehiclesSealing Flange — locate Sealing Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 2Case 06K109210AF
- 3Part 026103139
- 4Vent 06L103154B
- 5Flange 06K103171G
- 6Cover 036103113A
- 7Sleeve 022103139B
- 8Seal 06L103085B
- 9Bungs 06H115418D
- 10Chn Sprckt 06K103319A
- 11Shaft 06H103559B
- 12Pipe 06K103199A
- 13Repair Kit 06H198205AJ
- 15Pulley 06H103731G
- 16Protection 06K109121E
- 18Screw N10544904
- 19Cover N0119104
- 20Cover N0119019
- 21Cover N0119078
- 22Seal D174003M2
- 23Part N10617101
- 24Screw N91096901
- 25Screw N91187501
- 26Bolt N10766201
- 27Bolt N91096702
- 28Screw N91118902
- 29Bolt WHT001163B
- 30Washer WHT001396A
- 31Seal Ring WHT001905
- 32Seal 06K103085
- 32Seal 06K103085P
- 33Tube 06K115610E
- 34Seal Ring WHT003463
- 35Oil Dipsti 06K115611
- 39Bolt N10451409
- 40Valve 06K115243G
- 41Bolt N91096701
- 44Spacer Pl 06K103551G
- 45Seal Ring WHT007316
- 46Seal Ring WHT007317
Vehicle fitment table26
Europe (24)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Octavia | 2017-2020 | 5 | 1 | DF4 |
| Ibiza Stylance | 2015- | 5 | 1 | |
| Superb Combi | 2015-2024 | 5 | 1 | |
| audi a4 2.0 | 2015-2019 | 5 | 1 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 5 | 1 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 5 | 1 | |
| Audi Q3 2.0 TDI | 2014-2019 | 5 | 1 | |
| Audi A7 Sportback | 2014-2018 | 5 | 1 | |
| Audi A1 Sportback | 2014-2018 | 5 | 1 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 5 | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 5 | ||
| jetta | 2014-2017 | 5 | ||
| Golf Estate 1.4 | 2014-2017 | 5 | ||
| Audi A3 Cab. 1.4 | 2013-2016 | 5 | 1 | DF4 |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 5 | 1 | |
| Octavia | 2012-2017 | 5 | 1 | DF4 |
| Audi A3 Sportback | 2012-2016 | 5 | 1 | DF4 |
| Leon ST Stylance | 2012-2016 | 5 | 1 | |
| Audi A5 Sportback | 2011-2017 | 5 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 5 | 1 | |
| new beetle | 2011-2016 | 5 | ||
| new beetle cabriolet | 2011-2016 | 5 | ||
| audi a4 av. 2.0 tdi | 2011-2015 | 5 | 1 | D6J |
| jetta | 2010-2014 | 5 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3 Limousine 2.0 | 2015-2016 | 5 | 1 | D60 |
| golf 1.4 | 2013-2020 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Sealing Flange is fitted on: Octavia 2017-2020; Ibiza Stylance 2015-; Superb Combi 2015-2024; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Audi A7 Sportback 2014-2018; Audi A1 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Golf 1.4 BlueMotion 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Audi A3 Cab. 1.4 2013-2016; Audi Q5 qu. 2.0 TDI 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; new beetle 2011-2016; new beetle cabriolet 2011-2016; audi a4 av. 2.0 tdi 2011-2015; jetta 2010-2014; Audi A3 Limousine 2.0 2015-2016; golf 1.4 2013-2020.
