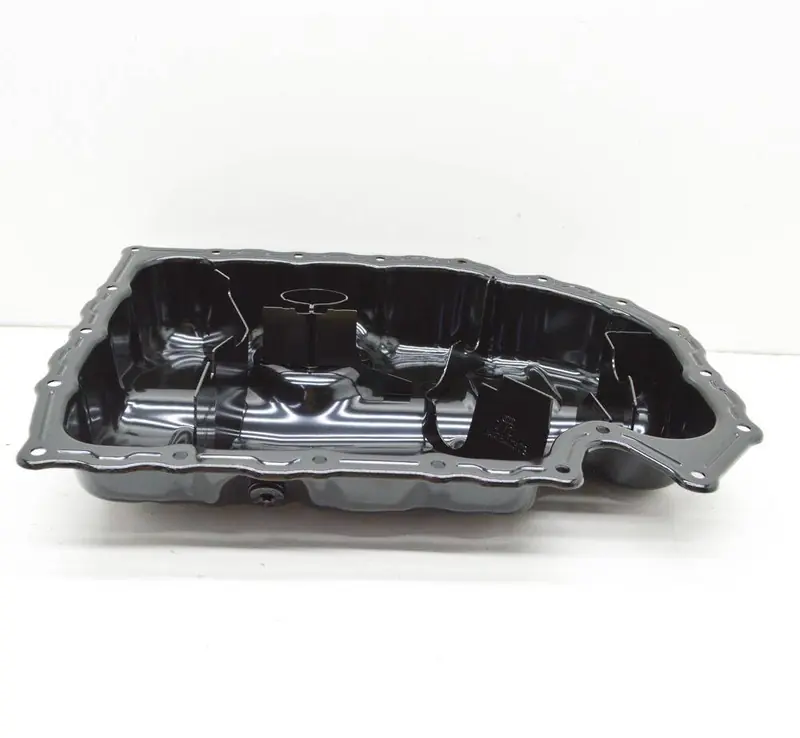

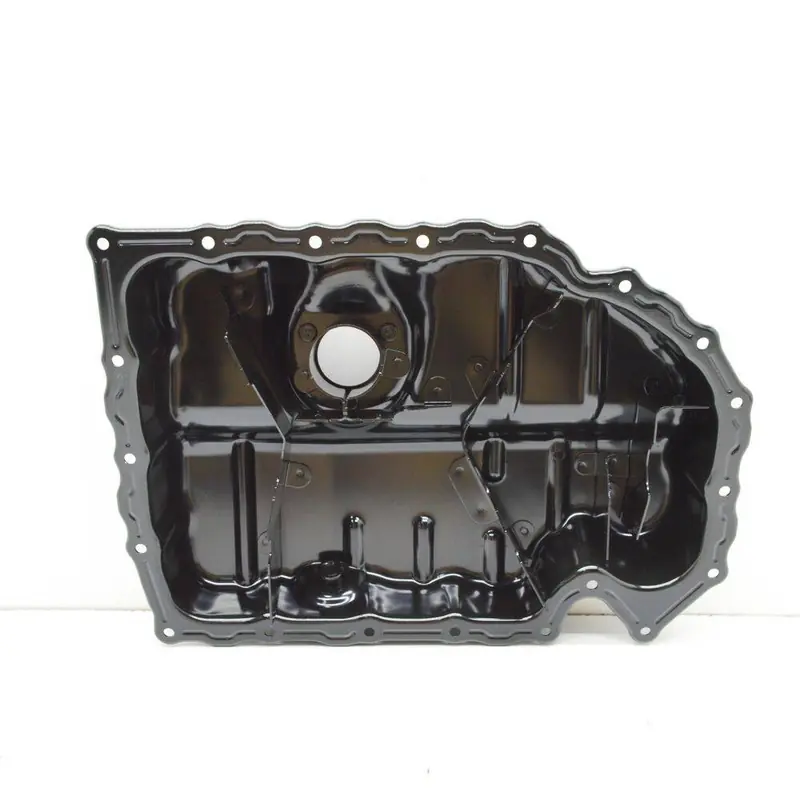

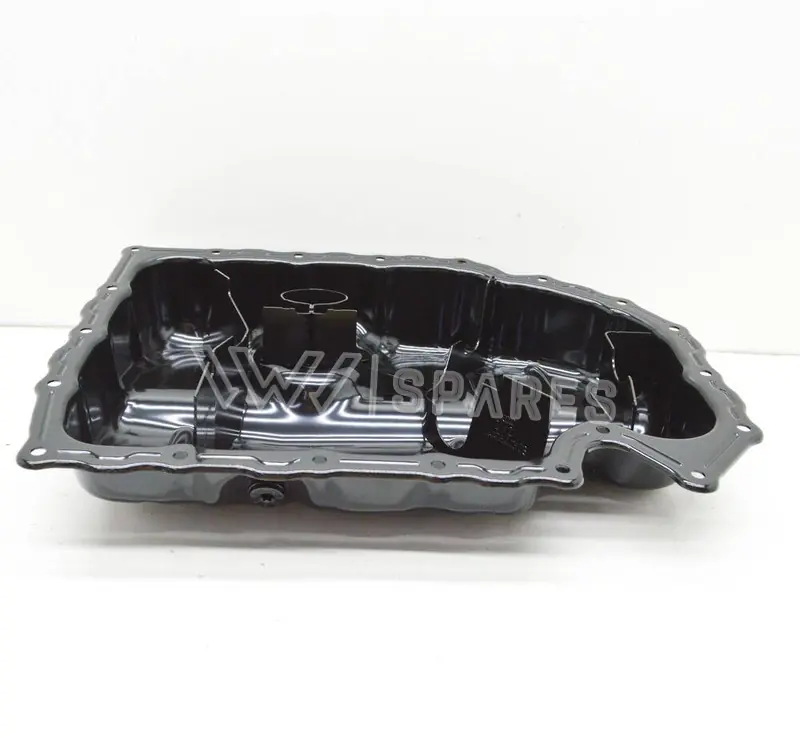

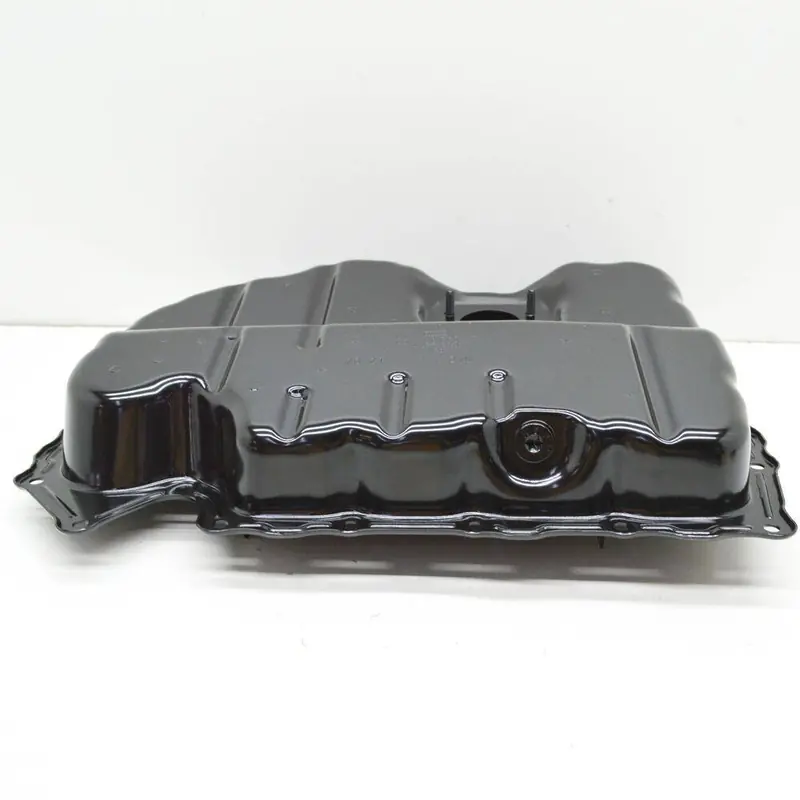

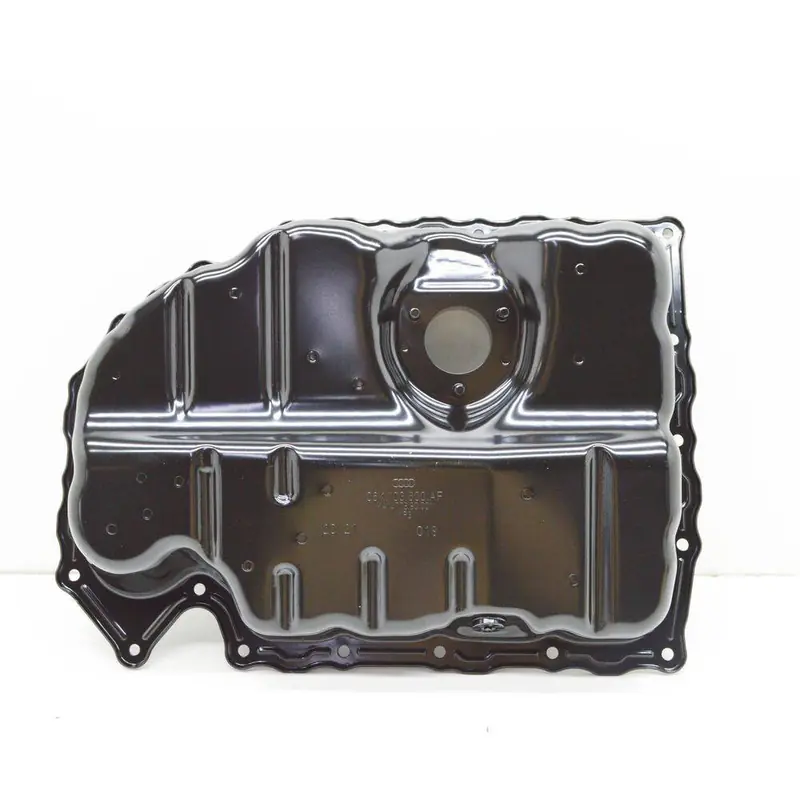

Genuine OEM Volkswagen Engine Oil Pan Sump, part number 06K103600AF. This vital component is located at the bottom of the engine, serving as a reservoir to hold and collect engine oil for the lubrication system. It ensures a constant supply of oil to protect critical engine parts. The oil pan is typically made from stamped steel, finished in black, and measures approximately 0.405 meters in length, weighing about 2.41 kg. Installing a genuine OEM oil pan guarantees a perfect seal, correct oil capacity, and durable construction, preventing leaks and ensuring the long-term health and performance of the engine.
Catalogue entry: OIL SUMP.
Fitted with: N91096701 BOLT, D176501A1 SEAL.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40.5 × 30 × 9 cm
- Shipping weight
- 2.41 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
26 vehiclesOil Sump-lower Part — locate 06K103600AF Volkswagen Engine Oil Pan Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 2Oil Sump 06K103603DE
- 2Case 06Q109210
- 3Part 026103139
- 3Screw N91167901
- 4Vent 06L103154G
- 4Vent 06Q103154A
- 4Seal Ring N0138158
- 5Flange 06K103171P
- 5Bolt N91096701
- 6Seal D176501A1
- 7Sleeve 022103139B
- 7Oel Sensor 06K907660C
- 8Seal 06L103085B
- 8Collar Nut N01508210
- 9Bungs 06H115418AA
- 9Bolt N91211201
- 10Chn Sprckt 06K103319C
- 10Screw N10766301
- 11Shaft 06H103559B
- 11Bungs 06K103035
- 12Pipe 06K103199L
- 12Pipe 06K103199T
- 13Bearing 06K103300C
- 13Valve 06K115243L
- 14Part 06N198205
- 15Pulley 06H103731G
- 15Screw N91173601
- 16Protection 06K109121E
- 16Screw N10765501
- 18Screw N10544904
- 23Part N10617101
- 24Screw N91096901
- 25Screw N91187501
- 26Bolt N10335206
- 27Bolt N91096705
- 27Bolt N91307701
- 28Screw N91118902
- 29Bolt WHT001163B
- 30Washer WHT001396A
- 31Seal Ring WHT001905
- 31Seal Ring WHT001905A
- 32Seal 06K103085P
- 33Tube 06Q115610B
- 34Seal Ring WHT003463
- 35Oil Dipsti 06K115611B
- 39Bolt N10451409
- 44Spacer Pl 06Q103551
- 45Spacer Pl 0GC103551A
Compatible / alternative parts(12)
Vehicle fitment table26
Europe (24)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| passat estate | 2023- | 1 | 1 |
| Tiguan 2.0 | 2023- | 1 | 1 |
| Superb Combi | 2023- | 1 | 1 |
| Multivan | 2021- | 1 | 1 |
| Formentor TSI CUPRA | 2020- | 1 | 1 |
| Leon style | 2019- | 1 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 1 | 1 |
| Octavia | 2019-2024 | 1 | 1 |
| Audi A3 Sportback | 2019-2021 | 3 | 1 |
| Audi A1 sportback 1.0 | 2018- | 3 | 1 |
| Tarraco FR | 2018-2024 | 1 | 1 |
| Audi Q3 quattro | 2018-2019 | 3 | 1 |
| T-Roc BlueMotion | 2017-2024 | 1 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 1 | 1 |
| Arteon | 2017-2023 | 1 | 1 |
| Karoq | 2017-2022 | 1 | 1 |
| Ateca Style | 2016- | 1 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 |
| Kodiaq | 2016-2024 | 1 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 3 | 1 |
| Superb Combi | 2015-2024 | 1 | 1 |
| Passat saloon | 2014-2024 | 1 | 1 |
| Audi TTS Coupe 2.0 | 2014-2023 | 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q6 | 2022- | 3 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 578 platform | 1 | 1 |
