06K121075AB Coolant Pipe
- 06K121075ABThis pageNot stocked
Apr 2018 - 06K121075ARCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

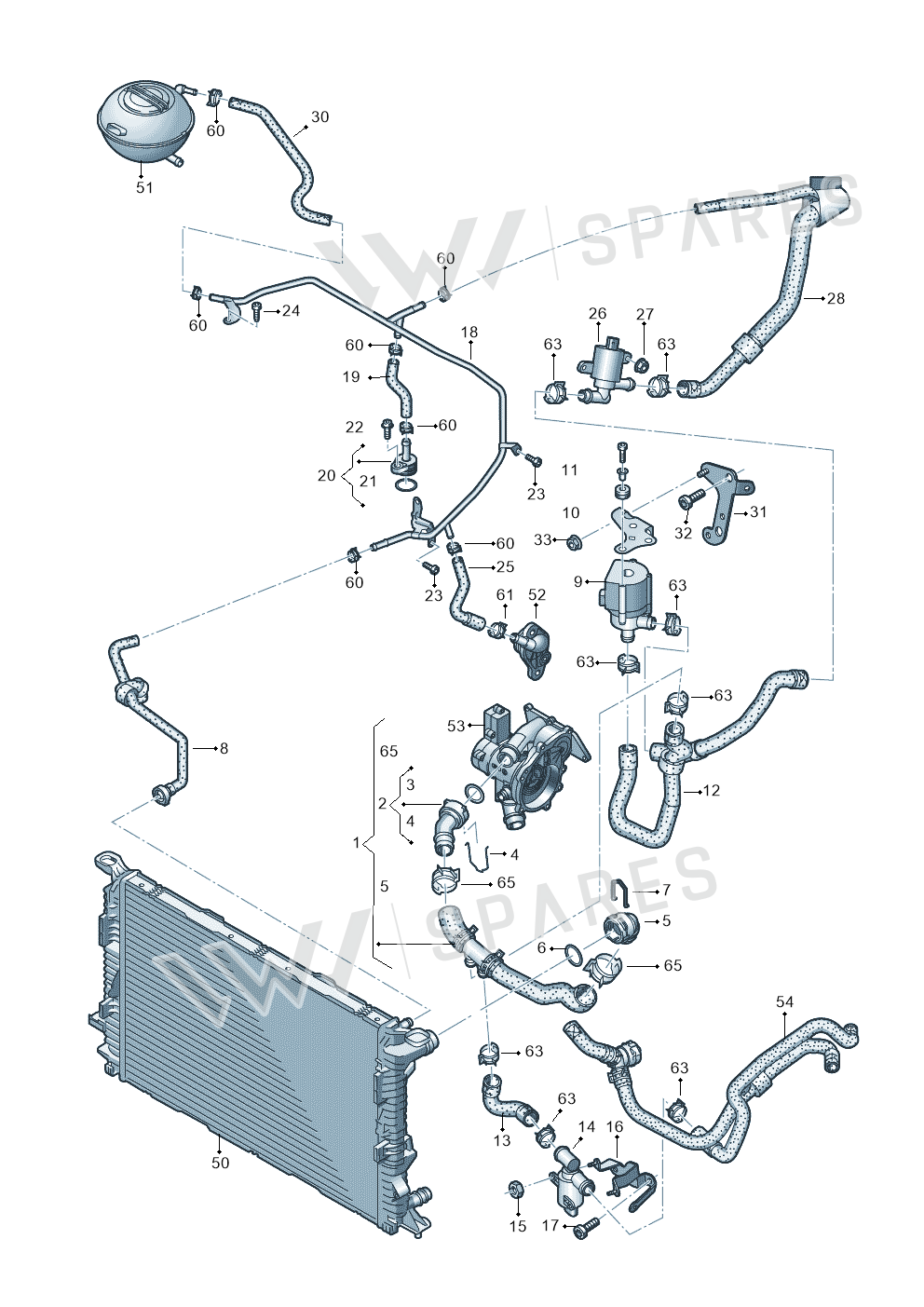

5 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Hose 5N0122101AR
- 1Hose 5N0122101BG
- 1Hose 5N0122101BH
- 1Hose 5N0122101AS
- 2Coupl Piece 5Q0122291AA
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Coupl Piece 5N0122291G
- 8Hose 5N0122447BB
- 9Water Pump 06H121601M
- 10Bracket 1K0121093CJ
- 11Fixing Set 5N0198093
- 12Hose 5N0122086F
- 13Hose 5N0121086H
- 14Valve 4H0121671G
- 15Collar Nut N01508210
- 16Retainer 5N0121093K
- 17Screw N10644901
- 18Water Pipe 06K121075AR
- 19Hose 06K121051P
- 20Adapter 06K121143
- 21Seal Ring WHT005440
- 22Screw N10619201
- 23Bolt N10335206
- 24Bolt N10654902
- 25Hose 06K121049A
- 27Bolt N10124308
- 28Hose 5N0122157BG
- 30Hose 5N0121447T
- 31Bracket 06K121093F
- 32Bolt N91178601
- 60Clamp N90686701
- 61Clamp N90770201
- 63Clamp N90687001
- 65Clamp N90687201
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q3 2.0 TDI | 2014-2019 | 18 | 1 |
| Scirocco 2.0 | 2014-2017 | 15 | 1 |
| new beetle | 2011-2016 | 15 | 1 |
| new beetle cabriolet | 2011-2016 | 15 | 1 |
| Golf Cabriolet | 2011-2016 | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi Q3 2.0 TDI 2014-2019; Scirocco 2.0 2014-2017; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016.
