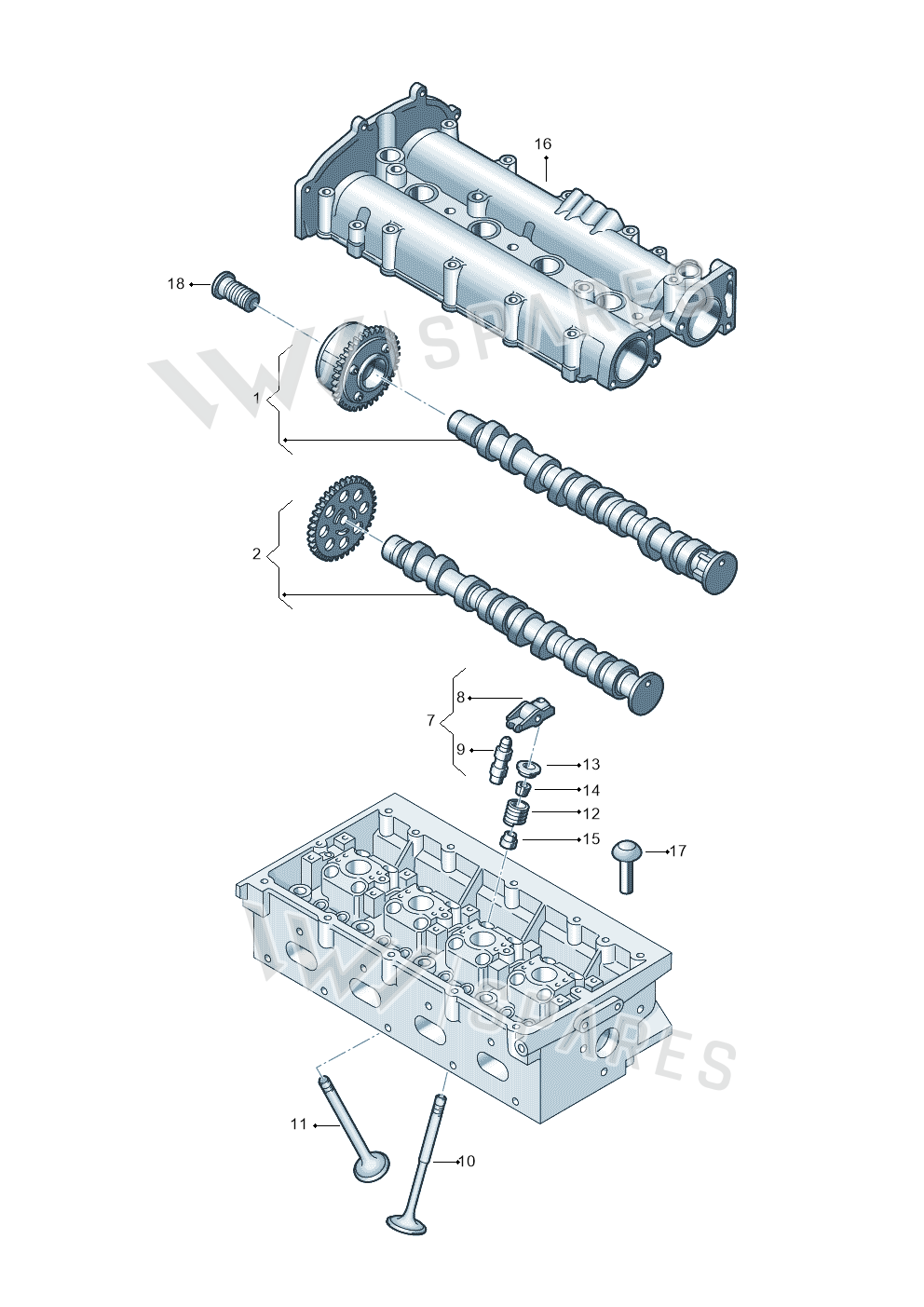

Camshaft exploded parts diagram — Audi Q5 qu. 2.0 TDI · 2012-2017, position 1
Exploded view
Audi Q5 qu. 2.0 TDI · 2012-2017 · position 1Full diagram ↓
06L109021C

06L109021C Camshaft

£637.06
£526.50 excl. VAT
Supersession roadforks into 2
  1. 06L109021CThis pageNot stocked
    Aug 2013
  2. 06L109021ENot stocked
    Feb 2015
  3. 06L109021HSuperseded
    Apr 2017
  1. 06L109021SCurrent number
  2. 06L109257HCurrent number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

9 vehicles

Camshaft — locate Camshaft in the official exploded view and explore the surrounding assembly.

Parts in this assembly13
Vehicle fitment table9

Europe (9)

VehicleYearsPos.QtyPR
Audi Q5 qu. 2.0 TDI2012-201711
Golf 1.4 BlueMotion2012-201711
Octavia2012-201711DF4
Audi A3 Sportback2012-201611DF4
Leon ST Stylance2012-201611DF4
Audi A5 Sportback2011-201711
Audi A5 Cabrio 2.02011-201711
audi a4 av. 2.0 tdi2011-201511D6J
Audi A4 Av. Allroad2008-201611

Diagrams & fitment data powered by oemdiagrams.com

Camshaft is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A4 Av. Allroad 2008-2016.
