06L109121 Toothed Belt Guard
- 06L109121ANot stocked
May 2016 - 06L109121This pageNot stocked
Oct 2018 - 06L109121BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

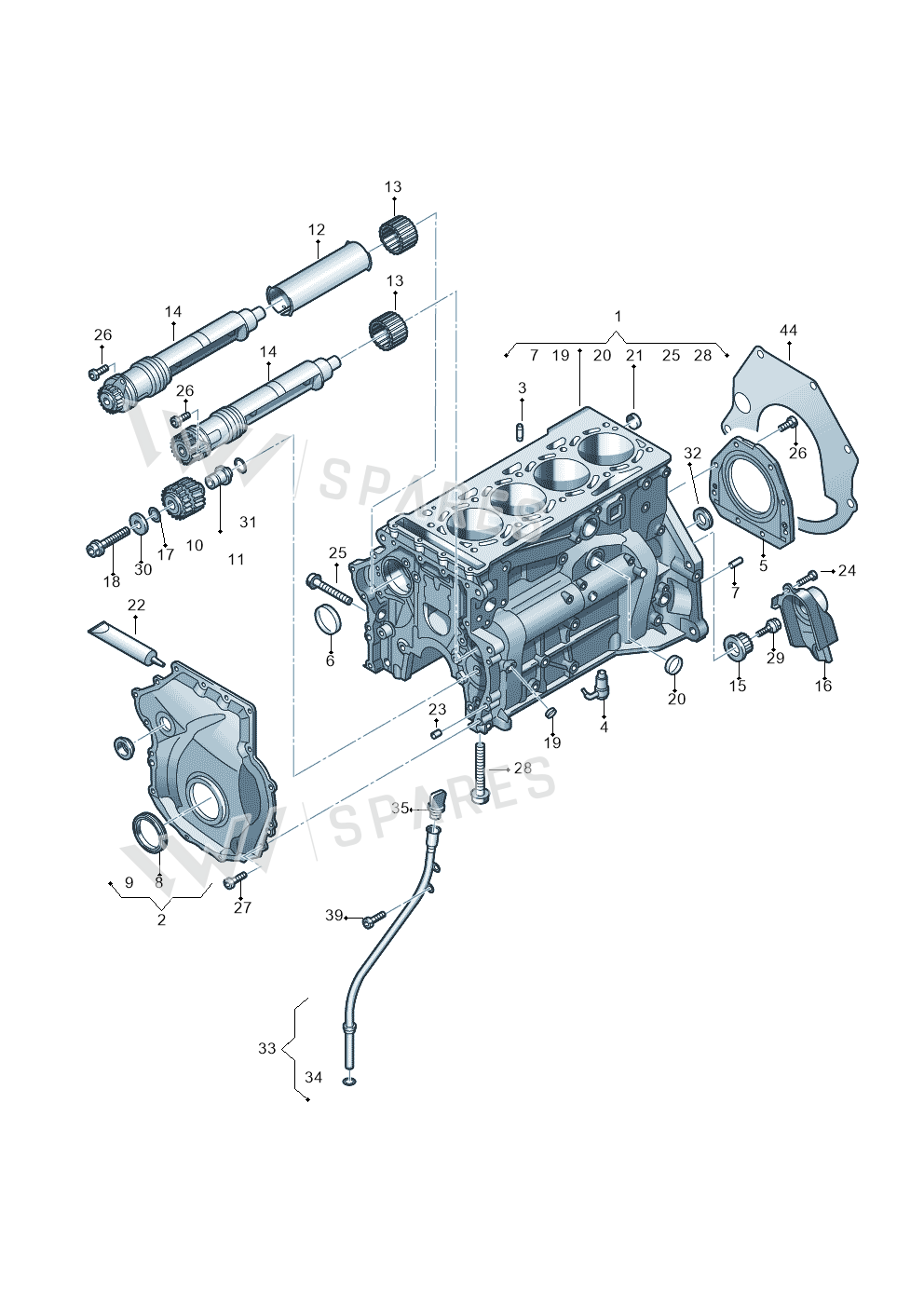

11 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 2Case 06K109210AJ
- 3Part 026103139
- 4Vent 06L103154D
- 4Vent 06L103154L
- 5Flange 06K103171G
- 6Cover 036103113A
- 6Cover N90982902
- 7Sleeve 022103139B
- 8Seal 06L103085B
- 9Bungs 06H115418D
- 10Chn Sprckt 06K103319A
- 11Shaft 06H103559C
- 12Pipe 06K103199A
- 13Bearing 06L103300J
- 14Repair Kit 06H198205AD
- 14Repair Kit 06H198205S
- 15Pulley 06H103731G
- 18Screw N10544904
- 19Cover N0119104
- 20Cover N0119194
- 21Cover N0119078
- 22Seal D176501A1
- 23Part N10617101
- 24Screw N91096901
- 25Screw N91187501
- 26Bolt N10335206
- 27Bolt N91096702
- 28Screw N91118902
- 29Bolt WHT001163B
- 30Washer WHT001396B
- 31Seal Ring WHT001905
- 32Seal 06K103085
- 33Tube 06K115610E
- 34Seal Ring WHT003463
- 35Oil Dipsti 06K115611D
- 39Bolt N10451409
- 44Spacer Pl 06K103551A
- 44Spacer Pl 06K103551B
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| golf 2.0 | 2016-2020 | 16 | 1 | |
| golf 1.6 | 2015-2019 | 16 | 1 | |
| Passat saloon | 2014-2024 | 16 | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 16 | 1 | |
| jetta | 2014-2017 | 16 | 1 | |
| Golf Estate 1.4 | 2014-2017 | 16 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 16 | 1 | |
| new beetle | 2011-2016 | 16 | 1 | |
| new beetle cabriolet | 2011-2016 | 16 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| New Passat | 2015-2022 | 16 | 1 | |
| New Passat | 2011-2015 | 16 | 1 | D6J |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: golf 2.0 2016-2020; golf 1.6 2015-2019; Passat saloon 2014-2024; Golf 1.4 BlueMotion 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Golf 1.4 BlueMotion 2012-2017; new beetle 2011-2016; new beetle cabriolet 2011-2016; New Passat 2015-2022; New Passat 2011-2015.
