06L121492C Coolant Pipe
- 06L121492Not stocked
Dec 2011 - 06L121492CThis pageNot stocked
Jan 2022 - 06L121492AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

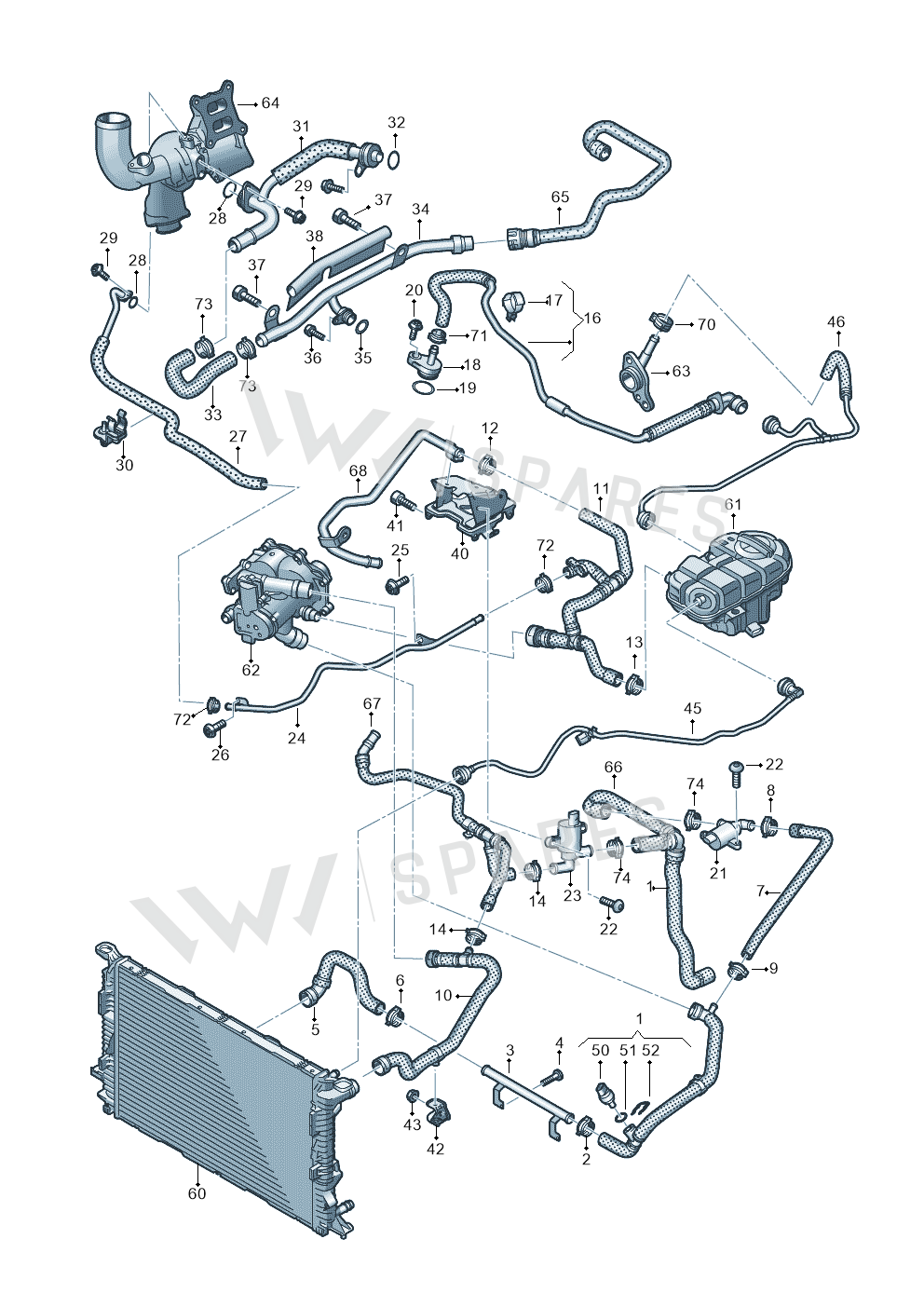

5 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Hose 4H0122049A
- 2Clamp N90687201
- 3Water Pipe 4H0121070A
- 4Screw N10473402
- 5Hose 4H0122055D
- 7Hose 4H0121056AD
- 8Clamp N90687001
- 9Clamp N90686901
- 10Hose 4H0122101E
- 11Hose 4H0122109A
- 16Hose 06L121081K
- 17Bracket 06L133689C
- 18Adapter 06K121143
- 19Seal Ring WHT005440
- 20Screw N10619201
- 21Valve 4H0121671B
- 22Screw N91032702
- 23Valve 4H0121670A
- 24Water Pipe 06L121075B
- 25Screw N10721401
- 26Bolt N10196103
- 28Seal Ring WHT006114
- 30Bracket 06L115261
- 31Water Pipe 06L121497AA
- 32Seal Ring WHT006124
- 33Hose 06L121051C
- 34Water PipeLeft06L121085M
- 35Seal Ring WHT005558
- 36Bolt N10335202
- 37Bolt N10524202
- 38Heat Insul 06L133833A
- 40Bracket 4H0121305AS
- 41Screw N10619001
- 42Bracket 4H0121264
- 43Collar Nut N01508210
- 45Pipe 4H0121081AB
- 46PipeLeft4H0121081BR
- 50Sender 06A919501A
- 51Seal Ring N90316801
- 52Spring 032121142
- 70Clamp N90770201
- 71Clamp N90986501
- 72Clamp 06B145917A
- 73Clamp N90686902
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8L qu. 3.0 TDI | 2013-2018 | 27 | 1 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 27 | 1 | |
| Audi Q5 qu. 2.0 | 2009-2018 | 27 | 1 | 0G1 |
| Audi A4 Av. Allroad | 2008-2016 | 27 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A4L 2.0 | 2008-2012 | 27 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A8L qu. 3.0 TDI 2013-2018; audi a4 av. 2.0 tdi 2011-2015; Audi Q5 qu. 2.0 2009-2018; Audi A4 Av. Allroad 2008-2016; Audi A4L 2.0 2008-2012.
