06L133781AM Connecting Tube With Akf Valve
- 06L133781AMThis pageNot stocked
Oct 2024 - 06L133781BLCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

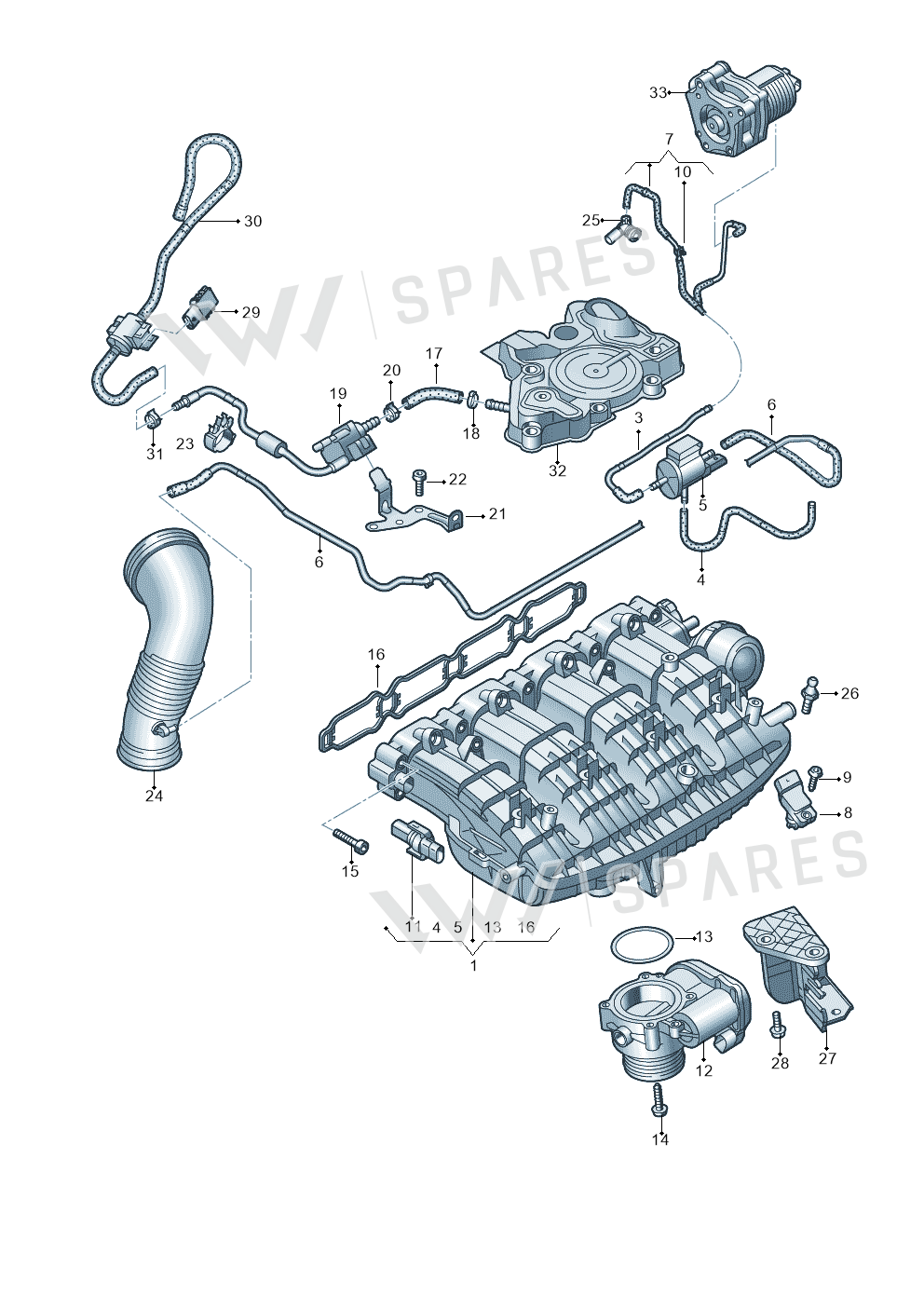

6 vehiclesConnecting Tube With Akf Valve — locate Connecting Tube With Akf Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Intake Man 06L133201FP
- 3Press Pipe 06Q133773A
- 4Hose 06K133595
- 5Valve 06H906283J
- 6Hose 06L133583G
- 7Hose 06N133241B
- 8Sensor 06L906051K
- 9Bolt N90732103
- 11Sensor 06K907386D
- 12Adapter 06Q133062A
- 13Seal 06K133073
- 14Bolt N10626102
- 14Bolt N10626101
- 15Screw N10865901
- 16Seal 06K129717A
- 17Hose 06L133514J
- 18Clip N10255501
- 19Pipe 06L133781BL
- 20Clamp N90986501
- 21Bracket 06L133519P
- 22Bolt N10654902
- 25Coupl Piece 06L133054
- 30Line 4K0201991BN
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 2.0 | 2018- | 19, 38 | 1 | ||
| Audi A7 Sportback | 2018- | 19, 38, 25 | 1 | ||
| Audi Q5 | 2016-2020 | 19, 25 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 38, 19 | 1 | PR:4BF,7CM, | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 38, 19 | 1 | 7CM | |
| audi a4 2.0 | 2015-2019 | 38, 19 | 1 | 7CM |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Tube With Akf Valve is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
