06L133781Q Connecting Tube With Akf Valve
- 06L133781QThis pageNot stocked
Aug 2019 - 06L133781BGCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 123 g
- Shipping size (L × W × H)
- 25 × 14 × 3 cm
- Customs (HS) code
- 84818079

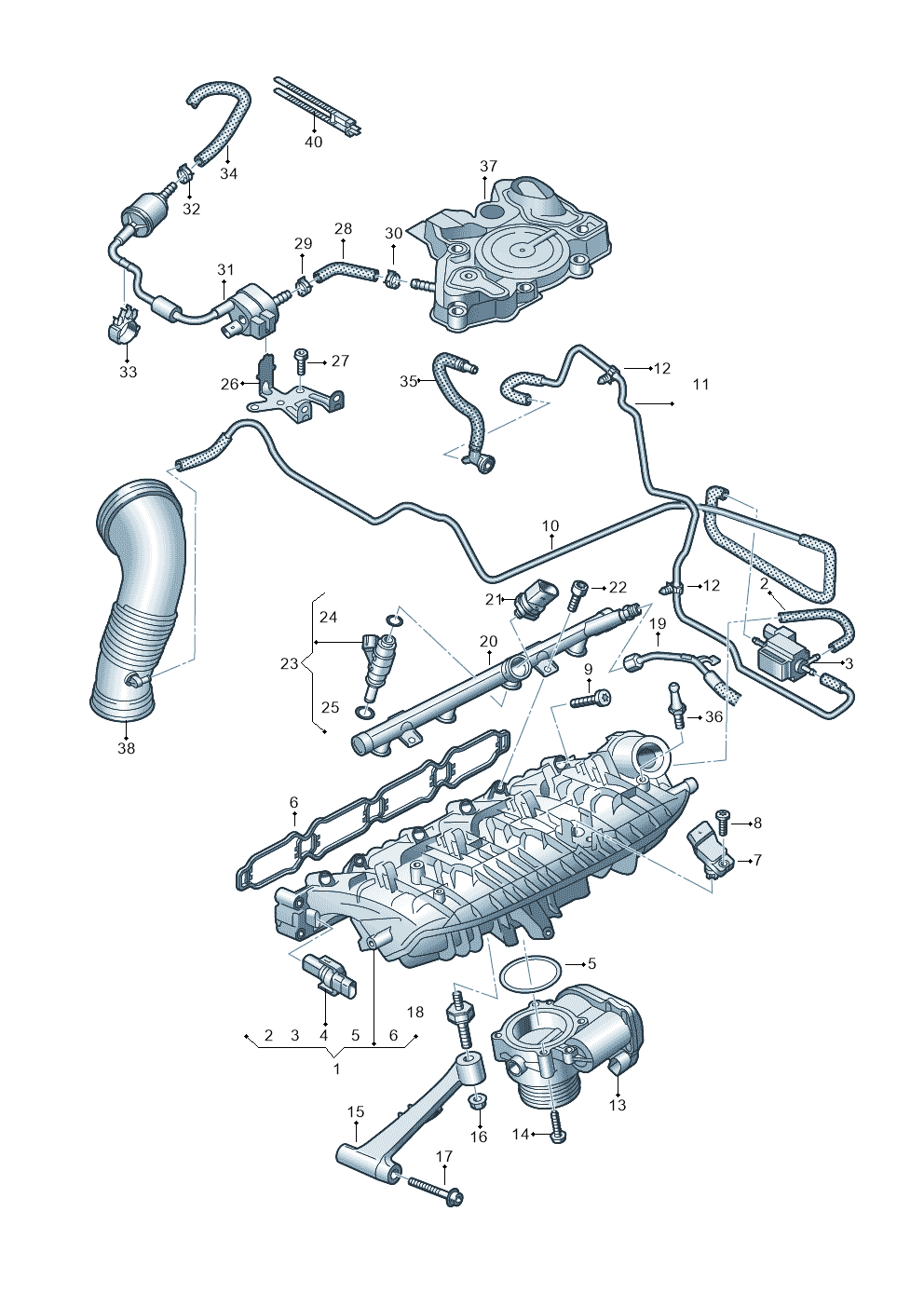

Parts diagram & fitment
6 vehiclesConnecting Tube With Akf Valve — locate Connecting Tube With Akf Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Intake Man 06L133201DG
- 1Intake Man 06L133201DN
- 1Intake Man 06L133201BR
- 2Hose 06K133595A
- 3Valve 06K906283
- 3Valve 06H906283J
- 4Sensor 06N907386
- 4Sensor 06K907386F
- 5Seal 06K133073D
- 6Seal 06K129717K
- 7Sensor 038906051T
- 7Sensor 038906051R
- 8Bolt N90732103
- 9Screw N10865901
- 9Bolt N91097301
- 10Hose 06L133583G
- 11Press Pipe 06K133773C
- 11Hose 06K133241AP
- 12Cable Tie 3W0971838
- 13Adapter 06K133062AK
- 13Adapter 06K133062AS
- 13Adapter 06K133062M
- 14Bolt N10626102
- 14Bolt N10626101
- 15Support 06L129723C
- 16Collar Nut N10609203
- 17Screw N91170301
- 18Rubber Bush 06H121273D
- 20Rail 06L133313A
- 21Sensor 04E906054B
- 22Screw N10456201
- 23Gas Valve 06L906039B
- 24Seal Ring WHT008661
- 25Seal Ring WHT008665
- 26Bracket 06L133519E
- 27Bolt N10654902
- 28Hose 06L133514E
- 29Clamp N90770201
- 30Clamp N10108301
- 31Pipe 06L133781BG
- 32Clamp N90986501
- 33Bracket 06L133689
- 40Binder 4A0820199
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 31, 38 | 1 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 38 | 1 | PR:7GH,7MM, |
| audi a4 2.0 | 2015-2019 | 25, 38 | 1 | |
| Audi A7 Sportback | 2014-2018 | 38 | ||
| audi a6 qu. 3.0 tdi | 2014-2018 | 38 | 1 | |
| Audi A8L qu. 3.0 TDI | 2013-2018 | 38 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Tube With Akf Valve is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018.
