06L906036AA Injection Valve
- 06L906036DNot stocked
Jun 2014 - 06L906036KNot stocked
Oct 2018 - 06L906036AAThis pageNot stocked
Jun 2019 - 06L906036ADNot stocked
Nov 2020 - 06L906036AHCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

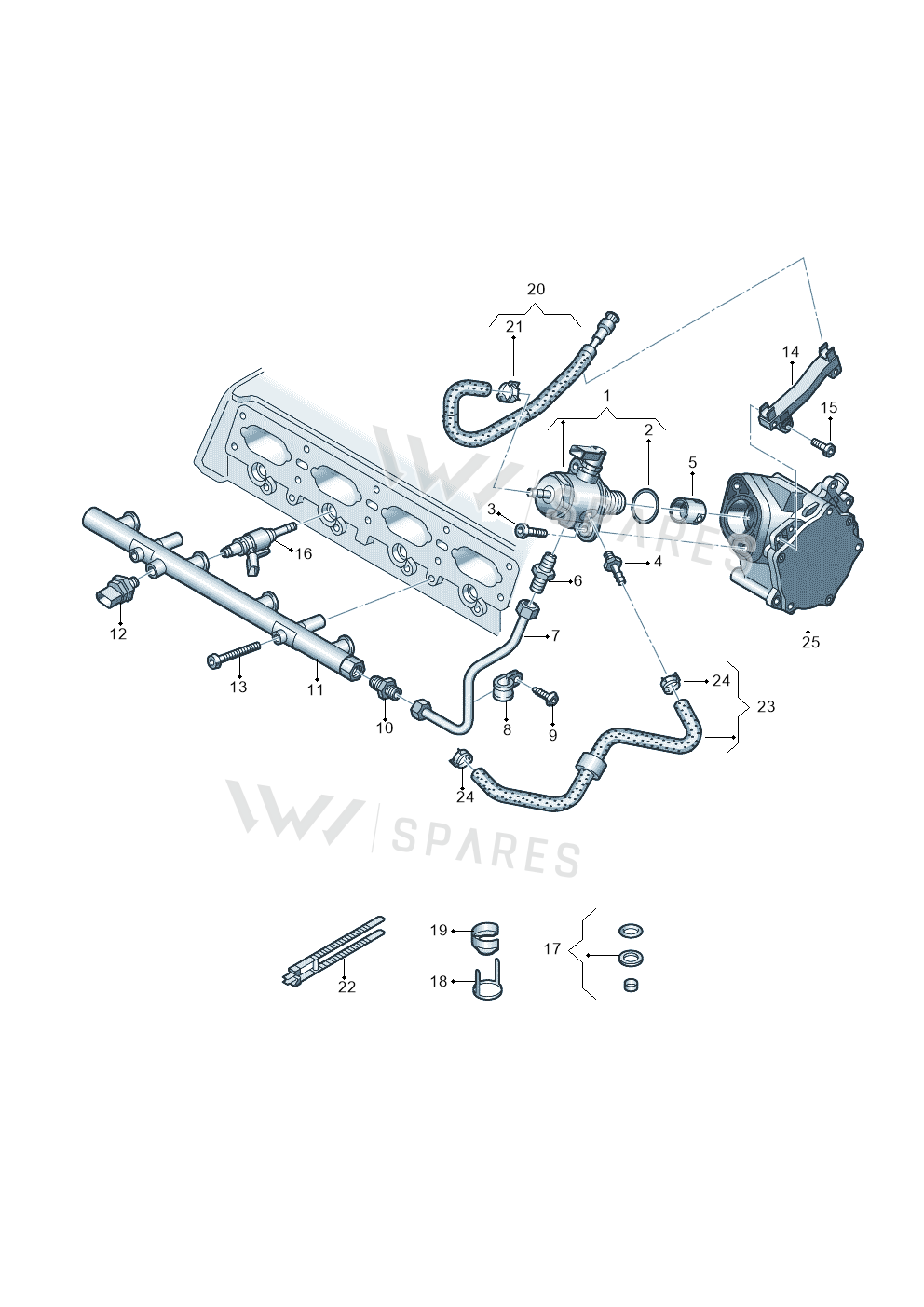

22 vehiclesInjection Valve — locate Injection Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Pump 06K127027AA
- 1Pump 06K127027M
- 1Pump 06K127028D
- 1Pump 06K127028L
- 1Pump 06K127027F
- 2Seal Ring WHT005184
- 3Bolt N10700201
- 4Connection 06K127213D
- 5Tappets 06L109311
- 6Adapter 06E127065N
- 7Fuel Line 06K127501H
- 8Clamp N0206096
- 9Screw N10721401
- 10Adapter 06K127065E
- 11Rail 06K133317AB
- 12Sensor 06J906054C
- 13Bolt N91131001
- 14Bracket 06K133689G
- 14Bracket 06K133689J
- 15Bolt N91096703
- 16Valve 06K906036M
- 16Valve 06L906036AD
- 16Valve 06L906036AH
- 17Part 06G998907
- 17Part 06L998907
- 18Ring 06H906189D
- 18Ring 06H906189E
- 19Support Element 06J133036F
- 19Support Element 06J133036B
- 20Hose 06L133986AA
- 20Hose 06L133986AQ
- 20Hose 06L133986B
- 21Clamp N91208604
- 22Binder 4A0820199
Vehicle fitment table22
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2017-2023 | 16 | 4 | T2G | |
| Octavia | 2017-2020 | 16 | 4 | TP6 | |
| Tiguan 2.0 4Motion | 2016-2024 | 16 | 4 | ||
| Audi A3 Sportback | 2016-2020 | 16 | 4 | ||
| Audi A3 Cabrio | 2016-2020 | 16 | 4 | ||
| Audi A5 Sportback | 2016-2020 | 16 | 4 | ||
| golf 2.0 | 2016-2020 | 16 | 4 | TP6 | |
| Beetle | 2016-2019 | 16 | 4 | ||
| new beetle cabriolet | 2016-2019 | 16 | 4 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 16 | 4 | ||
| Superb Combi | 2015-2024 | 16 | 4 | TP6 | |
| Sharan BlueMotion | 2015-2022 | 16 | 4 | ||
| Alhambra Stylance | 2015-2022 | 16 | 4 | ||
| audi a4 2.0 | 2015-2019 | 16 | 4 | ||
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 16 | 4 | PR:7GH,7MM | 7GH |
| Passat saloon | 2014-2024 | 16 | 4 | TP6 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 16 | 4 | CHHC | TP6 |
| Audi Q3 2.0 TDI | 2014-2019 | 16 | 4 | ||
| Audi A7 Sportback | 2014-2018 | 16 | 4 | ||
| Audi A1 Sportback | 2014-2018 | 16 | 4 | ||
| audi a6 qu. 3.0 tdi | 2014-2018 | 16 | 4 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 16 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Injection Valve is fitted on: touareg 2017-2023; Octavia 2017-2020; Tiguan 2.0 4Motion 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi A5 Sportback 2016-2020; golf 2.0 2016-2020; Beetle 2016-2019; new beetle cabriolet 2016-2019; Audi A5 Cabrio 2.0 2016-2018; Superb Combi 2015-2024; Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Audi A7 Sportback 2014-2018; Audi A1 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Tiguan 2.0 4Motion 2016-2022.
