Product overview

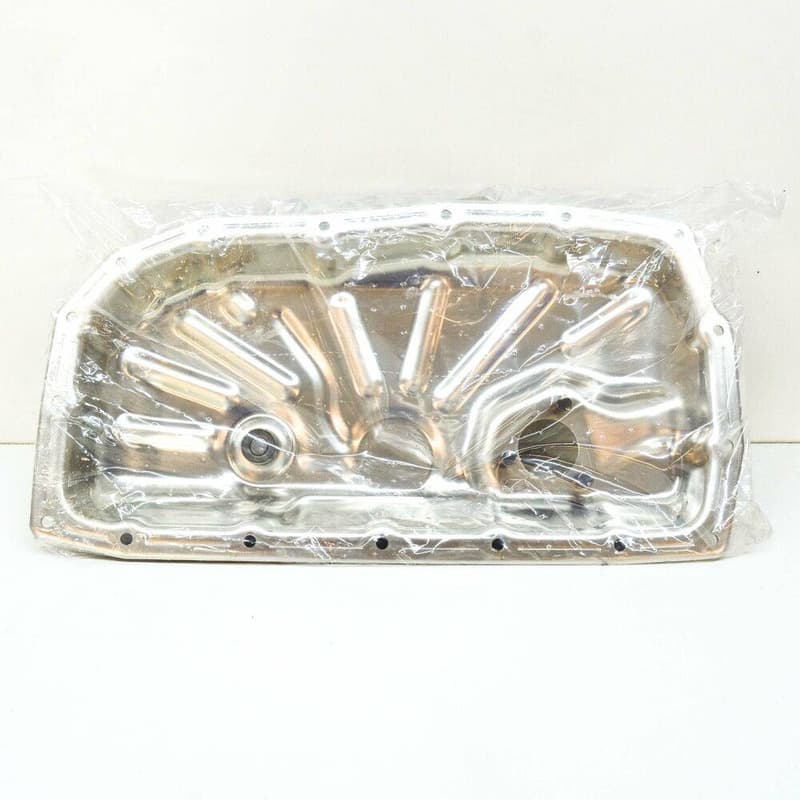

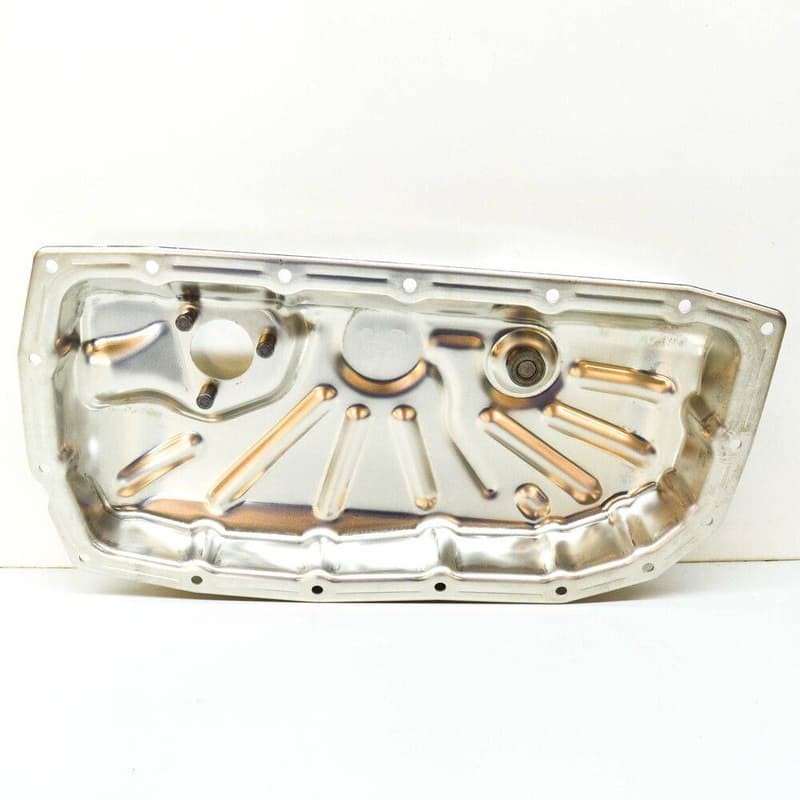

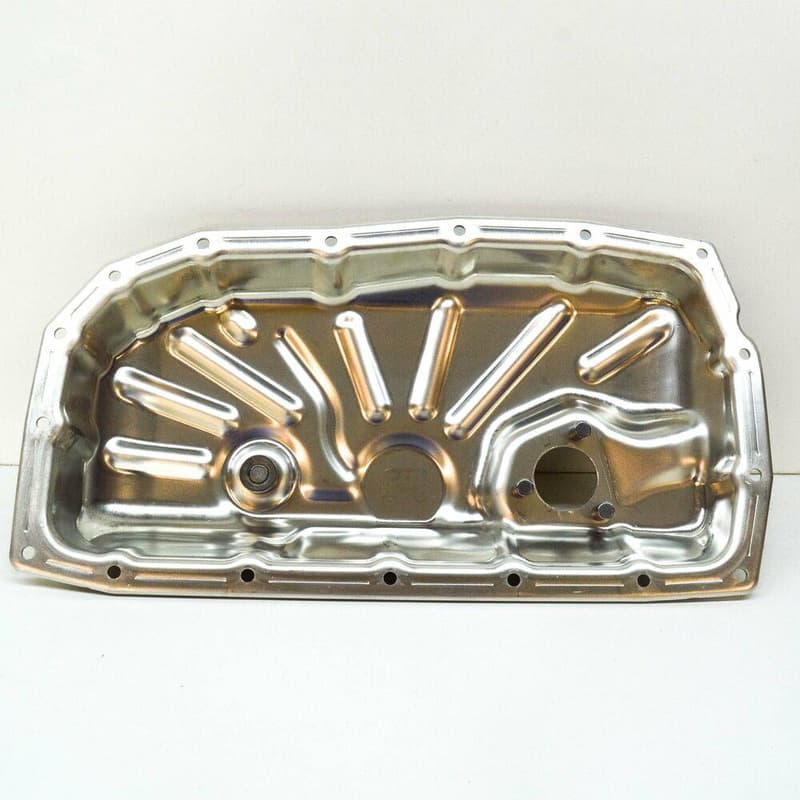

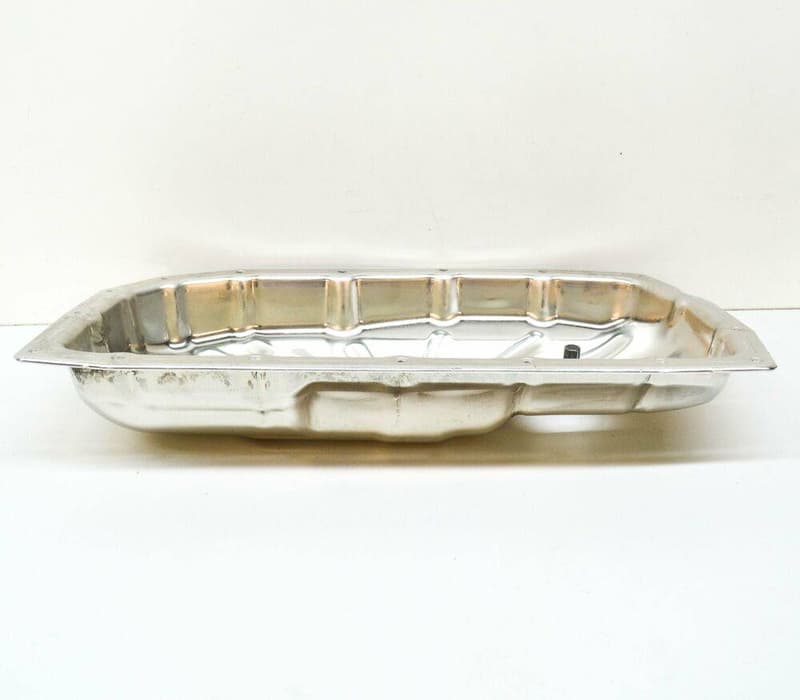

Genuine OEM Audi Engine Oil Sump Pan, part number 06M103602P. This essential component is located at the bottom of the engine, serving to collect and store engine oil for lubrication, ensuring a continuous supply to moving parts. Weighing 0.804 kg and measuring 450x240x80mm, it is designed to withstand engine vibrations and temperature fluctuations. Using a genuine OEM oil sump pan ensures a perfect seal, preventing oil leaks and maintaining proper oil levels, which are critical for engine health and longevity.
Catalogue entry: OIL SUMP.
Fitted with: N91127902 BOLT, N10413405 BOLT, N91168702 BOLT, D176501A1 SEAL, N10700201 BOLT.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 24 × 8 cm
- Shipping weight
- 0.8 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
16 vehiclesOil Sump-lower Part — locate 06M103602P Audi Engine Oil Sump Pan | OEM Engine Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly13
Compatible / alternative parts(12)
Vehicle fitment table16
Europe (14)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 1 | 1 |
| Audi A5 Avant 2.0 | 2024- | 1 | 1 |
| Audi Q8 Quattro 3,0 | 2018- | 1 | 1 |
| audi a6 2.0 | 2018- | 1 | 1 |
| Audi A7 Sportback | 2018- | 1 | 1 |
| Audi RS4 Avant | 2017- | 1 | 1 |
| Audi RS5 Sportback | 2017- | 1 | 1 |
| touareg | 2017-2023 | 1 | 1 |
| Audi A8L | 2017-2022 | 1 | 1 |
| Audi Q5 | 2016-2020 | 1 | 1 |
| Audi A5 Sportback | 2016-2020 | 1 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 |
| audi a4 2.0 | 2015-2019 | 1 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 1 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A7 | 2021- | 1 | 1 |
| Audi A6 L 2.0 | 2018- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06M103602P Audi Engine Oil Sump Pan | OEM Engine Part is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 2021-; Audi A6 L 2.0 2018-.
