Product overview

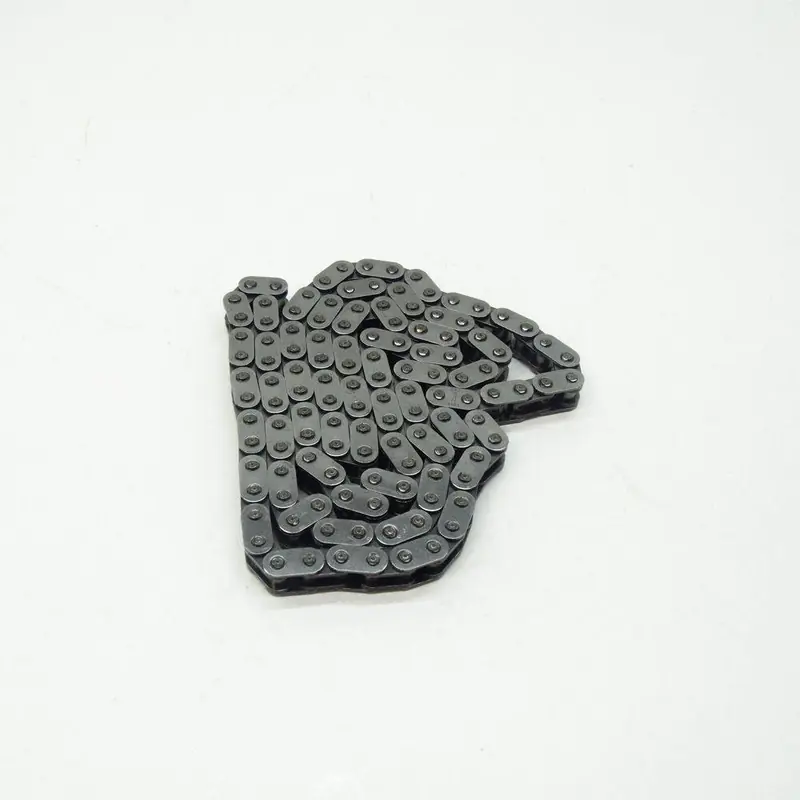

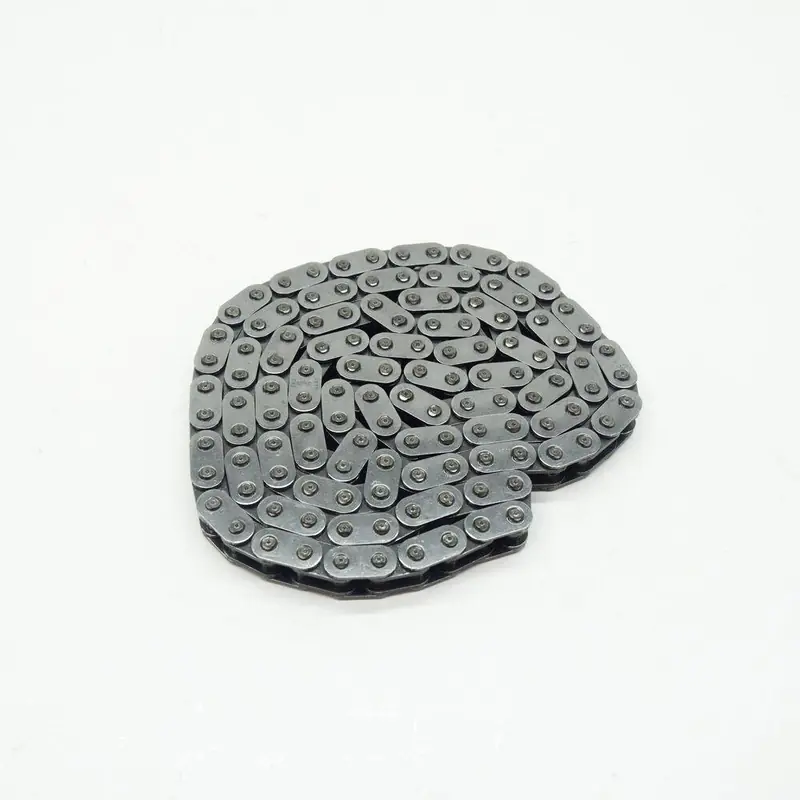

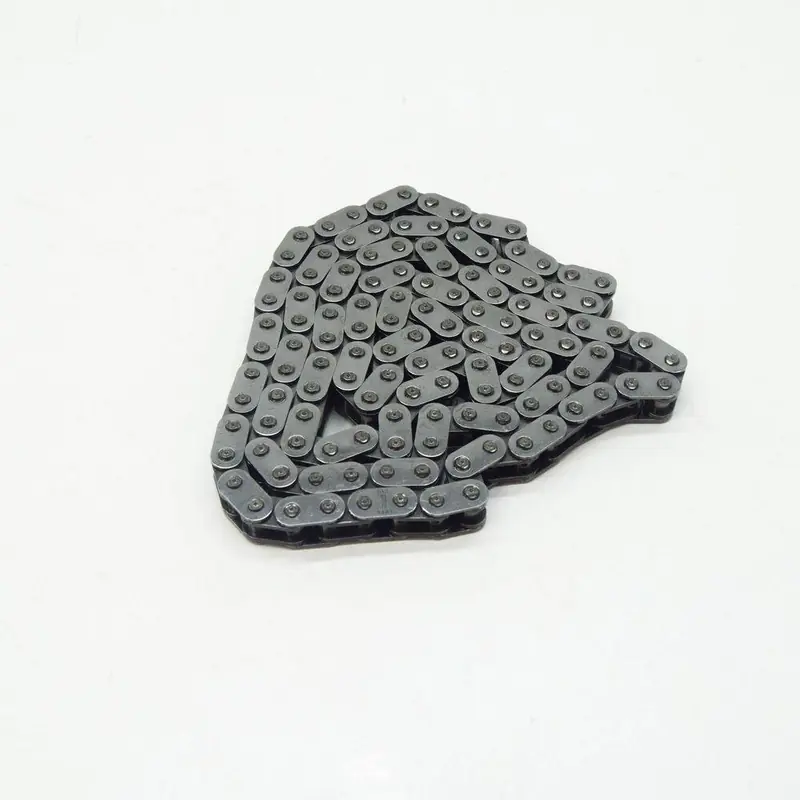

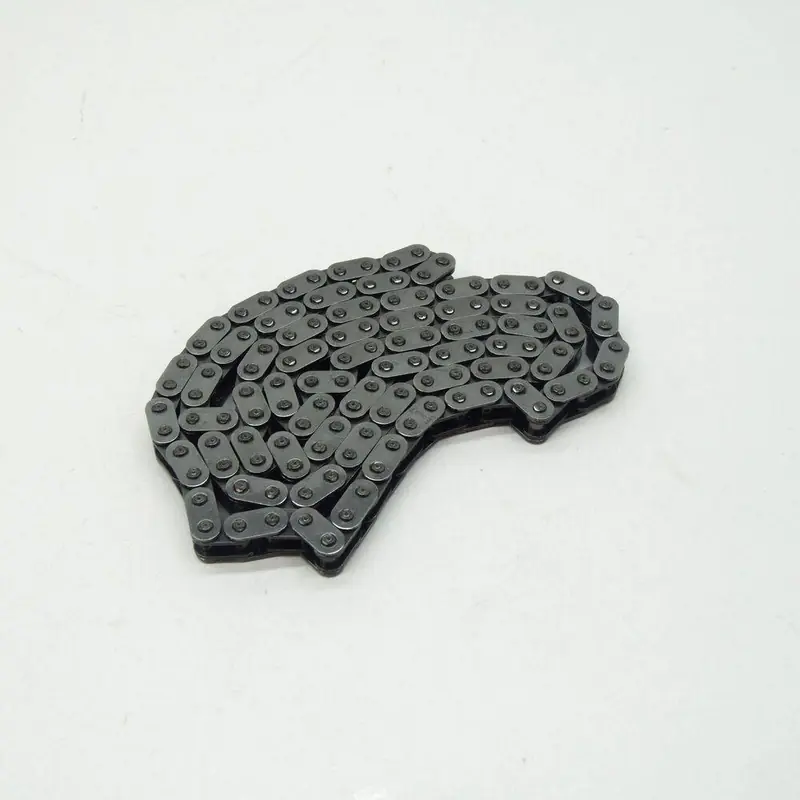

Genuine OEM Audi Engine Timing Chain, part number 06M109229AA. This precision-engineered chain is vital for synchronizing the rotational movements of the engine's crankshaft and camshafts. It ensures that the engine valves open and close at the precise moment relative to piston position, specifically for the left side of the engine. Made from high-strength steel, it weighs approximately 0.34 kg and measures 0.115m in length, 0.115m in width, and 0.01m in height. An authentic OEM timing chain guarantees exact pitch and material specifications, crucial for maintaining precise valve timing, preventing catastrophic engine damage, and ensuring long-term reliability.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.5 × 11.5 × 1 cm
- Shipping weight
- 0.34 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
14 vehiclesTiming Chain — locate 06M109229AA Audi Engine Timing Chain | Left Side in the official exploded view and explore the surrounding assembly.
Superseded by 058103598D — the current replacement part (via 06M109450K).
Parts in this assembly21
- 1Tim Chain 0P2109450C
- 1Tim Chain 0P2109450E
- 1Tim Chain 0P2109450G
- 2Part 06M109426E
- 3Seatrunner 06M109514F
- 4Part 059109426T
- 5Bolt N91238501
- 6Lining 079109470
- 7Tensioner 0P2109218C
- 7Tensioner 0P2109218E
- 8Seal 079109139L
- 9Bolt N10124306
- 11Seatrunner 06M109509L
- 11Seatrunner 06M109509M
- 13Seatrunner 06M109513G
- 13Part 06M109513J
- 14Bolt N91126601
- 16Tensioner 06M109217G
- 16Tensioner 06M109217L
- 17Seal 06M109139B
- 17Seal 06M109139C
Compatible / alternative parts(12)
Vehicle fitment table14
Europe (14)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS6 Avant | 2019- | 10 | 1 |
| Audi RS7 Sportback | 2019- | 10 | 1 |
| Audi Q8 Quattro 3,0 | 2018- | 9, 10 | 1 |
| audi a6 2.0 | 2018- | 9 | 1 |
| Audi A7 Sportback | 2018- | 9 | 1 |
| Audi RS4 Avant | 2017- | 9 | 1 |
| Audi RS5 Sportback | 2017- | 9 | 1 |
| touareg | 2017-2023 | 9 | 1 |
| Audi A8L | 2017-2022 | 9, 10 | 1 |
| Audi Q5 | 2016-2020 | 9 | 1 |
| Audi A5 Sportback | 2016-2020 | 9 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 9 | 1 |
| audi a4 2.0 | 2015-2019 | 9 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06M109229AA Audi Engine Timing Chain | Left Side is fitted on: Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
