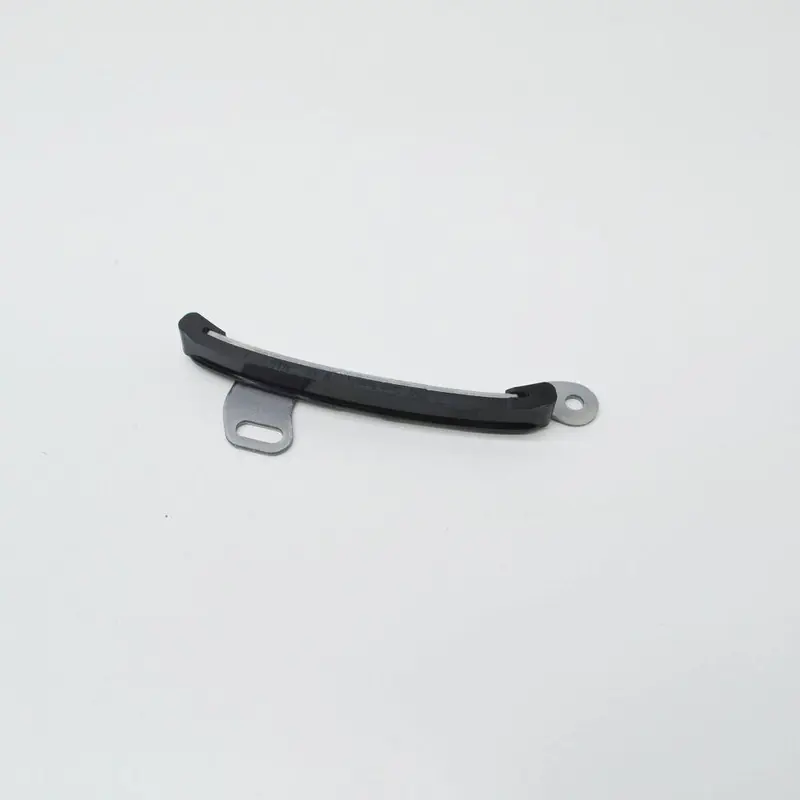

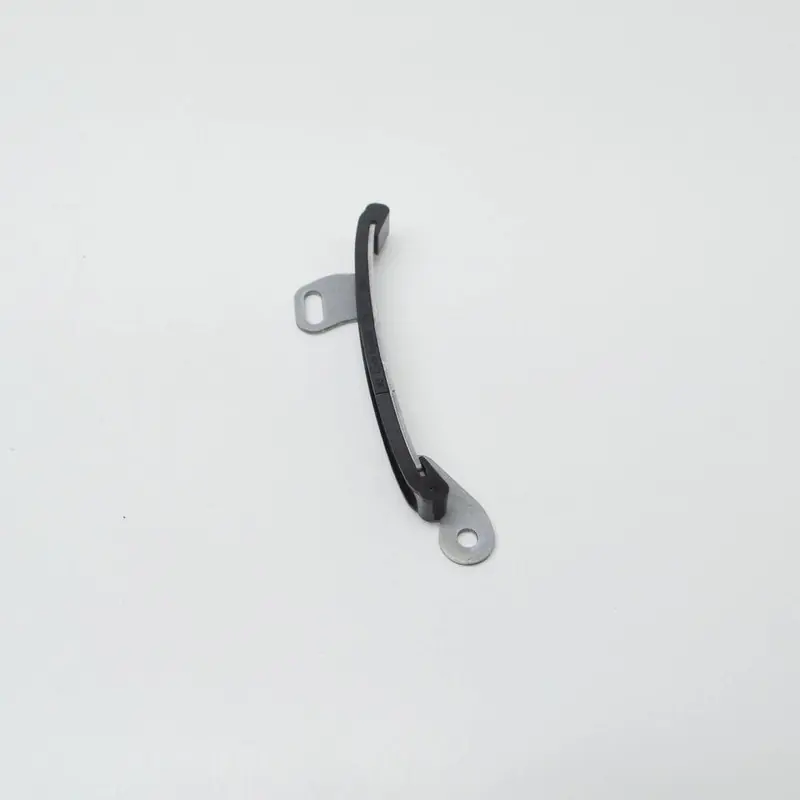

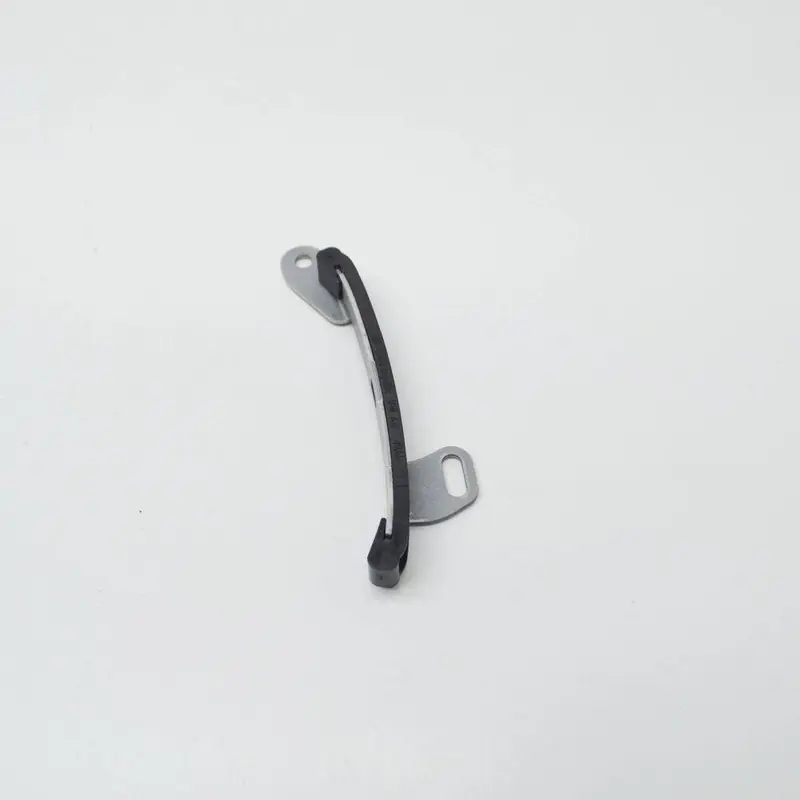

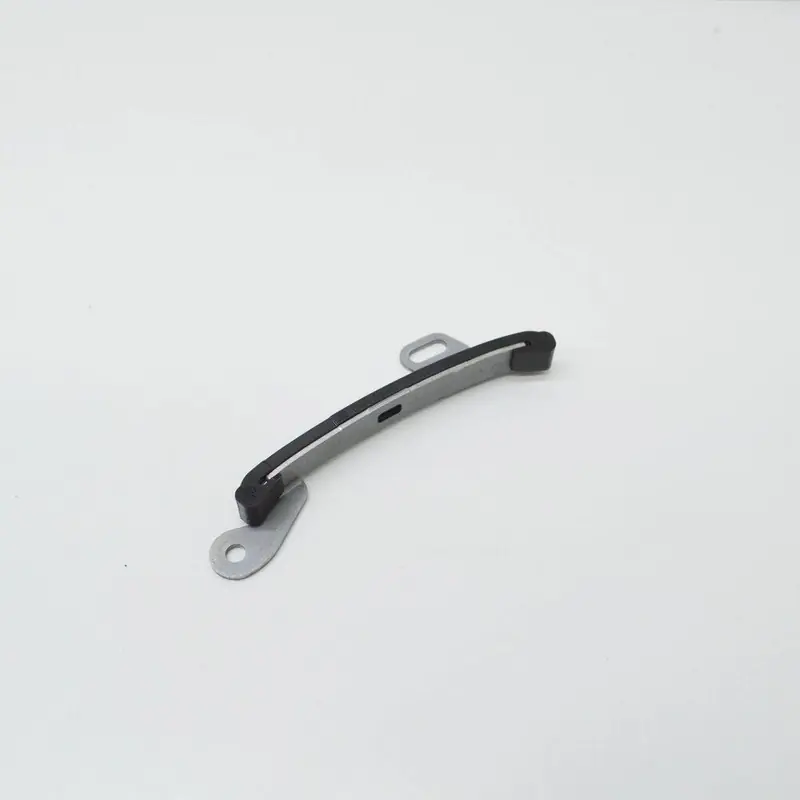

Genuine OEM Volkswagen Engine Timing Chain Guide Rail, part number 06M109469G. This component is crucial for guiding the engine's timing chain, ensuring smooth operation and precise synchronization of the crankshaft and camshafts. It is typically mounted within the timing cover assembly. Constructed with a durable metal base and a low-friction polymer guide surface, this rail weighs approximately 0.05 kg. Using a genuine OEM guide rail ensures the correct material properties and dimensions, which are essential for preventing timing chain slack, reducing wear, and maintaining accurate engine timing.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14 × 5 × 1.5 cm
- Shipping weight
- 0.05 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
17 vehiclesSlide Rail — locate 06M109469G Volkswagen Engine Timing Chain Guide Rail | OEM in the official exploded view and explore the surrounding assembly.
Superseded by 058103598D — the current replacement part (via 06M109507F).
This part is marked discontinued by the manufacturer (since 2023-12-01); contact us to check current availability.
Parts in this assembly19
- 1Oil Pump 0P2115103A
- 2Chn Sprckt 06M115121G
- 3Bolt WHT008061
- 4Seal 0P2103161
- 5Screw N10562603
- 6Plate 0P2115132
- 7Bolt N10124306
- 8Strainer 0P2115155B
- 8Strainer 0P2115155D
- 9Seal Ring N91069701
- 11Valve 06M115393D
- 11Valve 06M115393F
- 12Seal Ring 06M115475
- 14Chain 0P2109229B
- 14Chain 0P2109229G
- 15Seatrunner 06M109469K
- 16Bolt N91126601
- 17Tensioner 06M109507F
- 18Part 059109426T
Compatible / alternative parts(12)
Vehicle fitment table17
Europe (15)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS6 Avant | 2019- | 15 | 1 |
| Audi RS7 Sportback | 2019- | 15 | 1 |
| Audi RS Q8 Quattro | 2019- | 15 | 1 |
| Audi Q8 Quattro 3,0 | 2018- | 17, 15 | 1 |
| audi a6 2.0 | 2018- | 17 | 1 |
| Audi A7 Sportback | 2018- | 17 | 1 |
| Audi RS4 Avant | 2017- | 17 | 1 |
| Audi RS5 Sportback | 2017- | 17 | 1 |
| touareg | 2017-2023 | 17 | 1 |
| Audi A8L | 2017-2022 | 17, 15 | 1 |
| Audi Q5 | 2016-2020 | 17 | 1 |
| Audi A5 Sportback | 2016-2020 | 17 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 17 | 1 |
| audi a4 2.0 | 2015-2019 | 17 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 17, 15 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A7 | 2021- | 17 | 1 |
| Audi A6 L 2.0 | 2018- | 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06M109469G Volkswagen Engine Timing Chain Guide Rail | OEM is fitted on: Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi RS Q8 Quattro 2019-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 2021-; Audi A6 L 2.0 2018-.
