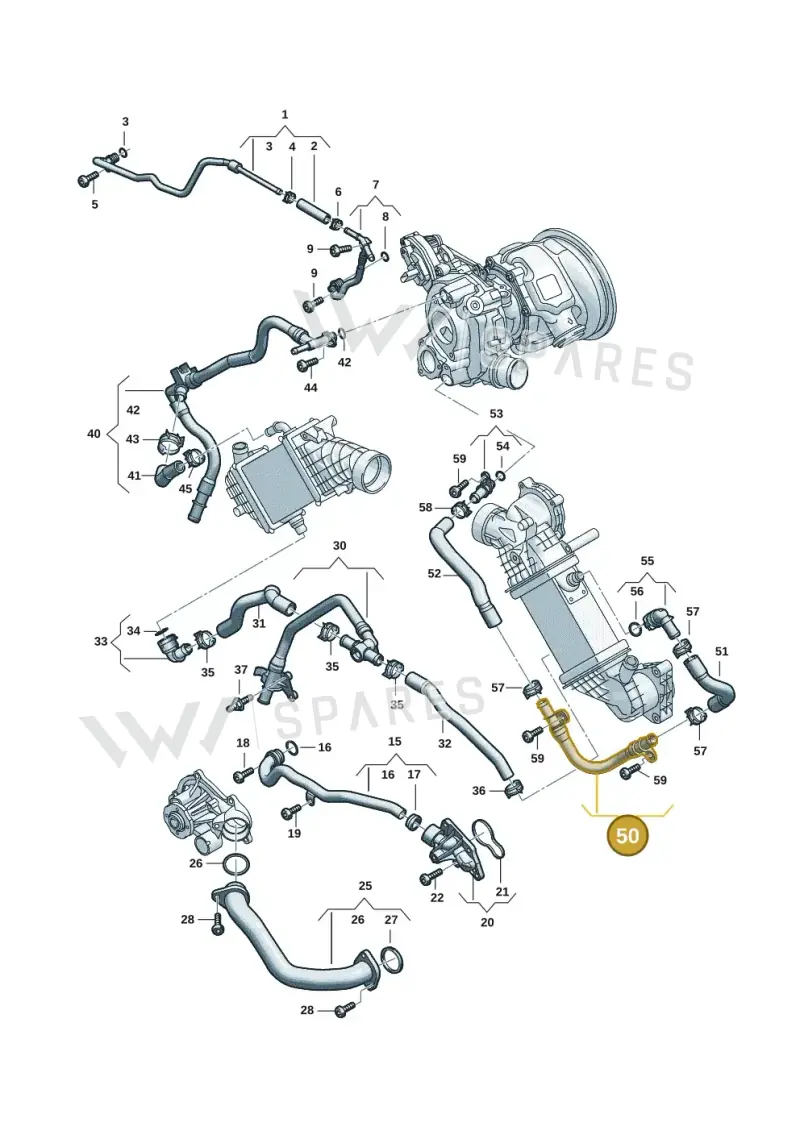

Number 50 marks the part’s position in the exploded view (Audi A5 Limousine (2024-2025)).
Product overview
Genuine OEM Audi Coolant Pipe with Coolant Hose, part number 06M122483L. Fits Audi A5 Avant (2024-2025), Audi A5 Limousine (2024-2025). Shown as position 50 in the engine diagram 06M12100.
Catalogue entry: WATER PIPE.
Technical details
- Category
- Engine Cooling
- Diagram sheet
- Audi 06m121000, position 50
- ETKA group
- 1 / 21 (121)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesCoolant Pipe With Coolant Hose — locate 06M122483L Audi Coolant Pipe with Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly45
- 1Housing 06M121115N
- 1Line 06M121692BE
- 2Hose 06M121611E
- 2Seal Ring WHT008508
- 3Seal Ring 06M121688
- 3Seal Ring WHT007689
- 4Bolt N10124306
- 4Clamp N90686701
- 5Bolt N10451405
- 7Hose 06M121691F
- 10Water Pump 06M121013E
- 11Seal 06M121119C
- 15Water Pipe 06M121083M
- 16Seal Ring WHT005652B
- 17Seal 06M121171
- 19Bolt N10405604
- 20Pulley 06M121031D
- 20Adapter 06M121340C
- 21Seal 06M121539
- 21Bolt N10335208
- 22Plate 06M121636
- 25Water Pipe 06M121481AL
- 26Seal Ring WHT007920
- 27Seal 06M121091
- 30Union 06M121137AR
- 30Water Pipe 06M122480D
- 31Hose 06M122060H
- 31Seal Ring WHT008722
- 32Hose 06M122061H
- 33Coupl Piece 06M122293A
- 34Seal Ring WHT009244
- 35Clamp N90686901
- 36Clamp N90926401
- 37Bolt N91148001
- 40Union 06M121147AB
- 40Water Pipe 06M122484F
- 41Hose 06M122062H
- 42Seal Ring WHT001011B
- 50Bungs 06M121418D
- 51Hose 06M122063N
- 51Seal Ring WHT010312
- 52Hose 06M122919G
- 53Adapter 06M121352B
- 54Seal Ring WHT001011C
- 58Clamp 4G0423875
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 50 | 1 |
| Audi A5 Avant 2.0 | 2024- | 50 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06M122483L Audi Coolant Pipe with Coolant Hose is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-.
