Product overview
Genuine OEM Volkswagen Fuel Line, part number 06M127503M. This essential component is responsible for transporting fuel from the tank to the engine, maintaining consistent fuel pressure and flow. Weighing approximately 0.19 kg, it is designed for precise routing and connection within the fuel system. Using a genuine OEM fuel line ensures the correct material composition for fuel compatibility, resistance to pressure, and exact fitment, preventing leaks and ensuring safe, efficient fuel delivery.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16 × 14 × 8.5 cm
- Shipping weight
- 0.19 kg

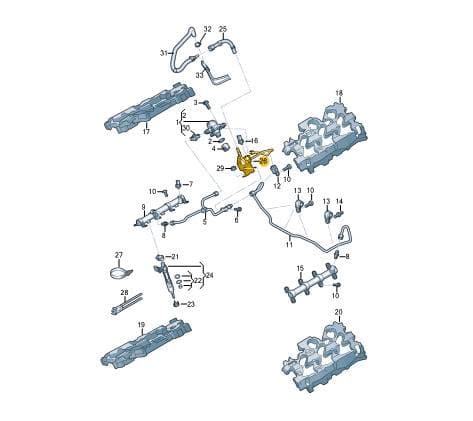

Parts diagram & fitment
11 vehiclesFuel Line — locate 06M127503M Volkswagen Fuel Line | Fuel System in the official exploded view and explore the surrounding assembly.
Superseded by 06M127503S — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(36)
- 1Pump 06M127026M
- 1Pump 06M127026P
- 1Pump 06M127026H
- 2Seal Ring WHT005184
- 3Screw N91084201
- 5Fuel Line 06M127507AC
- 6Bolt N10335206
- 7Sensor 06L906054E
- 7Sensor 06L906054C
- 8Adapter 06E127065N
- 9Rail 06M133316L
- 10Bolt N10451408
- 11Fuel Line 06M127507AB
- 12Bracket 06M127411A
- 13Clamp N0206096
- 14BoltRightN91044802
- 14BoltLeftN91044801
- 15Rail 06M133315L
- 16Sensor 059906054K
- 16Sensor 059906054L
- 16Sensor 059906054G
- 17Insulation 06M133876AC
- 18Insulation 06M133875AA
- 19Insulation 06M133876AB
- 20Insulation 06M133875T
- 22Repair Kit 06M998907A
- 24Valve 06M906036AE
- 24Valve 06M906036T
- 25Fuel Line 06M133986S
- 26Fuel Line 06M127503S
- 27Cable Tie N90643701
- 27Cable Tie 3D0971838K
- 28Binder 4A0820199
- 29Collar Nut N01508210
- 30Union 06J127065C
- 32Clamp 4B0422379
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
06M127503M Volkswagen Fuel Line | Fuel System is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A6 L 2.0 2018-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020.
