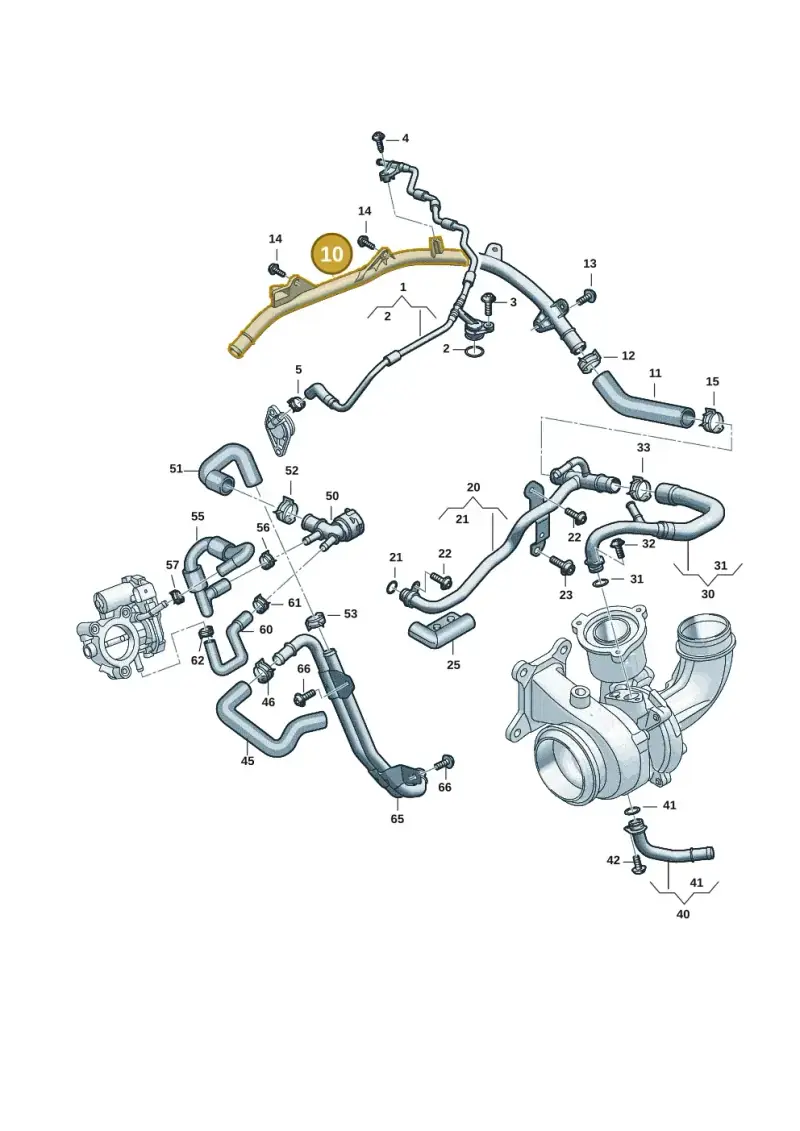

Number 10 marks the part’s position in the exploded view (Audi A5 Limousine (2024-2025)).
Product overview
Genuine OEM Volkswagen Coolant Pipe, part number 06R121075C. Fits Audi A5 Avant (2024-2025), Audi A5 Limousine (2024-2025). Shown as position 10 in the engine diagram 06R12100.
Catalogue entry: WATER PIPE.
Technical details
- Category
- Engine Cooling
- Diagram sheet
- Audi 06r121000, position 10
- ETKA group
- 1 / 21 (121)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesCoolant Pipe — locate 06R121075C Volkswagen Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Water Pipe 06R121081C
- 1Coolant Rg 06R121111E
- 2Seal 06L121139A
- 2Seal Ring WHT005440
- 3Bolt N91096801
- 3Screw WHT004972
- 4Bolt N90905902
- 5Clamp N90986501
- 10Water Pump 06R121012B
- 11Seal 06R121043
- 11Hose 06R121053A
- 12Screw 06L121441B
- 12Clamp N90687004
- 13Bolt N10196103
- 20Connection 06R121131B
- 20Water Pipe 06R121491H
- 21Seal Ring WHT004973
- 21Seal Ring WHT006777A
- 22Bolt N10335206
- 23Part N91136101
- 25Shield 06R133833D
- 30Water Pipe 06R121492T
- 30Tooth Belt 06R121605
- 31Seal Ring WHT010272A
- 33Clamp N90687001
- 40Connection 06R121132C
- 40Water Pipe 06R121497J
- 41Seal Ring WHT001688E
- 42Bolt N91139701
- 45Hose 06R121052B
- 46Clamp N90686901
- 50Coupl Piece 06R121613G
- 51Hose 06R121030A
- 55Hose 06R121610A
- 56Clamp N90770201
- 60Hose 06R121609A
- 65Water Pipe 06R121663B
- 66Bolt N10654902
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 10 | 1 |
| Audi A5 Avant 2.0 | 2024- | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06R121075C Volkswagen Coolant Pipe is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-.
