074115251F Suction Line
- 074115251GCurrent · not stocked
- Current number
- 074115251FThis pageNot stocked
Jun 1997
- 074115251GCurrent · not stocked074115251GCurrent · not stocked
- Current number034115427CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

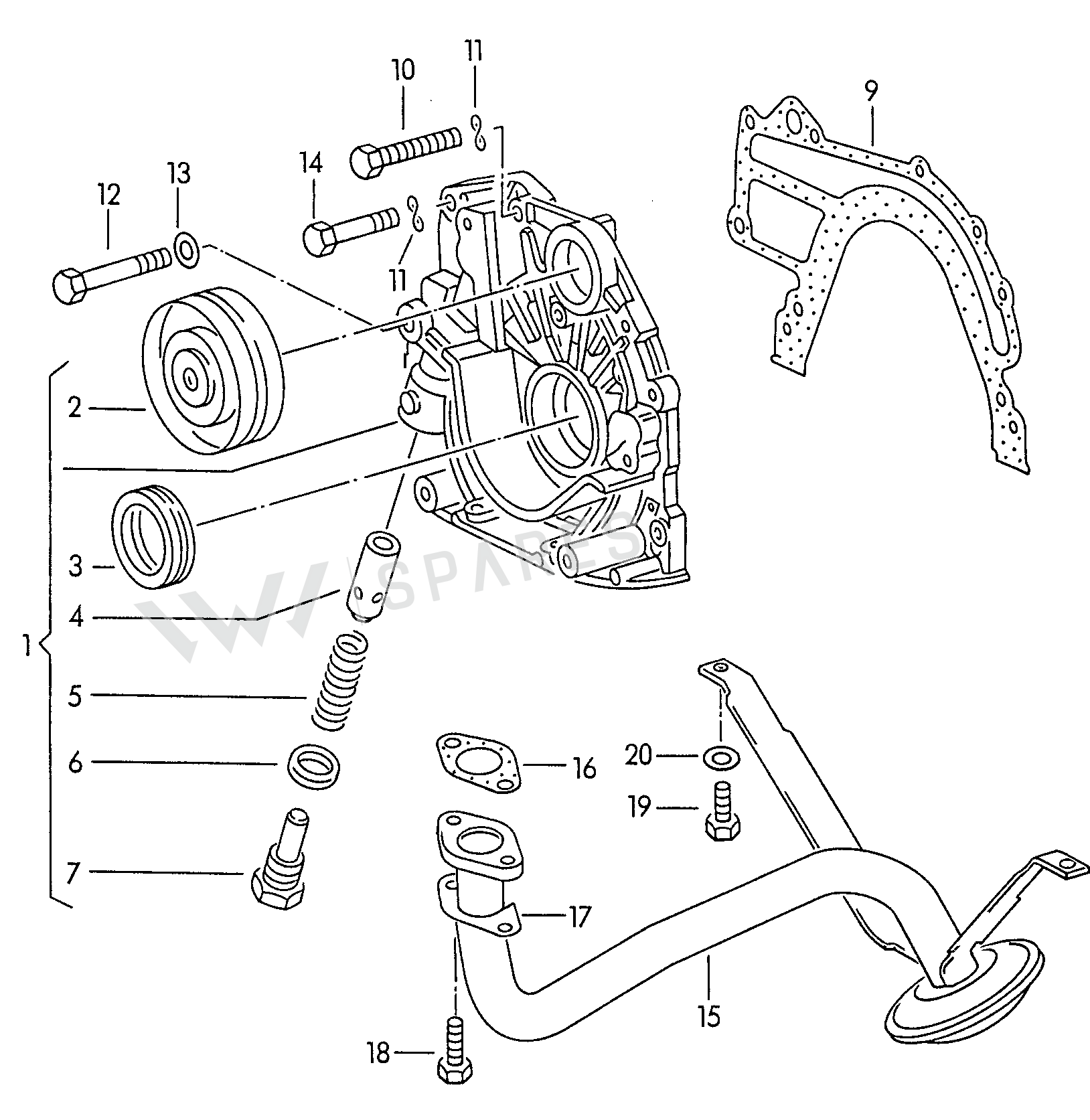

2 vehiclesSuction Line — locate Suction Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 3Seal 038103085E
- 4Piston 078115411
- 5Press Spring 069115421B
- 6Seal Ring N0138272
- 7Screw WHT000943
- 10Bolt N01022013
- 11Washer N0122265
- 12Bolt N0102213
- 13Washer N0154041
- 14Bolt N0103681
- 14Bolt N0102228
- 15Pipe 074115251G
- 16Seal Ring 034115427C
- 16Seal 072115257
- 18Bolt N01021612
- 18Bolt N0143441
- 19Bolt N01021226
- 20Washer N0152761
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Transporter syncro | 1992-1995 | 15 | 1 | AAF |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Eurovan | 1991-1994 | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Suction Line is fitted on: Transporter syncro 1992-1995; Eurovan 1991-1994.
