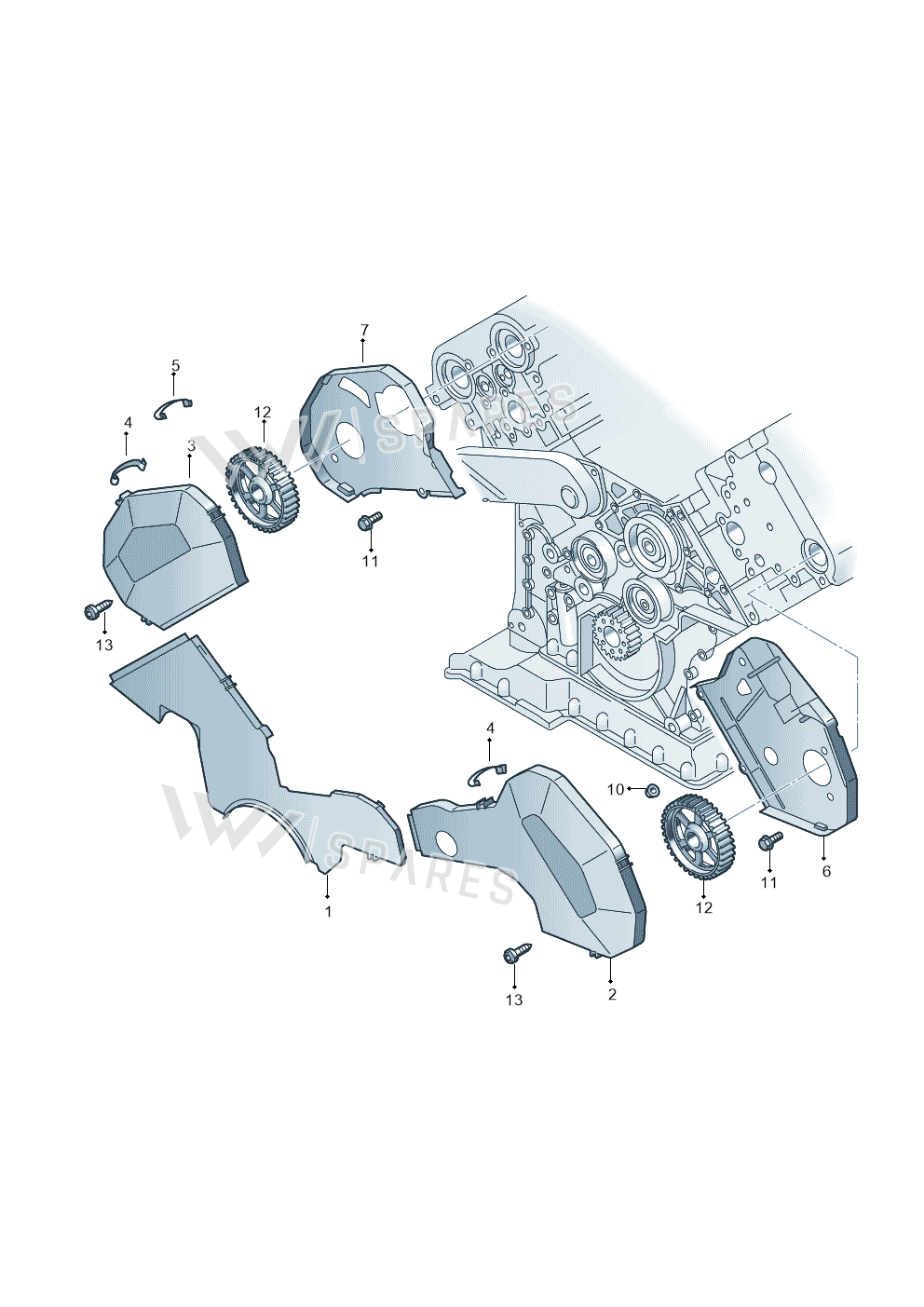

Toothed Belt Guard exploded parts diagram — Touareg · 2005-2006, position 6
Exploded view
Touareg · 2005-2006 · position 6Full diagram ↓
077109098B

077109098B Toothed Belt Guard

£37.20
£30.74 excl. VAT
Supersession roadoldest to newest
  1. 077109098BThis pageNot stocked
    Jul 2009
  2. 077109098CDiscontinued
    Mar 2021
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

7 vehicles

Toothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.

LThis part is the Left side

Parts in this assembly6
Vehicle fitment table7

Europe (6)

VehicleYearsPos.QtyRemarkPR
Touareg2005-200661T88
Touareg2003-200561T88
Audi A6/Wagon/quattro2001-200471ASGD0F
Audi A8 quattro1999-200271
AUDI A81998-200271
Audi A6/Av.qu.F4B-W->1997-200171ARS,ASG

Platform / generic diagrams (1)

VehicleYearsPos.QtyRemarkPR
7L6 platform61

Diagrams & fitment data powered by oemdiagrams.com

Toothed Belt Guard is fitted on: Touareg 2005-2006; Touareg 2003-2005; Audi A6/Wagon/quattro 2001-2004; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A6/Av.qu.F4B-W-> 1997-2001; 7L6 platform.
