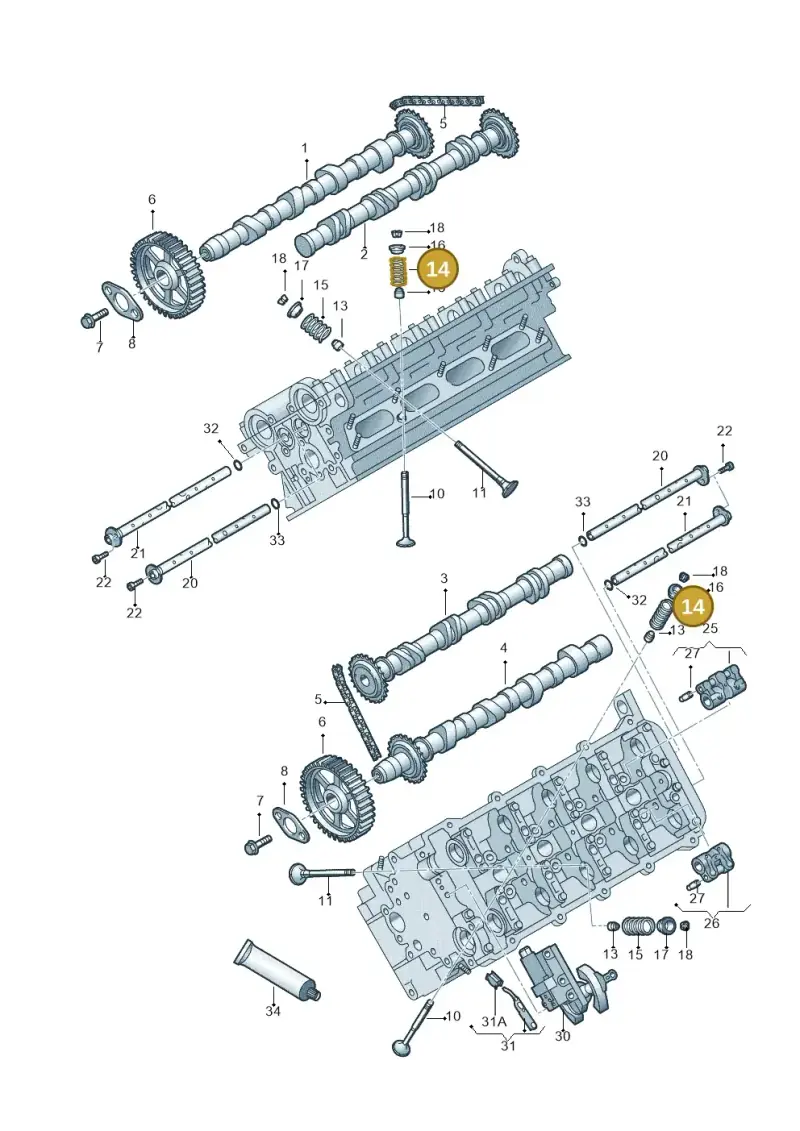

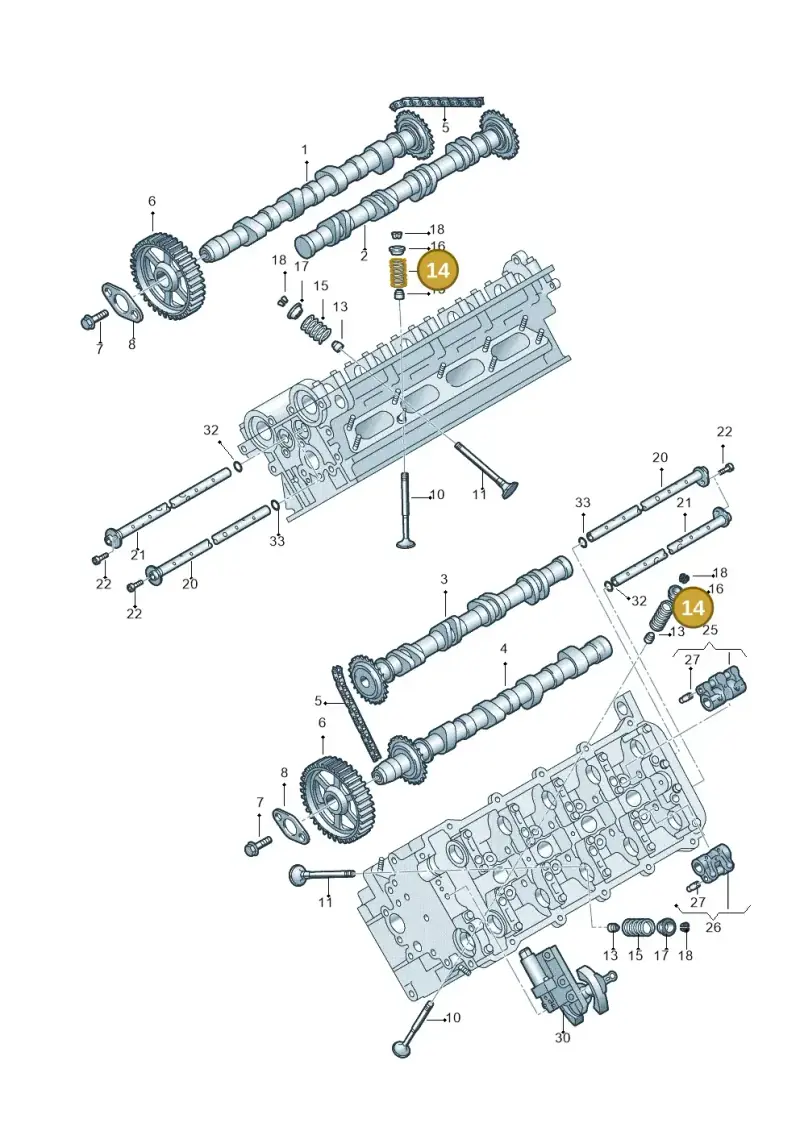

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Valve Spring, part number 077109633E. This valve spring is a critical component of the engine's valvetrain, responsible for closing the intake and exhaust valves. It is located within the cylinder head assembly. The spring has dimensions of 0.045m in length, 0.025m in width, and 0.025m in height. Genuine OEM valve springs are manufactured with precise tension and durability to ensure correct valve operation and engine performance.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 73202081
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.5 × 2.5 × 2.5 cm
- Shipping weight
- 0.03 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
10 vehiclesValve Spring — locate 077109633E Volkswagen Valve Spring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Camshaft 077109022EM
- 2Camshaft 077109021GM
- 3Camshaft 077109021GK
- 4Camshaft 077109022EL
- 5Timing Cha 058109229B
- 6Pulley 078109111B
- 7Bolt N90738202
- 8Washer 078109149
- 8Washer WHT001322
- 10Valve 077109601Q
- 11Valve 077109611S
- 13Seal 036109675A
- 15Spring 077109623C
- 16Springseat 077109641G
- 17Springseat 077109641H
- 18Cotter Pin 036109651A
- 20Part 077109371D
- 21Part 077109372D
- 22Screw N91084801
- 25Roller Roc 077109417J
- 26Roller Roc 077109417K
- 27Comp Piece 077109320CB
- 31Gask Set 077198217
- 31AGasket 049103491
- 32Seal Ring 077133287A
- 33Seal Ring 077133287B
- 34Seal Comp AMV18800102
Vehicle fitment table10
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 14 | |||
| phaeton 4motion | 2008-2010 | 14 | |||
| PHAETON 08> | 2007- | 14 | |||
| Touareg | 2005-2006 | 14 | |||
| Audi A8/S8/qu. lang | 2003-2007 | 14 | 24 | D0G | |
| Phaeton (lang) | 2003-2006 | 14 | |||
| Touareg | 2003-2005 | 14 | |||
| Audi A6/Wagon/quattro | 2001-2004 | 14 | 24 | ||
| Audi A6 Allroad qu. | 2000-2005 | 32 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 7L6 platform | 14 |
Diagrams & fitment data powered by oemdiagrams.com
077109633E Volkswagen Valve Spring | Genuine OEM is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Touareg 2005-2006; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; 7L6 platform.
