077115143 Centre Sleeve
- 077115143This pageNot stocked
Nov 2005 - 077115143DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

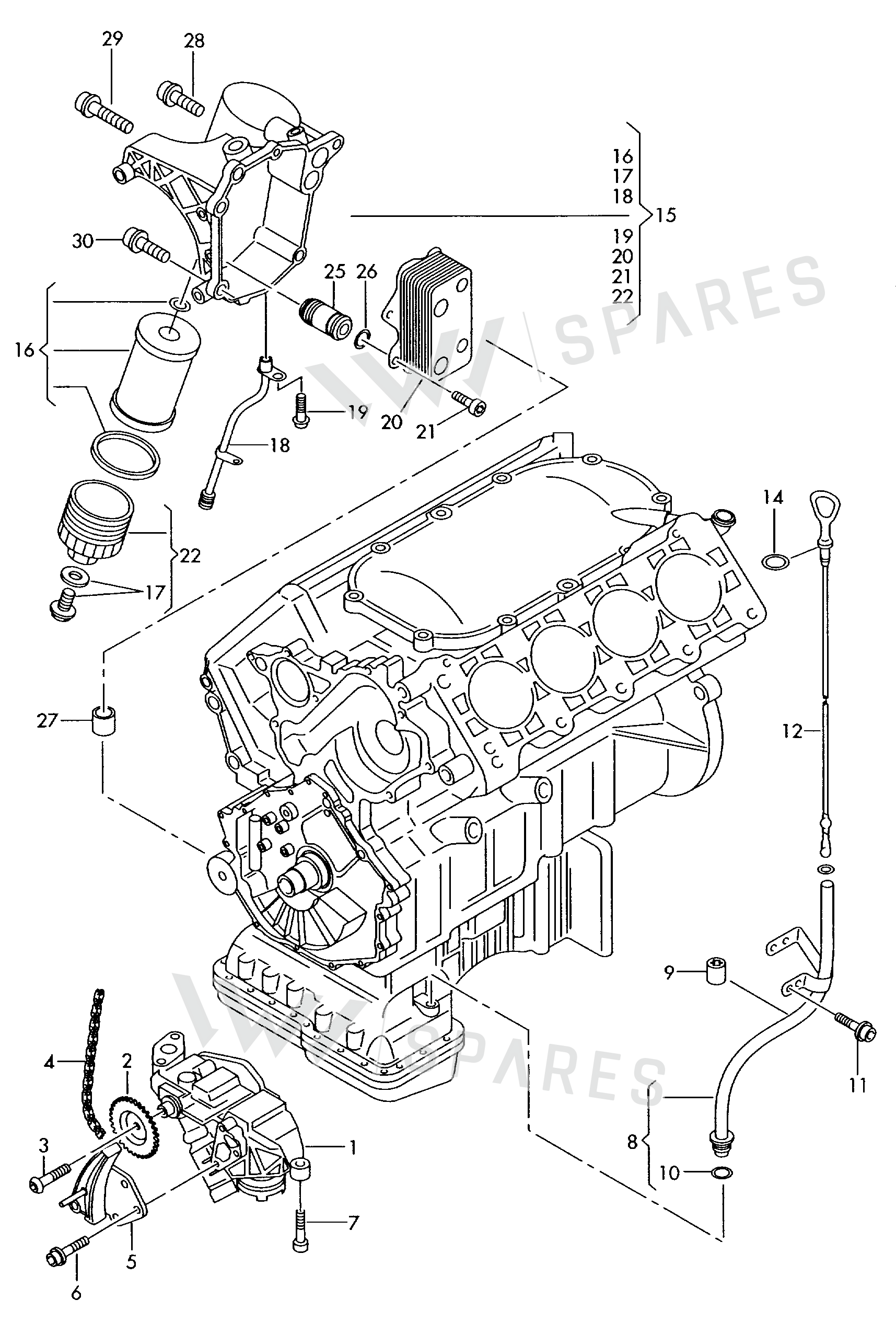

8 vehiclesCentre Sleeve — locate Centre Sleeve in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Oil Pump 057115105B
- 2Chn Sprckt 057115121A
- 3Screw N10468701
- 4Chain 06C115230
- 5Tensioner 057115124B
- 6Screw N90857801
- 7Screw N10227803
- 8Tube 057115609B
- 9Hose 057103657
- 10Seal Ring 034115427B
- 11Screw N0147404
- 12Oil Dipsti 057115611A
- 14Seal Ring 034115625B
- 15Bracket 057115401B
- 16Filterelem 057115562
- 17Bolt 021115434
- 18Water Pipe 077121486A
- 19Screw N10189601
- 20Oil Cooler 077117021Q
- 21Screw N90590901
- 22Housing 021115433B
- 25Water Pipe 077117411A
- 26Seal Ring 077121437
- 28Screw N10468801
- 29Screw N0447553
- 29Screw N90310002
- 30Screw N90331604
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 quattro | 1999-2002 | 27, 39, 5, 7 | 2 |
| AUDI A8 | 1998-2002 | 39, 5 | 2 |
| Audi A8 | 1996-1998 | 2, 5 | 2 |
| Audi A8 qu. | 1996-1998 | 2, 5 | 2 |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 2, 5 | 2 |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 2, 5 | 2 |
| Audi 100/Wagon qu. | 1992-1994 | 2, 5 | 2 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 7L6 platform | 13, 5, 3 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Centre Sleeve is fitted on: Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A6/S6/Wagon qu. 96 1995-1996; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi 100/Wagon qu. 1992-1994; 7L6 platform.
