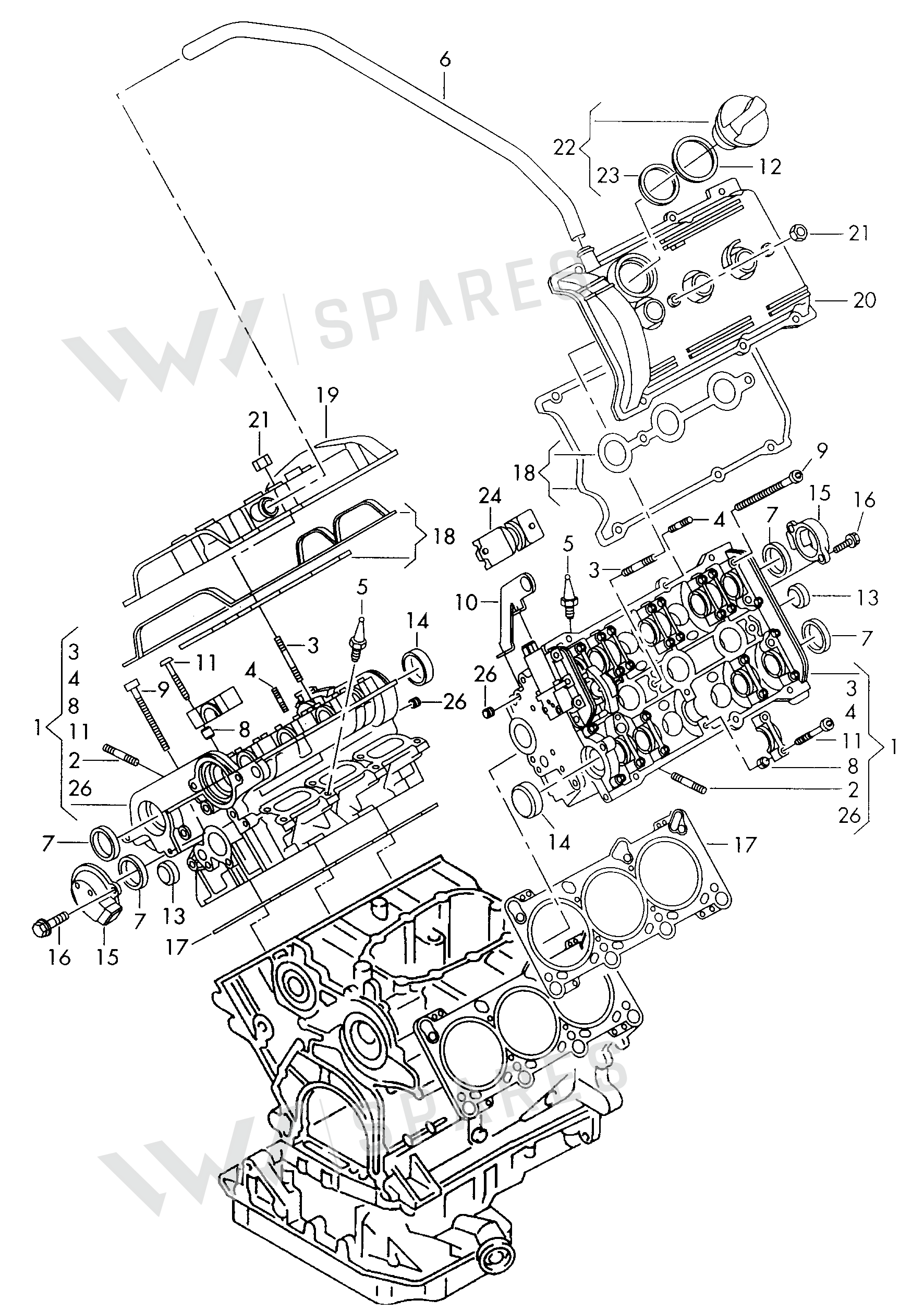

Cylinder Head Gasket exploded parts diagram — Audi A8 · 1996-1998, position 17
Exploded view
Audi A8 · 1996-1998 · position 17Full diagram ↓
078103383H

078103383H Cylinder Head Gasket

£17.80
£14.71 excl. VAT
Supersession roadoldest to newest
  1. 078103383HThis pageNot stocked
    Sep 1997
  2. 078103383LNot stocked
    Nov 2003
  3. 078103383RDiscontinued
    May 2020
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

Cylinder Head Gasket — locate Cylinder Head Gasket in the official exploded view and explore the surrounding assembly.

Parts in this assembly25
Vehicle fitment table8

Europe (8)

VehicleYearsPos.Qty
Audi A81996-1998172
Audi A8 qu.1996-1998172
Audi A6/S6/Wg.qu.F>4A1996-1997172
Audi A6/Wagon F >4A-W1996-1997172
Audi A4 F>8D-W-..1995-1997172
Audi A4 qu. F>8D-W-..1995-1997172
Audi A6/Wagon 961995-1996172
Audi A6/S6/Wagon qu. 961995-1996172

Diagrams & fitment data powered by oemdiagrams.com

Cylinder Head Gasket is fitted on: Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996.
