078105229C 12-Point Head Bolt
- 078105229CThis pageNot stocked
Feb 1996 - 078105229DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

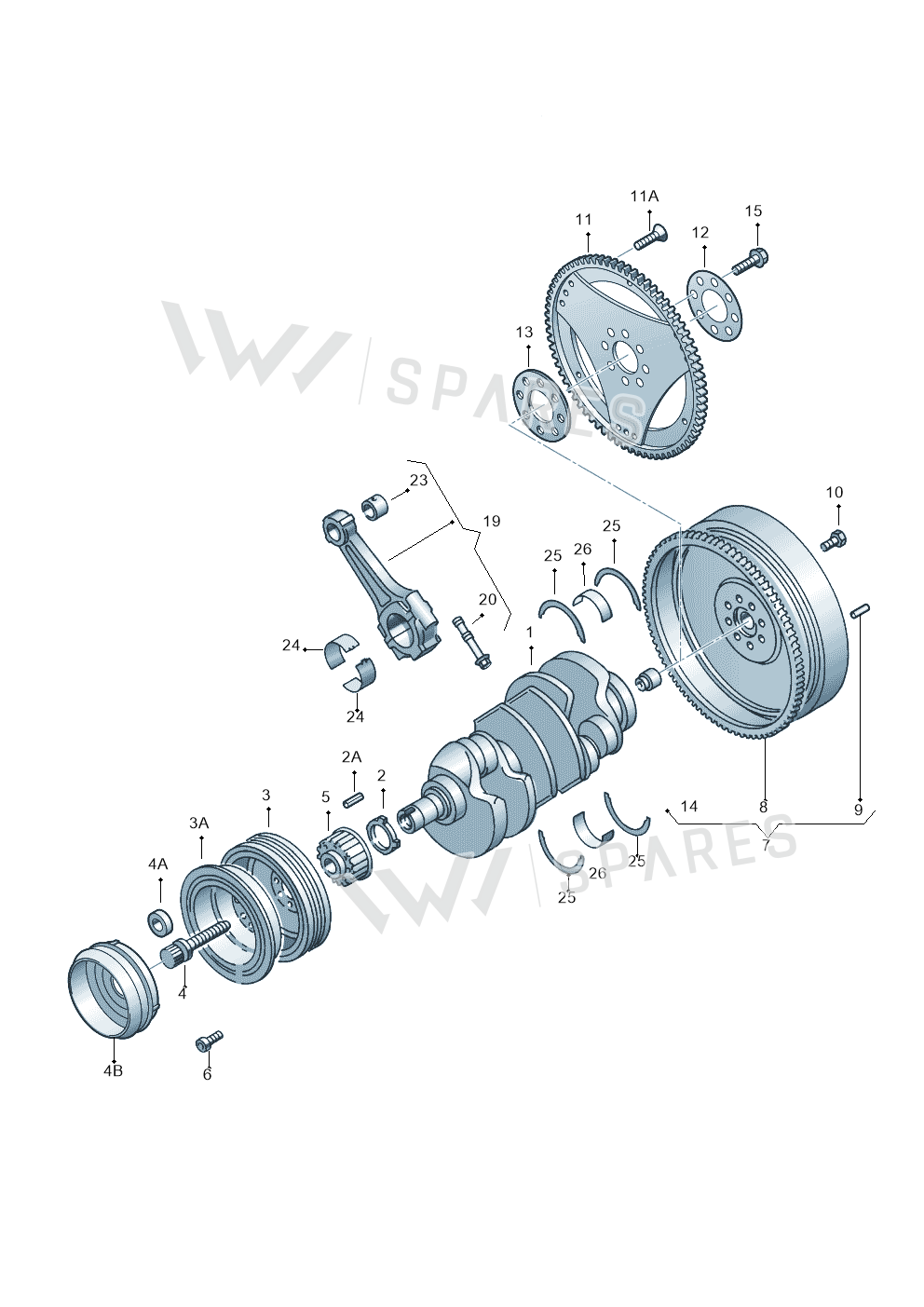

10 vehicles12-point Head Bolt — locate 12-Point Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Crankshaft 078105101AG
- 1Crankshaft 078105101AF
- 2Drive For 034105177
- 3Damper 078105251C
- 3Pulley 078105255D
- 3ADamper 078105251F
- 4Bolt 078105229D
- 5Pulley 078105263B
- 6Screw N01471015
- 7Flywheel 078105201C
- 7Flywheel 078105266D
- 9Cylinder Pin N0132102
- 10Bolt N90206103
- 10Bolt N90705901
- 11Clutch Pla 078105323B
- 11Clutch Pla 078105323A
- 12Shim 035105303A
- 13Washer 054105303
- 13Washer 054105301
- 14Bush 054105329
- 14Bearing 034105313A
- 15Bolt N90946201
- 19Con Rod 078198401C
- 20Bolt 078105425E
- 23Bush 077105431
- 24Bearing 078105701N
- 25Thrust Pla 078198421
- 26Bearing 057198491
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Coupe quattro/3 96 | 1995-1995 | 4 | 1 | |
| Audi A6/Wagon 95 | 1994-1995 | 4 | 1 | |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 4 | 1 | |
| Audi 90 | 1993-1995 | 4 | 1 | |
| Audi 100/Wagon 94 | 1993-1994 | 4 | 1 | AAH,ACZ,ABC |
| Audi 90 qu. | 1992-1994 | 4 | 1 | |
| Audi 100/Wagon qu. | 1992-1994 | 4 | 1 | |
| Audi 100/Wagon 92 | 1991-1992 | 4 | 1 | |
| Audi Coupe qu. | 1989-1991 | 4 | 1 | |
| AUDI COUPE/3 | 1988-1994 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
12-Point Head Bolt is fitted on: Audi Coupe quattro/3 96 1995-1995; Audi A6/Wagon 95 1994-1995; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi 90 1993-1995; Audi 100/Wagon 94 1993-1994; Audi 90 qu. 1992-1994; Audi 100/Wagon qu. 1992-1994; Audi 100/Wagon 92 1991-1992; Audi Coupe qu. 1989-1991; AUDI COUPE/3 1988-1994.
