078109633 Valve Spring
- 056109633BNot stocked
Dec 1991 - 078109633This pageNot stocked
Dec 1992 - 078109633ADiscontinued
Mar 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

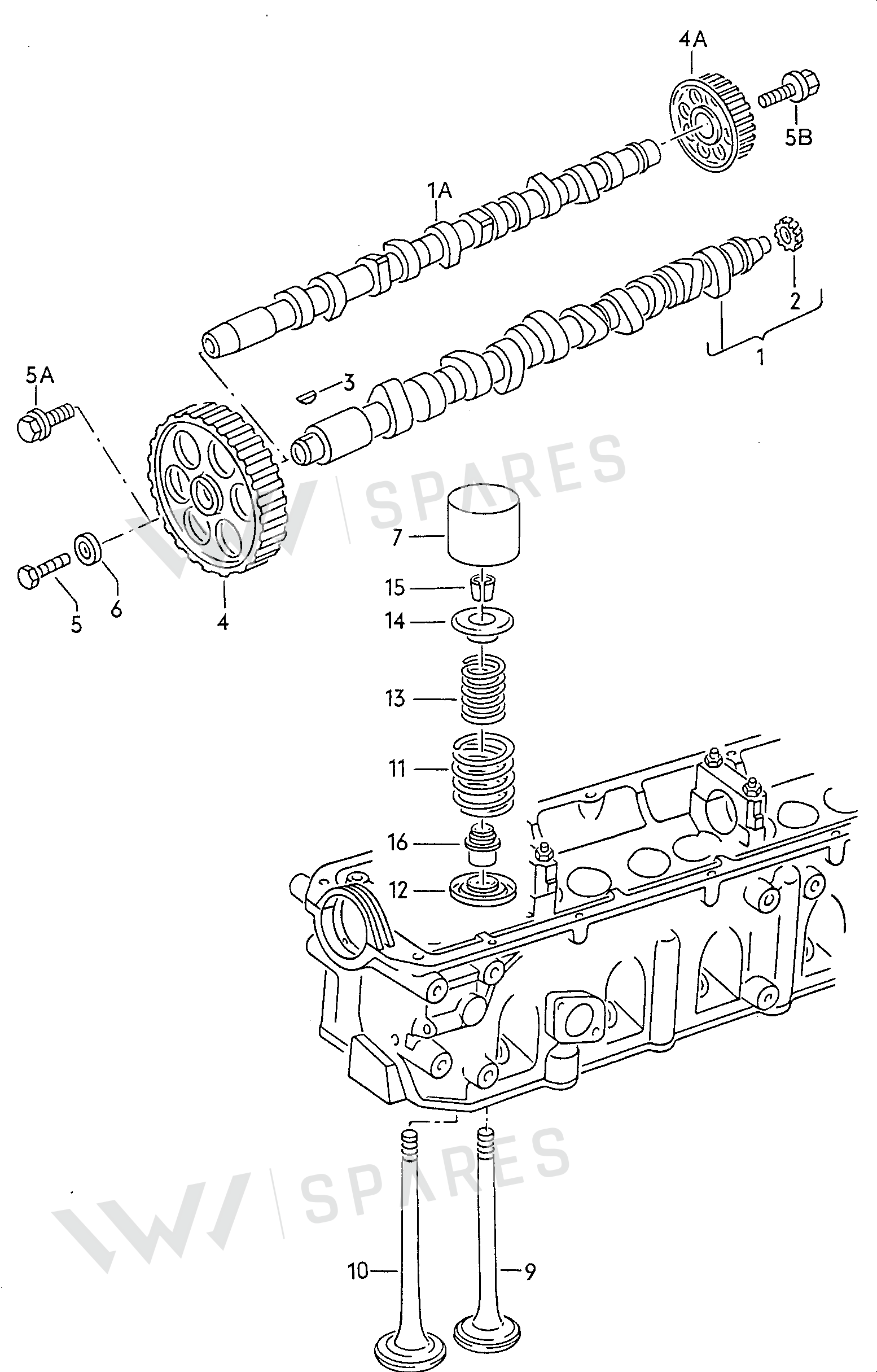

9 vehiclesValve Spring — locate Valve Spring in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Camshaft 034109021K
- 2Drivewheel 035109109
- 3Spring N0127082
- 4Pulley 049109111C
- 5Bolt N0101371
- 6Washer 056109143
- 7Tappets 034109309AD
- 9Valve 048109601A
- 9Valve 035109601K
- 10Valve 053109611
- 11Spring 078109623A
- 12Springseat 056109629A
- 13Spring 078109633A
- 14Springseat 049109641A
- 15Cotter Pin 113109651A
- 16Seal 026109675
Vehicle fitment table9
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 100/Wagon qu. 92 | 1991-1992 | 13, 14, 12 | X | |
| Audi 4000 S | 1984-1987 | 13 | 10 | |
| AUDI COUPE QUATTRO/2 | 1984-1987 | 13 | X | |
| Scirocco | 1983-1989 | 13 | 16 | |
| Audi 4000 | 1979-1981 | 12 | 8 | |
| Audi Fox | 1976-1978 | 27 | 8 | ZA,ZF,YN,YT, |
| POLO,DERBY,AUDI 50 | 1974-1981 | 27A | HA,HE | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 27A | HA,HE |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Rabbit | 1974-1976 | 40 | 8 | FB,FD,FH,FK, |
Diagrams & fitment data powered by oemdiagrams.com
Valve Spring is fitted on: Audi 100/Wagon qu. 92 1991-1992; Audi 4000 S 1984-1987; AUDI COUPE QUATTRO/2 1984-1987; Scirocco 1983-1989; Audi 4000 1979-1981; Audi Fox 1976-1978; POLO,DERBY,AUDI 50 1974-1981; Rabbit 1974-1976.
